4400 Ultra Track Aluminum Extrusion - Select Length

4400 Ultra Track Aluminum Extrusion - Select Length

Regular price $ 23.99
Regular price Sale price $ 23.99
Sale Sold out
Length

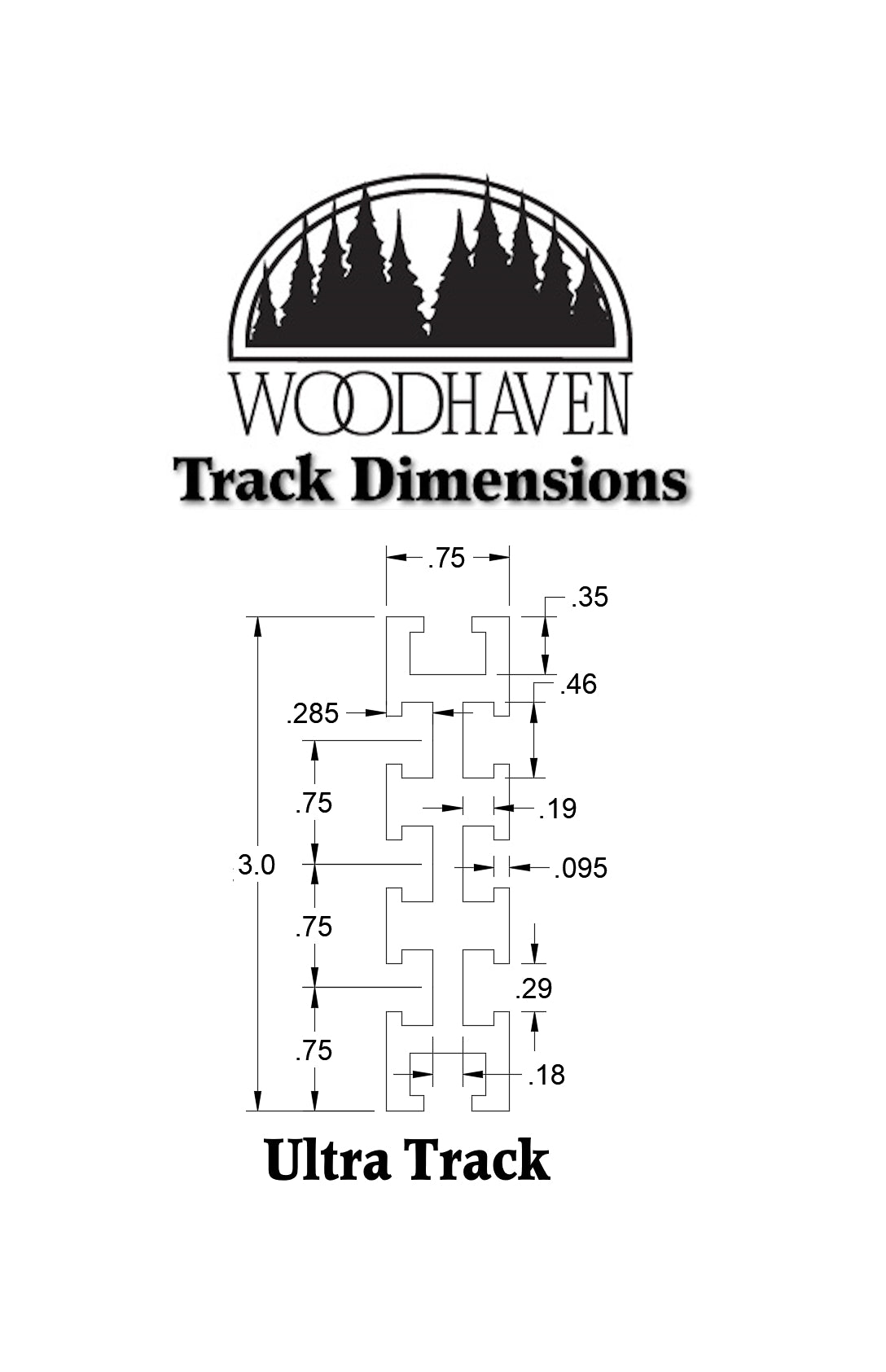

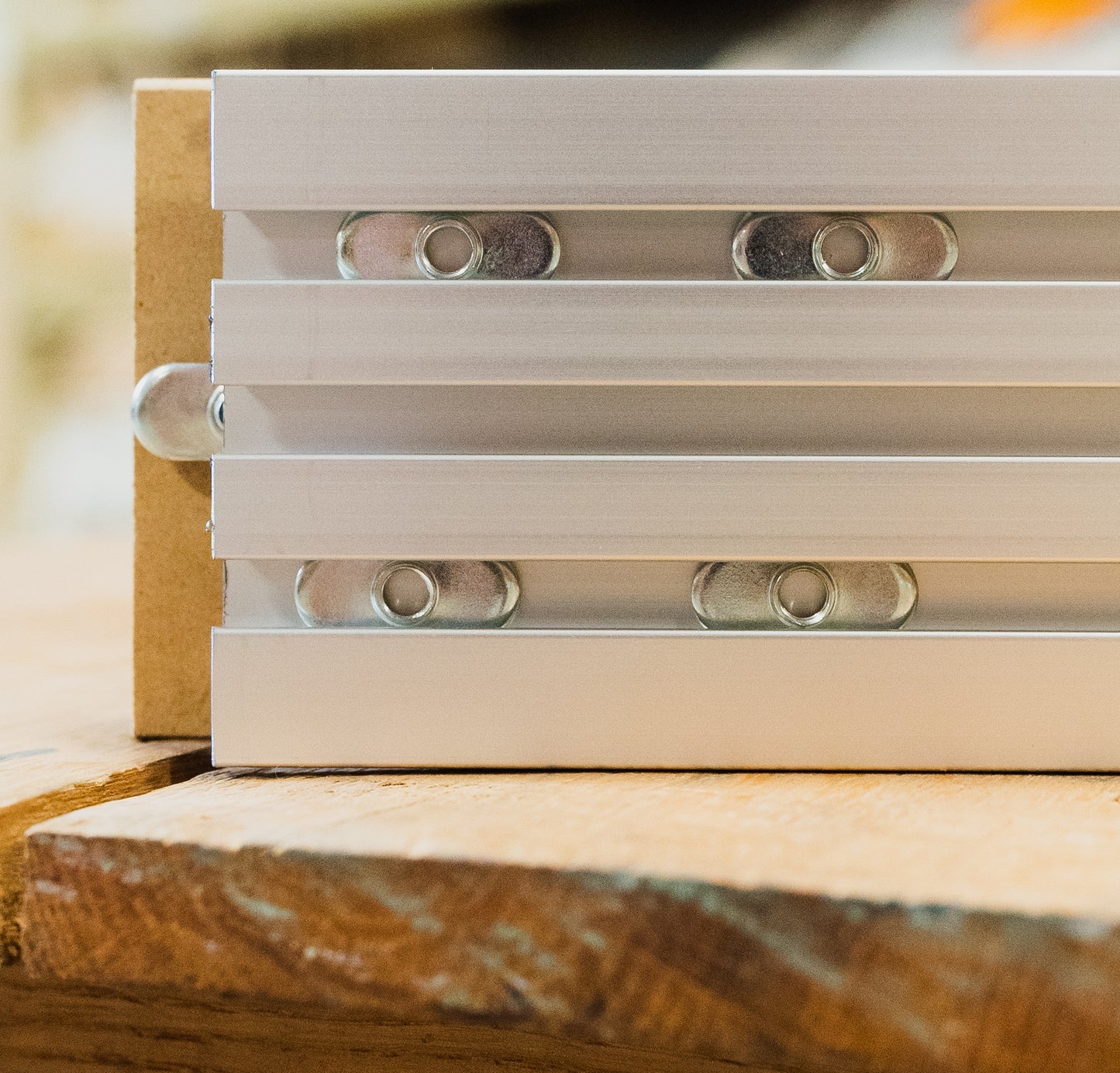

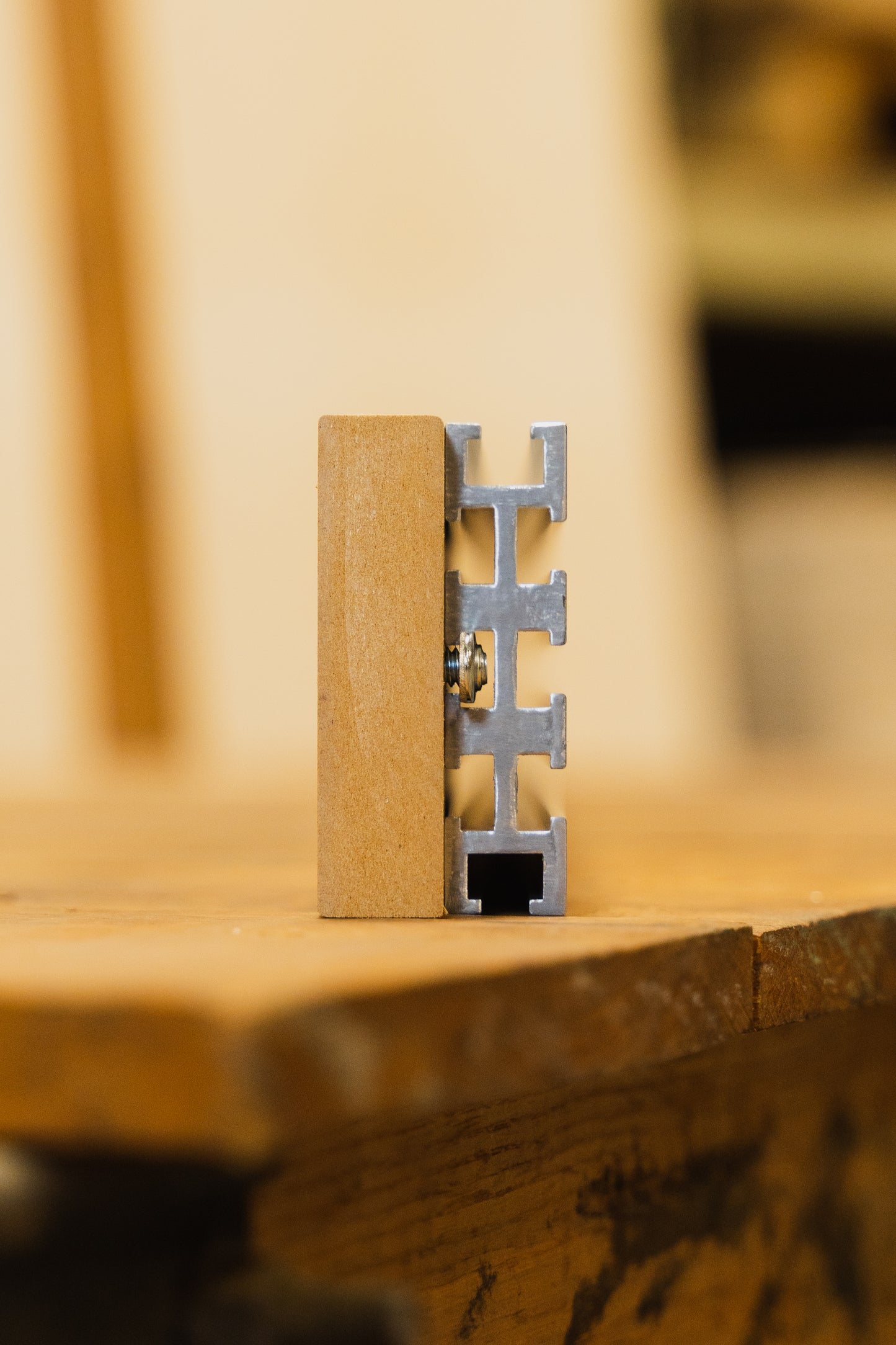

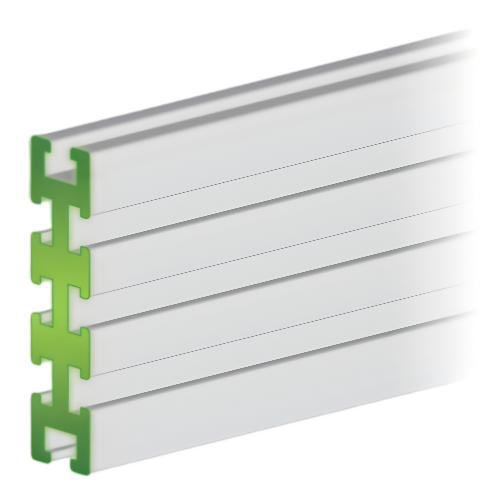

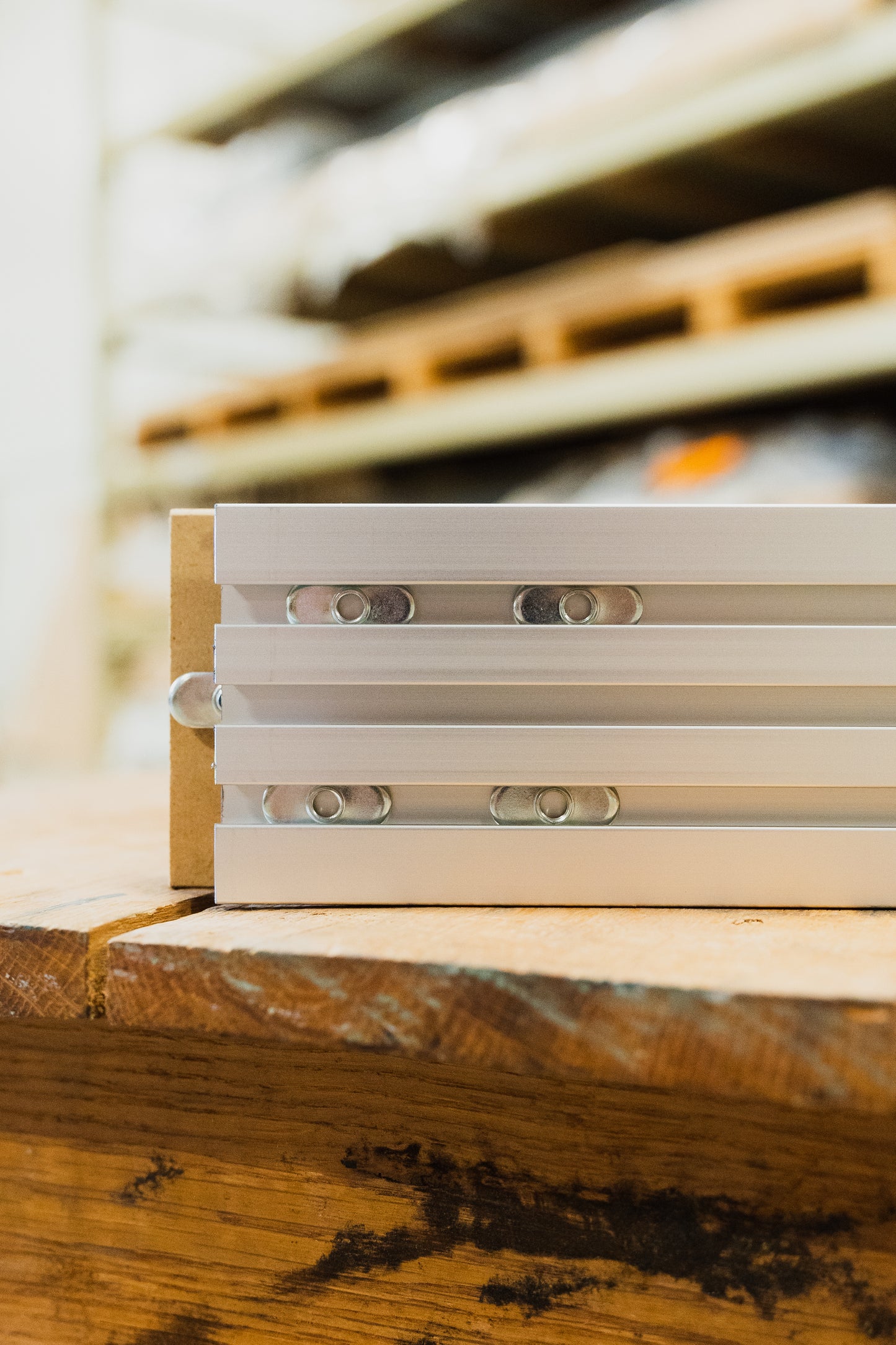

The Ultra Track extrusion has 8 T-slots, one each on top & bottom and 3 on each face located 3/4" & 1-1/2" from the edge. It measures 3/4" thick and 3" high and provides an unlimited variety of quick and easy mounting and adjustment options for stops, hold-downs, etc. Anodized aluminum for strength and durability. Ultra track works great as a miter gauge, router, table saw, chop saw, radial arm saw or shaper fence.  Add our Fence Face is you need a sub-fence.  The T-slots are sized to capture the hex head of a standard 1/4" bolt or our oval nuts. These tracks are the most versatile jig building accessories you can use in your shop. Note: the top on T-bolts is too wide to fit in this track without grinding the sides of the bolt head.  95" is the max length we can ship.

    • Ultra Track
    • 3" height x 3/4" width
    • 8 T slots
    • Versatile jig building accessory
    • Custom lengths available - Call to order
    • For a complete Table Saw Fence Kit see our 4310
    • For a complete Miter Saw Fence & Flip Stop kit see our 4902, 4903 or 4904

All products are Made in the USA and have a lifetime guarantee against defects in material or workmanship! For product questions or to quote shipping outside the continental US call 800-344-6657 or email info@Woodhaven.com

View full details

Customer Reviews

Based on 14 reviews
86%
(12)
14%
(2)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous

Solid build and flatness.

D
Dean

Rebuilding a 50 yr old Craftsman table saw. The fence has a sheet metal cover that was bowed at each end. I strapped this on using the factory holes and realigned the fence with the miter slots. It is dead on flat. I was not wanting to buy a new fence for $3-4 times what I paid for the saw. I can see more of these for the band saw and maybe the drill press?

R
Richard

Good product. Exactly as advertised. Straight and flat. Packaged well. Quick shipping. Thanks

l
les

Put one on my Saw Stop. I used only 4 fasteners to attach it to the SS tube. I needed to elongate those 4 slots. I also needed to shorten the 1/4"x3/8" cap head screws by around 1/64 as the tips of the screws were bottoming.

The track sits perpendicular to the table top and flat along it's length (when installed) to around 2 thou.

Highly recommended for this application.

C
Christopher

Used as a fence for my PCS sawstop. Worked great nice and straight. And now can add jigs easy.
