Flush Trim Baseplate for Compact Routers

Woodhaven Flush Trim Baseplate – Trim Edge Banding with Precision

Make trimming edge banding fast, clean, and accurate with the Woodhaven Flush Trim Baseplate. Designed for compact routers, this extra-wide baseplate provides superior stability and control—helping you achieve flawless, flush results every time.

Crafted from a 10mm (0.394") thick phenolic plate, the base measures 5-3/4" wide × 11-3/4" long for maximum support. A CNC-machined relief area around the router mounting zone is 5/32" deep, allowing clearance for anything up to 1/8" above the panel surface—perfect for trimming edge banding, laminates, or veneers.

Just set your flush trim bit a few thousandths above the surface, and you're ready to go—no tear-out, no fuss.

Key Features:

• Trim edge banding flush with unmatched stability and control
• Thick 10mm phenolic base minimizes tilt and chatter
• CNC-machined relief clears material up to 1/8" above panel face
• Extra-wide footprint supports router fully over the workpiece
• Ideal for vertical router orientation—virtually eliminates chip-out

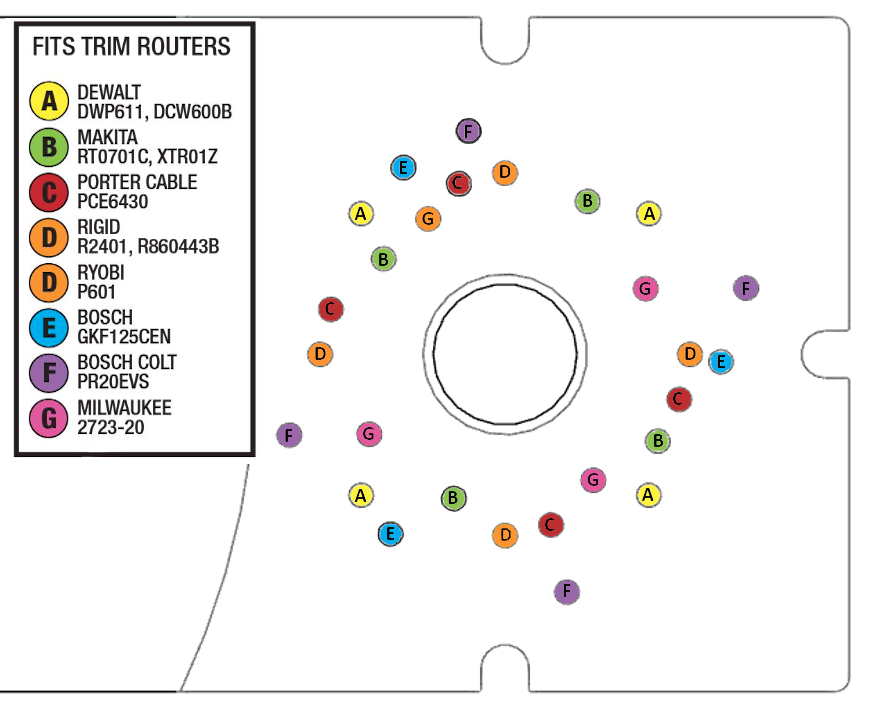

• Pre-drilled for popular compact routers, including:
  • Bosch: Colt PRO10E, PR20EVS, GKF125CEN
  • Ridgid: R2400, 2401, 24012, R860443B
  • Ryobi: P601
  • DeWalt: DWE600, DW611, DWP611, DCW600
  • Porter-Cable: 450
  • Makita: RT0701C, XTR01Z, DRT50ZX4, MLCS & Kreg Ionic
  • Milwaukee: M18
