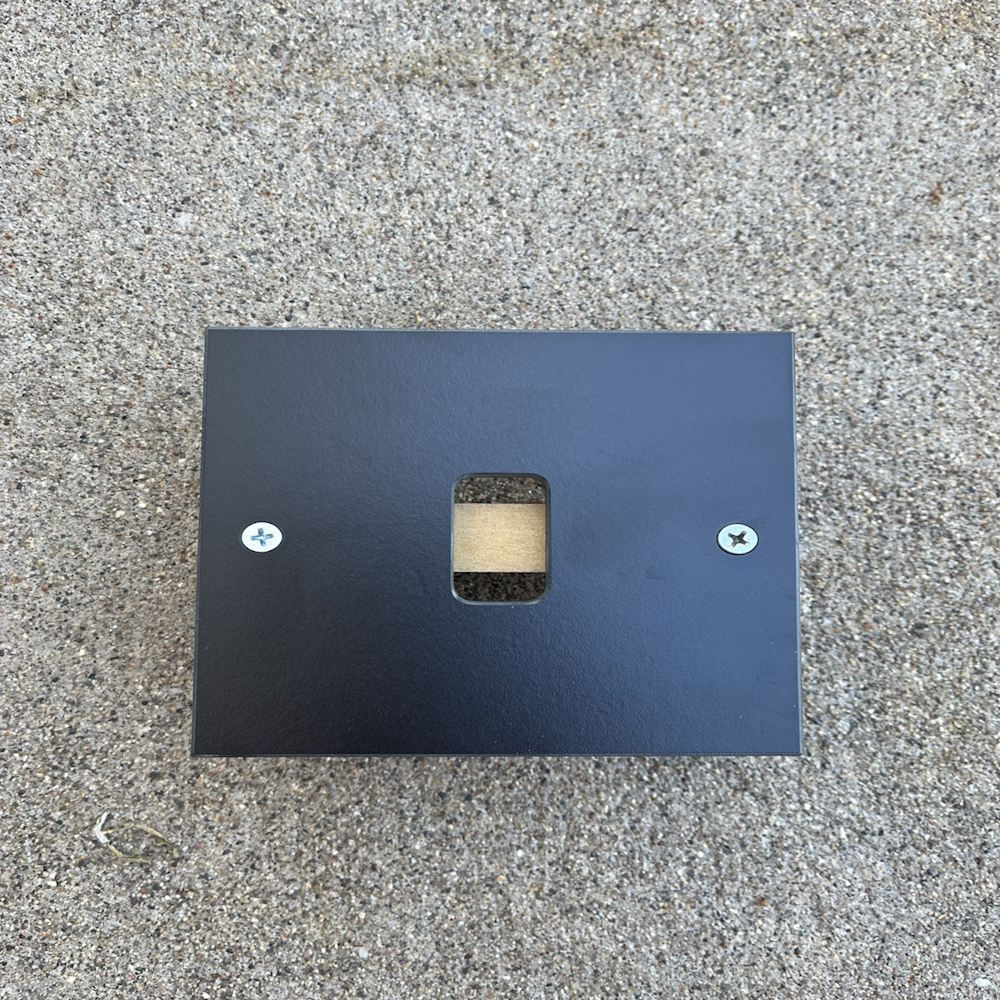

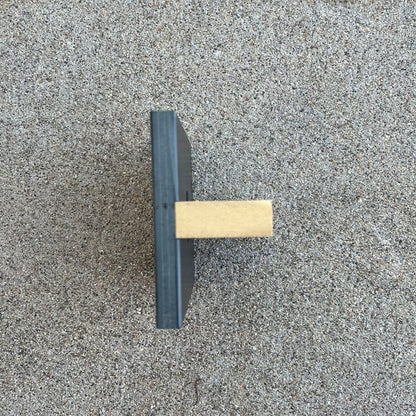

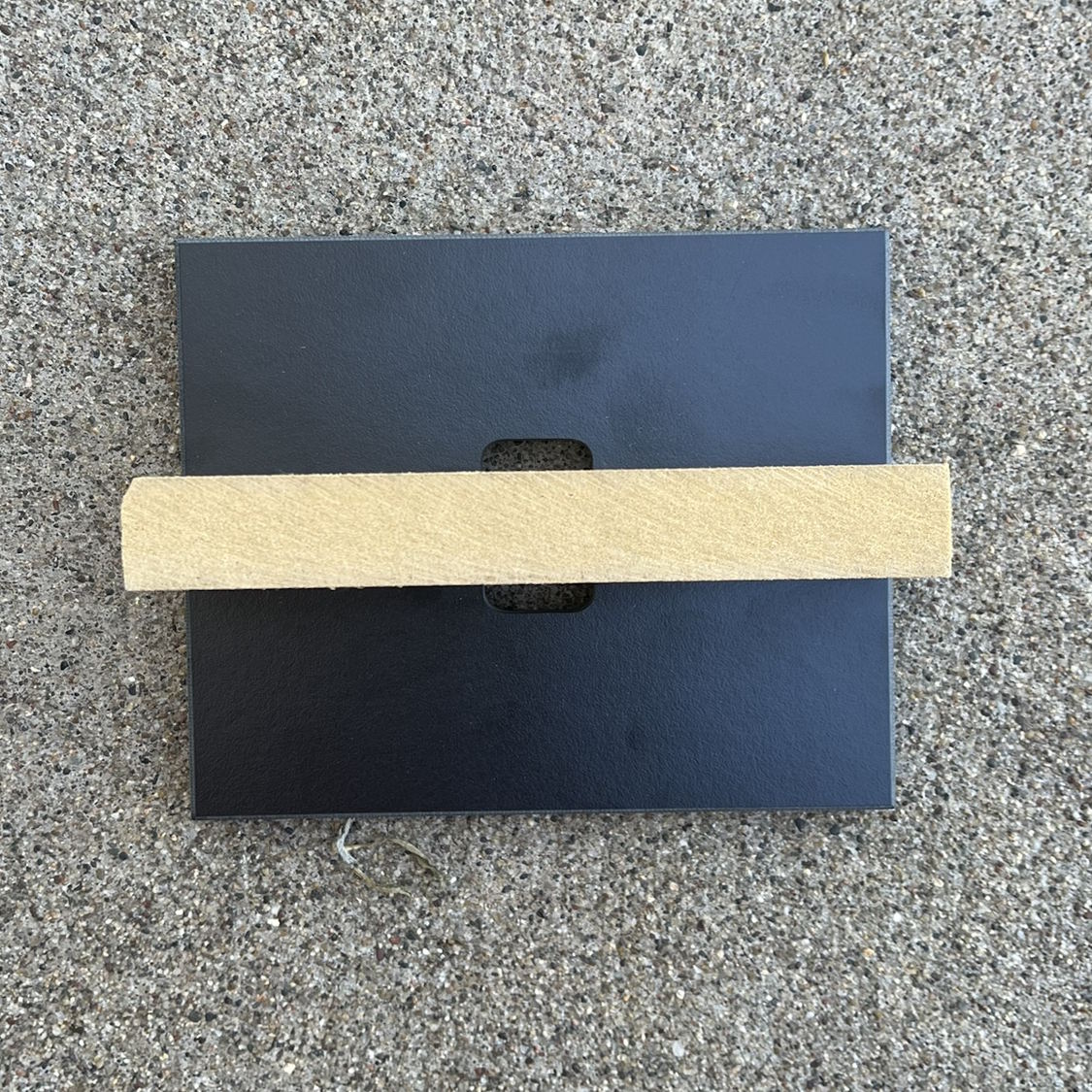

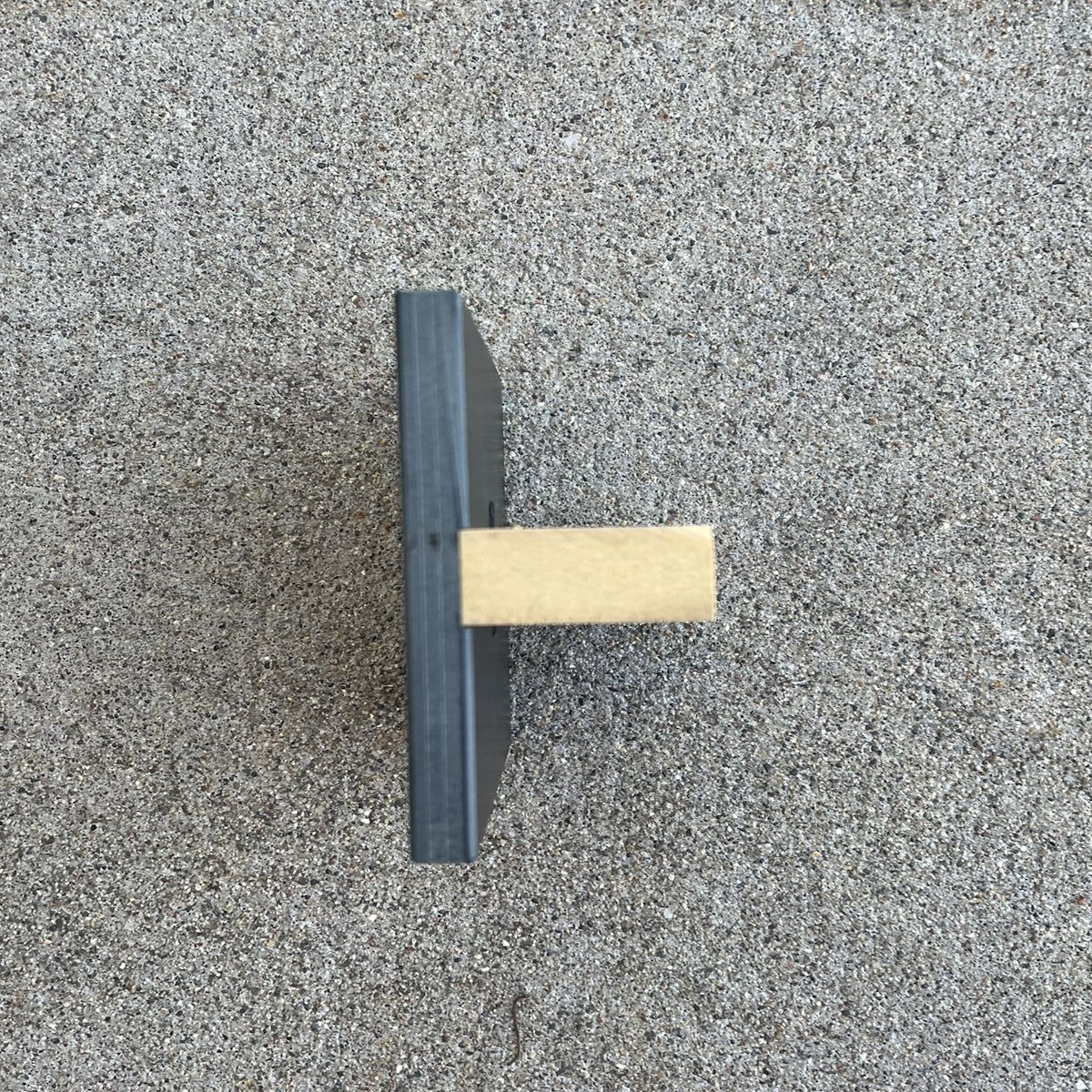

Our Busso Hinge Jigs are the easiest and most accurate way to route the required hinge mortises. Uses a bearing guided pattern bit (our 8506 - sold separately), to follow the jig for a perfect mortise. Jigs attaches to a 3/4" wood fence included. The fence provides chip-free cuts and easy indexing. A locating slot on the bottom side of the jig will insure the fence is square on the jig.
|
Template |
Compatible Brusso Hinges |
Hinge Length |
Hinge width |
Mortise width |
|

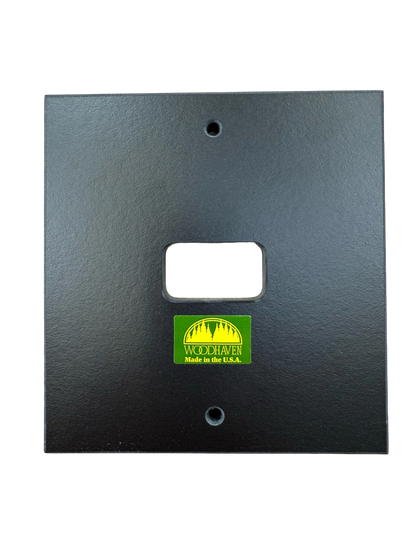

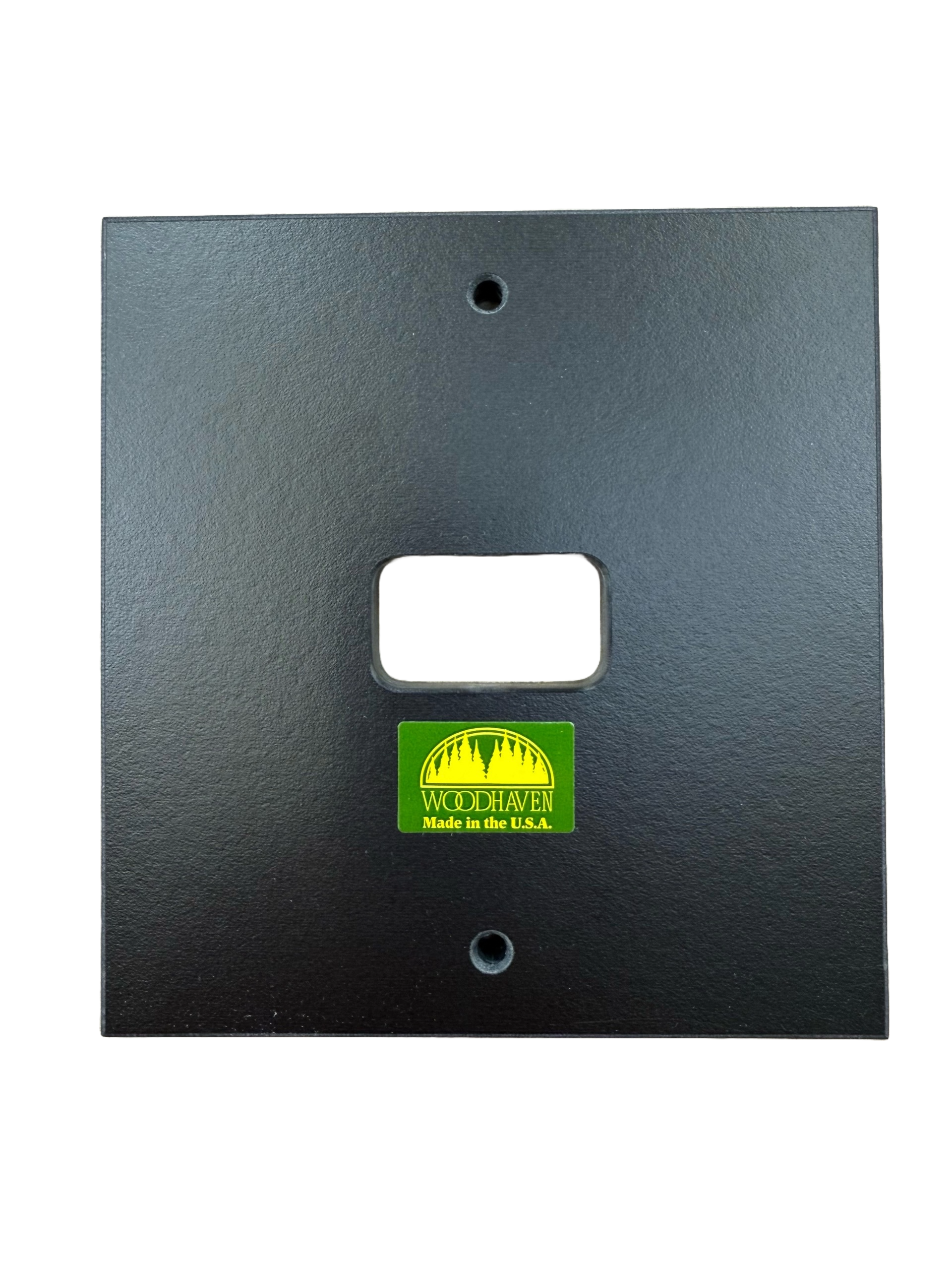

8401 |
JB-101, JB-101S, CB-301, CB-301S, CB-301B, CB-301BS |
3/4" |
1/2" |
0.30" |
|

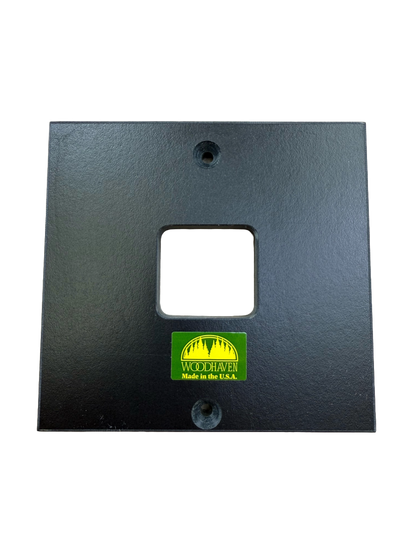

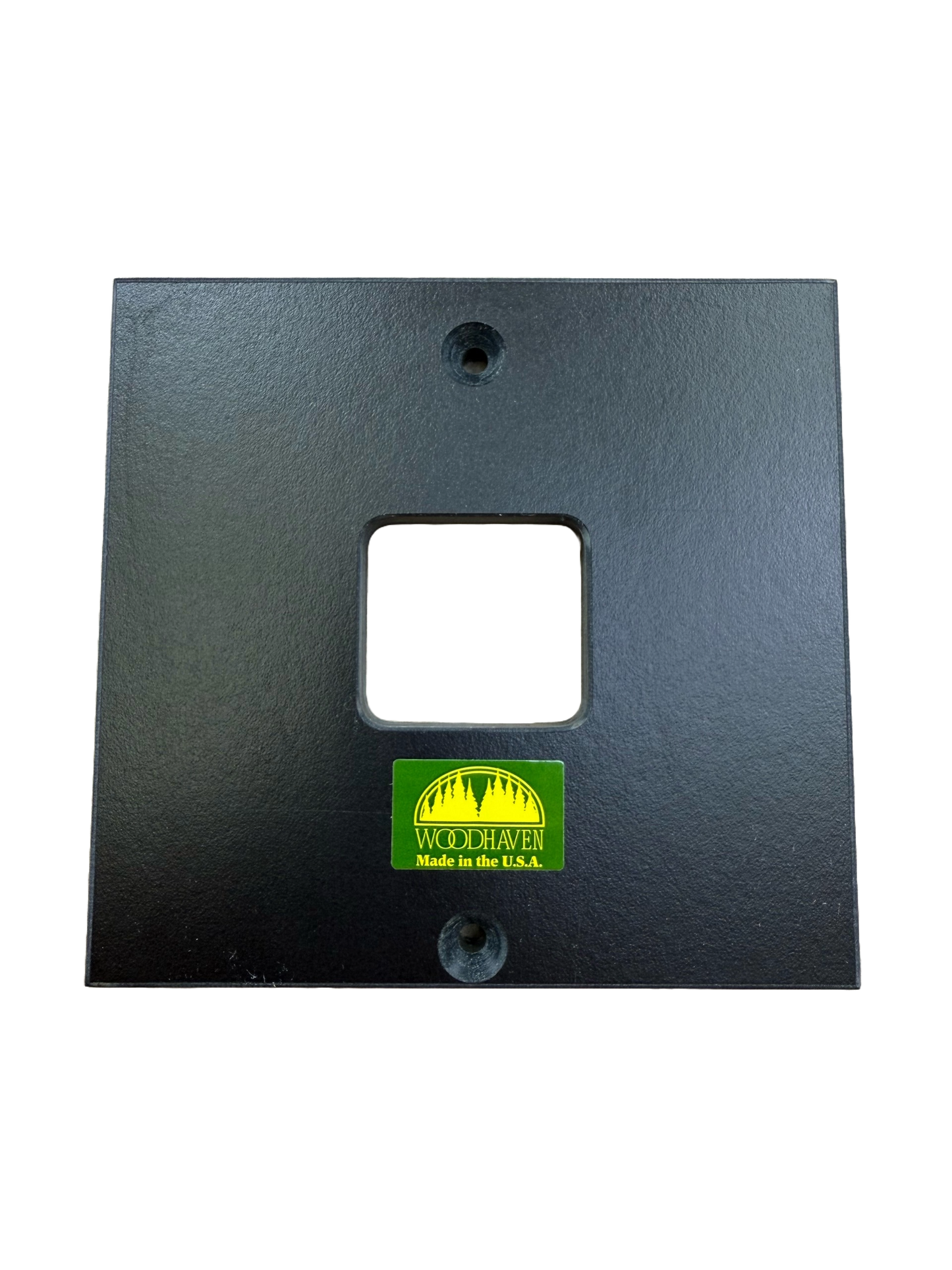

8402 |
JB-102, JB-102S, CB-302, CB-302S, CB-302B, CB-302BS |
1-1/4" |
1/2" |
0.30" |
|

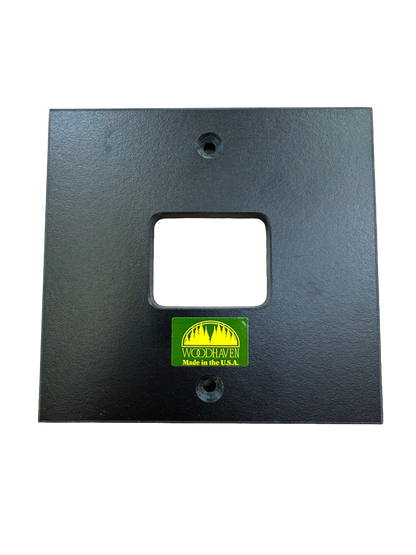

8403 |
JB-103, JB-103S, CB-303, CB-303S, CB-303B, CB-303BS |
1-1/4" |
5/8" |
0.42" |
|

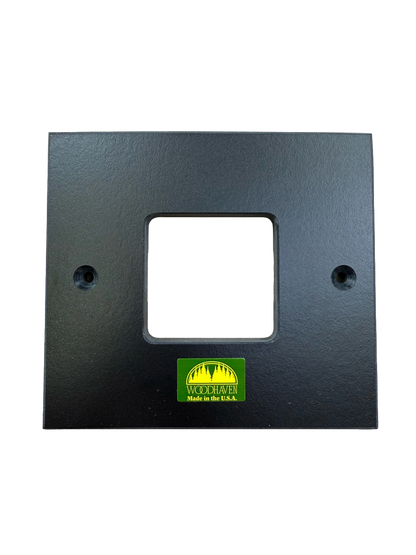

8407 |
JB-107, JB-107S, CB-407, CB-407S, CB-407B, CB-407BS |
2" |
7/8" |
0.59" |
- Fastest, easiest, least expensive and most accurate way to cut a hinge mortise. Clamps to work pieces so there's no nail holes or other unsightly blemishes!
- Made of 3/8" phenolic for heavy duty use, measures 4-3/4" x 4-1/2".
- Four version for the different sizes of Brusso hinges.
Our products are made in the USA and include a Lifetime Guarantee against defects in material or workmanship. For product questions or a quote for shipping outside the continental US contact us by Phone 800-344-6657, Email Info@Woodhaven.com or Chat.
