Custom Invisible Hinge Template
Custom Invisible Hinge Template
No reviews
Regular price
$ 79.99
Regular price
Sale price
$ 79.99
Unit price
/
per

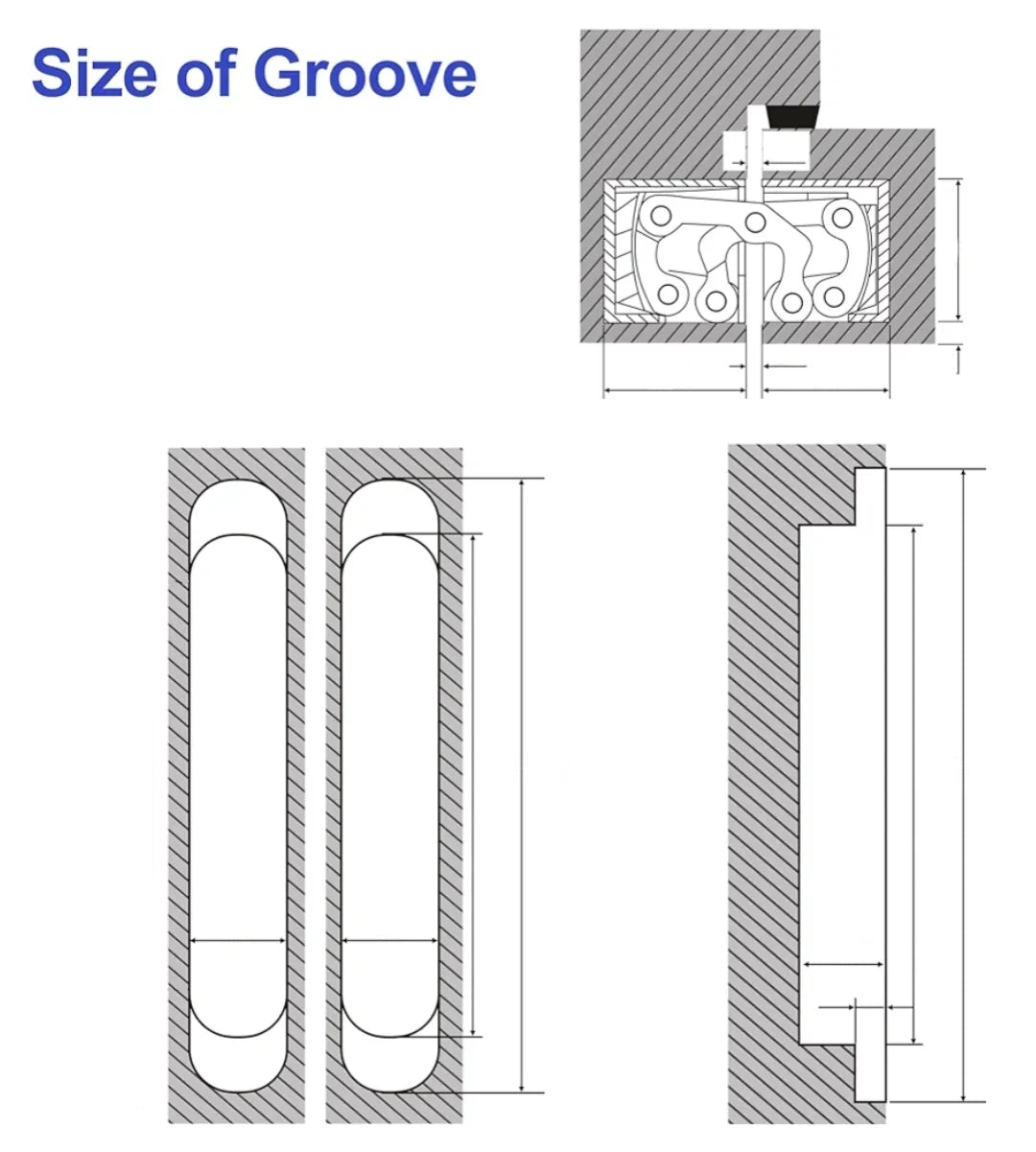

Our Invisible Hinge Jigs are the fastest, easiest and most accurate way to rout the two-step mortises required for these unique hinges. We are introducing a new option in addition to our standard SOSS & Sugatsune templates. We have developed a process to produce our jig for any brand of hinge. The following information is required:
- Length of the long mortise
- Length of the short mortise
- Width of the mortises
- Hinge setback from the edge of the door to the mortises
- If you will be using a 3/8" or 1/2" bit to cut the mortises
Made of 1/2" phenolic for heavy duty use, they measure 5-5/8" x 9-1/4" for maximum router support.
- The 3/8" solid carbide upcut spiral bit (15406 or equivalent, sold separately) requires a 5/8" Bushing & Locknut (5030K or equivalent, sold separately) to cut the mortises. If using your own bushing, make sure the nose isn't over 3/8" long.
- The 1/2" solid carbide upcut spiral bit (15410 or equivalent, sold separately) requires a 3/4" Bushing & Locknut (5032K or equivalent, sold separately) to cut the mortises. If using your own bushing, make sure the nose isn't over 3/8" long.
- Jig clamps to the work (no nail holes) and, using your plunge router, both the long/shallow and short/deep mortises are cut without moving the jig or part. Has two retractable stops for the short/deep mortise.
- Includes an 12" Double Track for mounting the jig and clamping to your work. Clamps not included.
- Optional longer Double Tracks (up to 95" - 4095) available to mount multiple Hinge Jigs.
- Lifetime guarantee against defects in material or workmanship. Made in the USA! For shipping quote outside the 48 States call 563-344-6657 or email Info@Woodhaven.com
