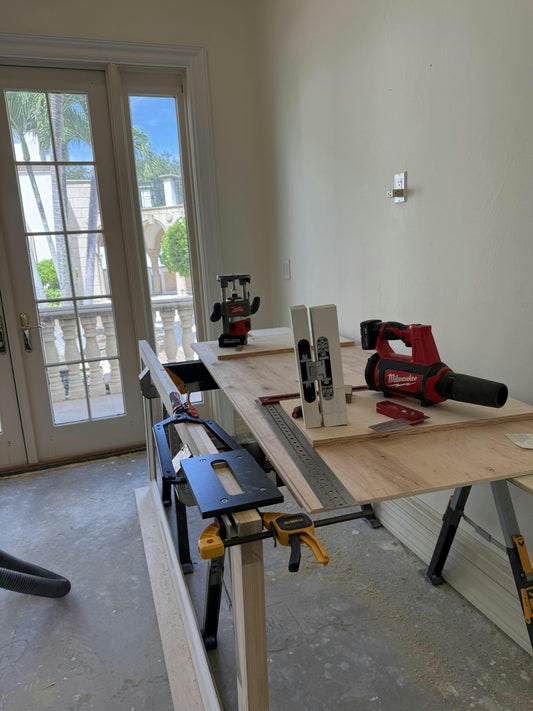

Woodhaven Tectus hinge jig templates take the complexity out of installing Simonswerk Tectus concealed hinges. Tectus hinges require a precise multi-step mortise in both the door and the frame, and the tolerances are tight enough that hand layout and freehand routing are not reliable approaches. The Woodhaven jig handles the geometry for you, guiding your router through each stage of the mortise in a controlled, repeatable sequence.
Templates are available for the most widely used Tectus hinge sizes and are machined from heavy-duty phenolic for long production life. Each jig clamps securely to the workpiece and indexes accurately off the door edge for consistent placement across every door in a project. Made in Durant, Iowa with a lifetime guarantee on manufactured parts.
