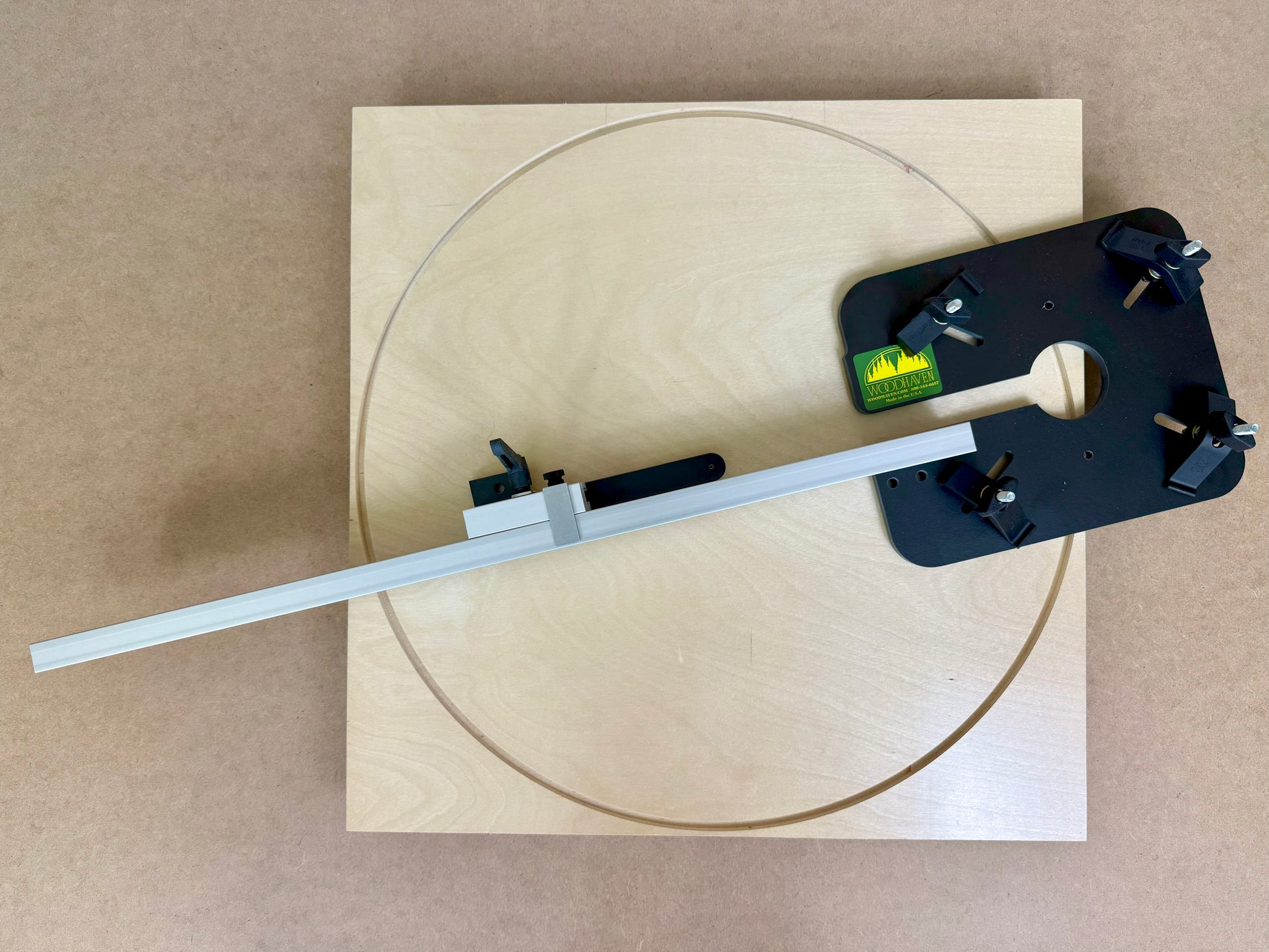

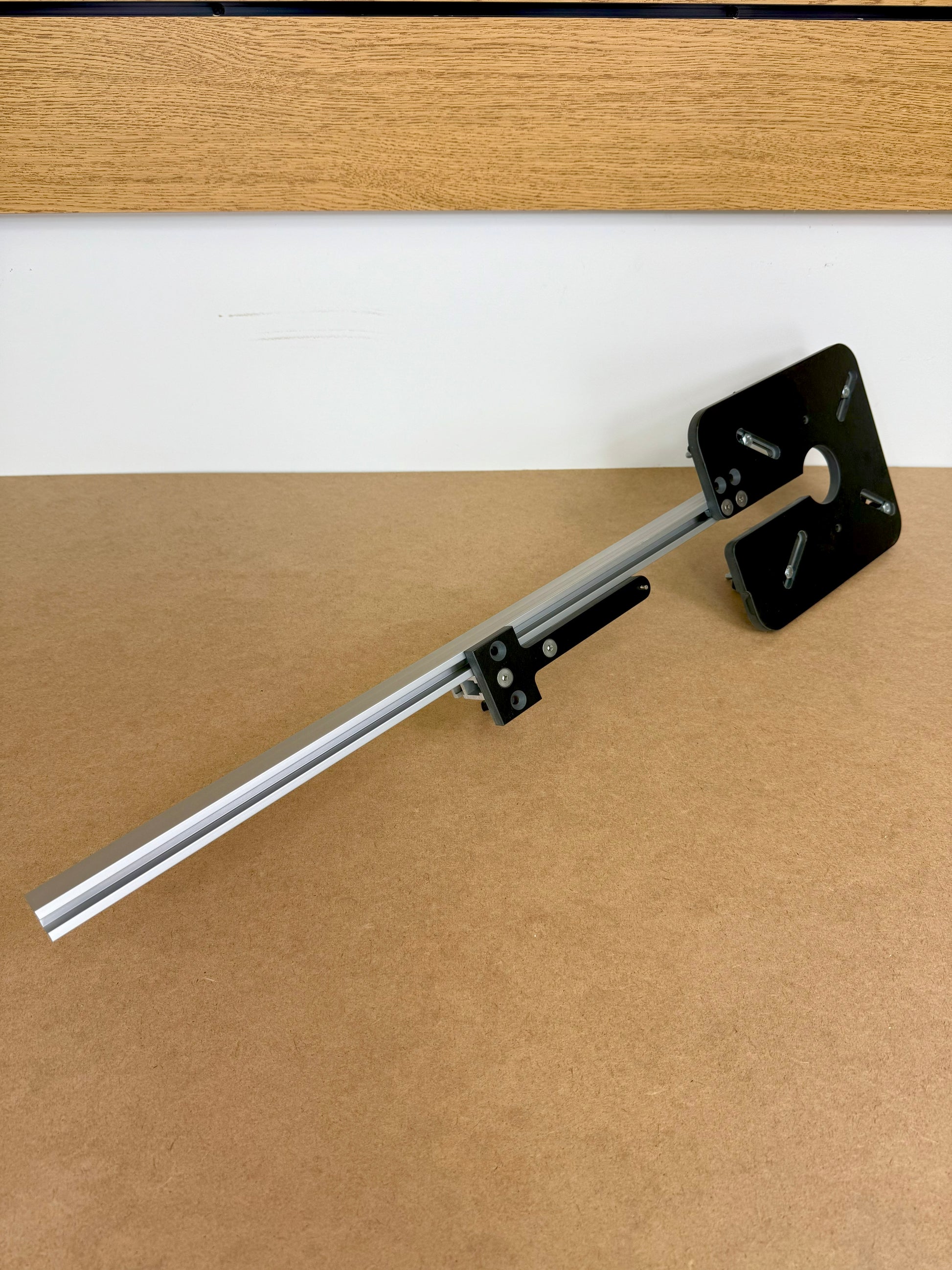

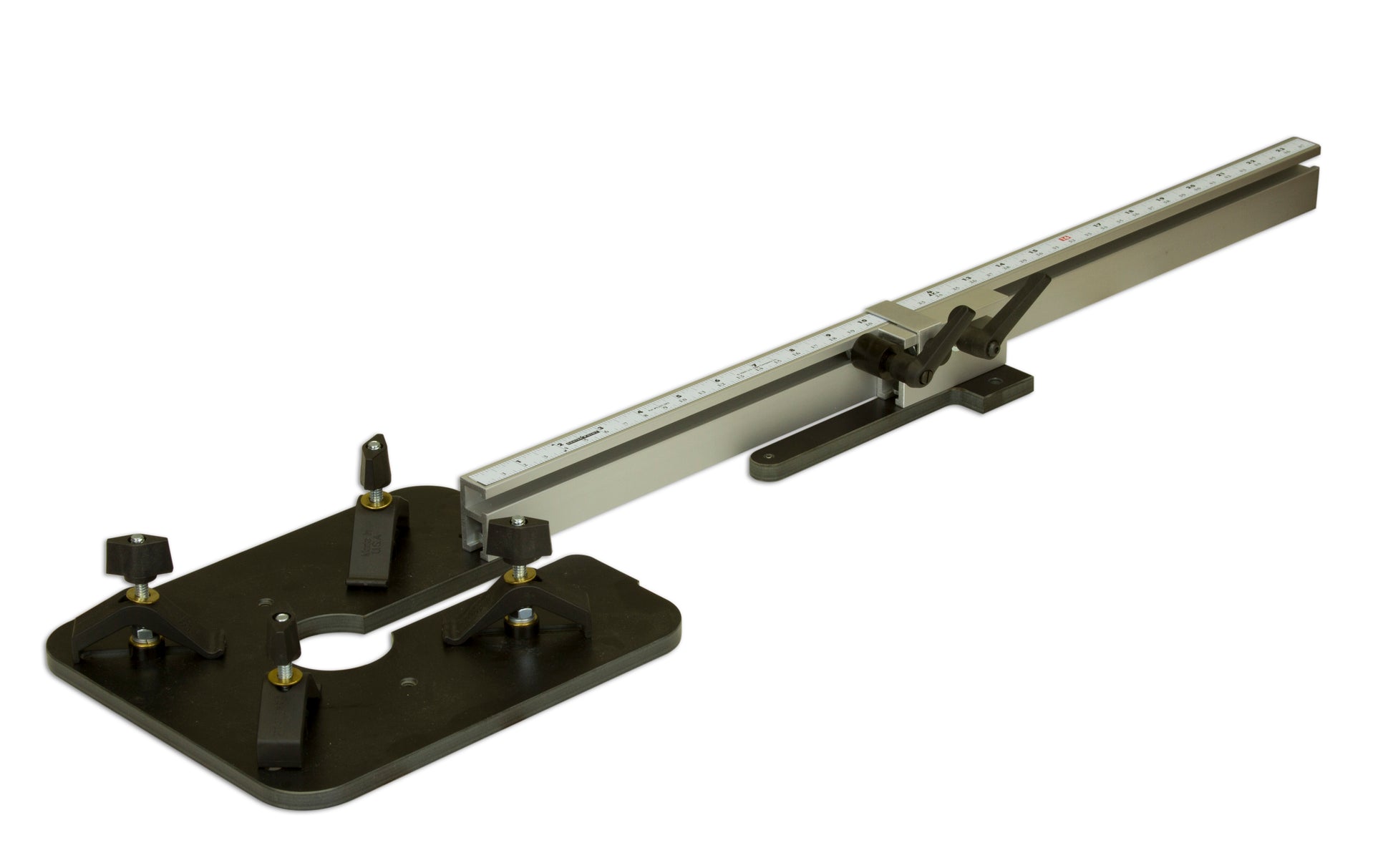

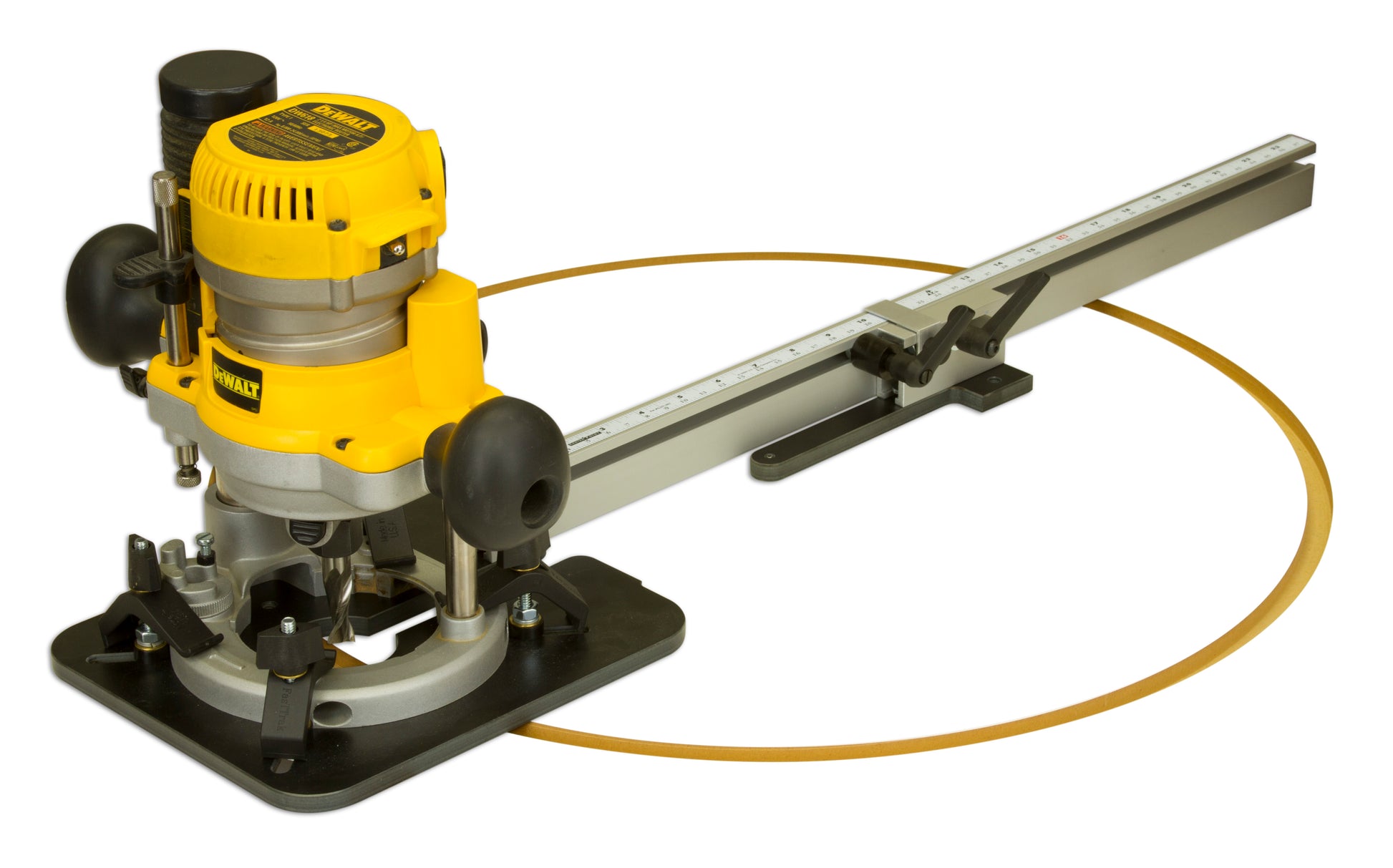

Woodhaven Circle Jig – Cut Perfect Circles with Ease

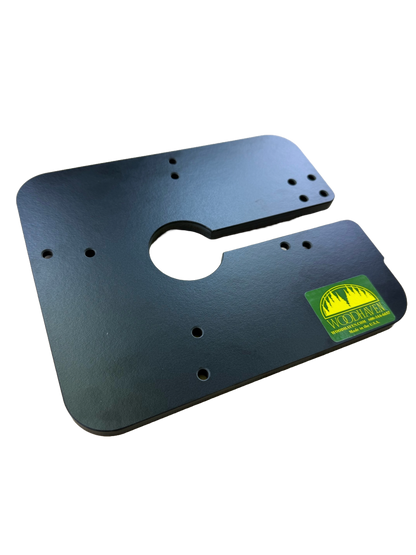

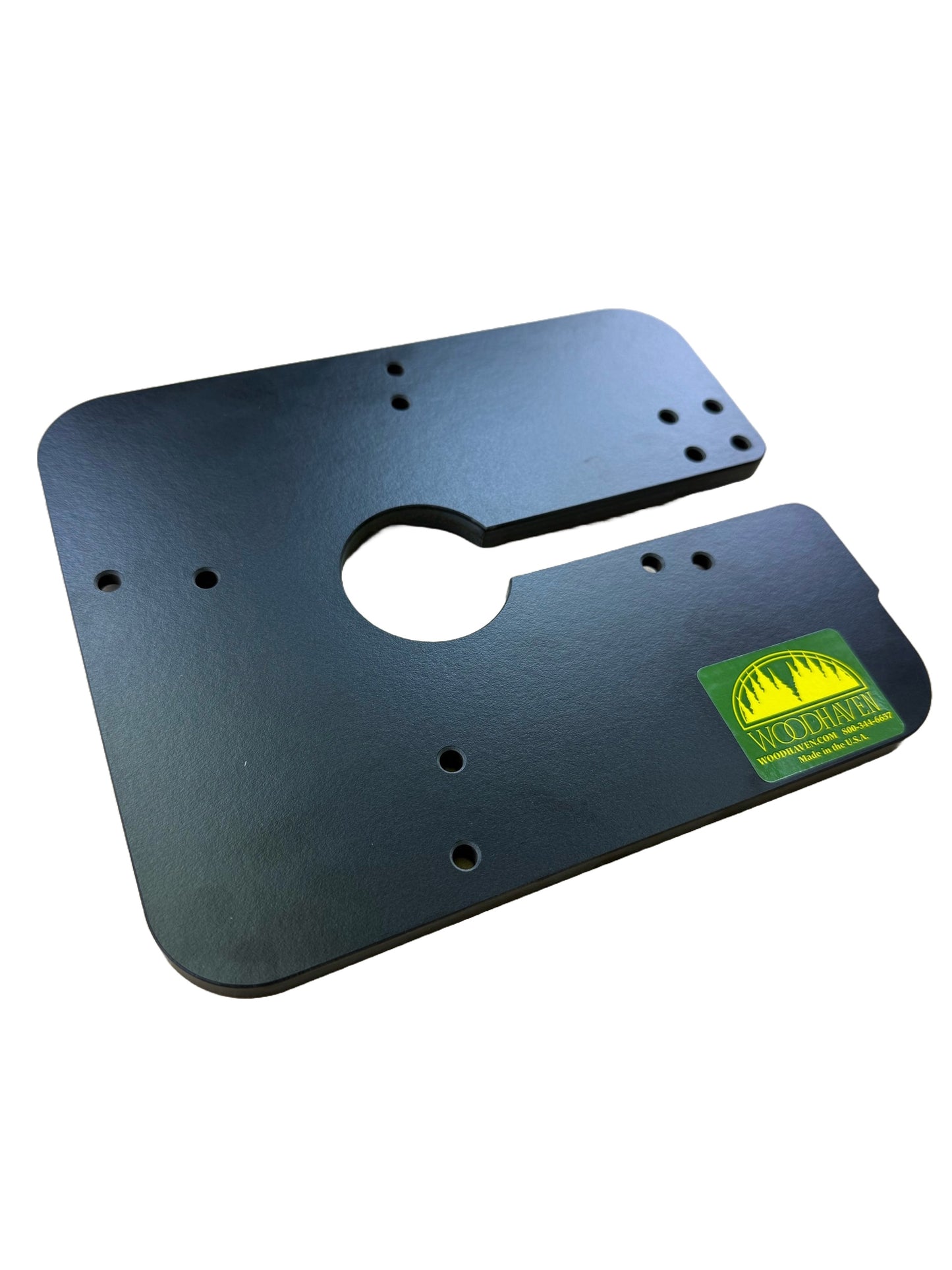

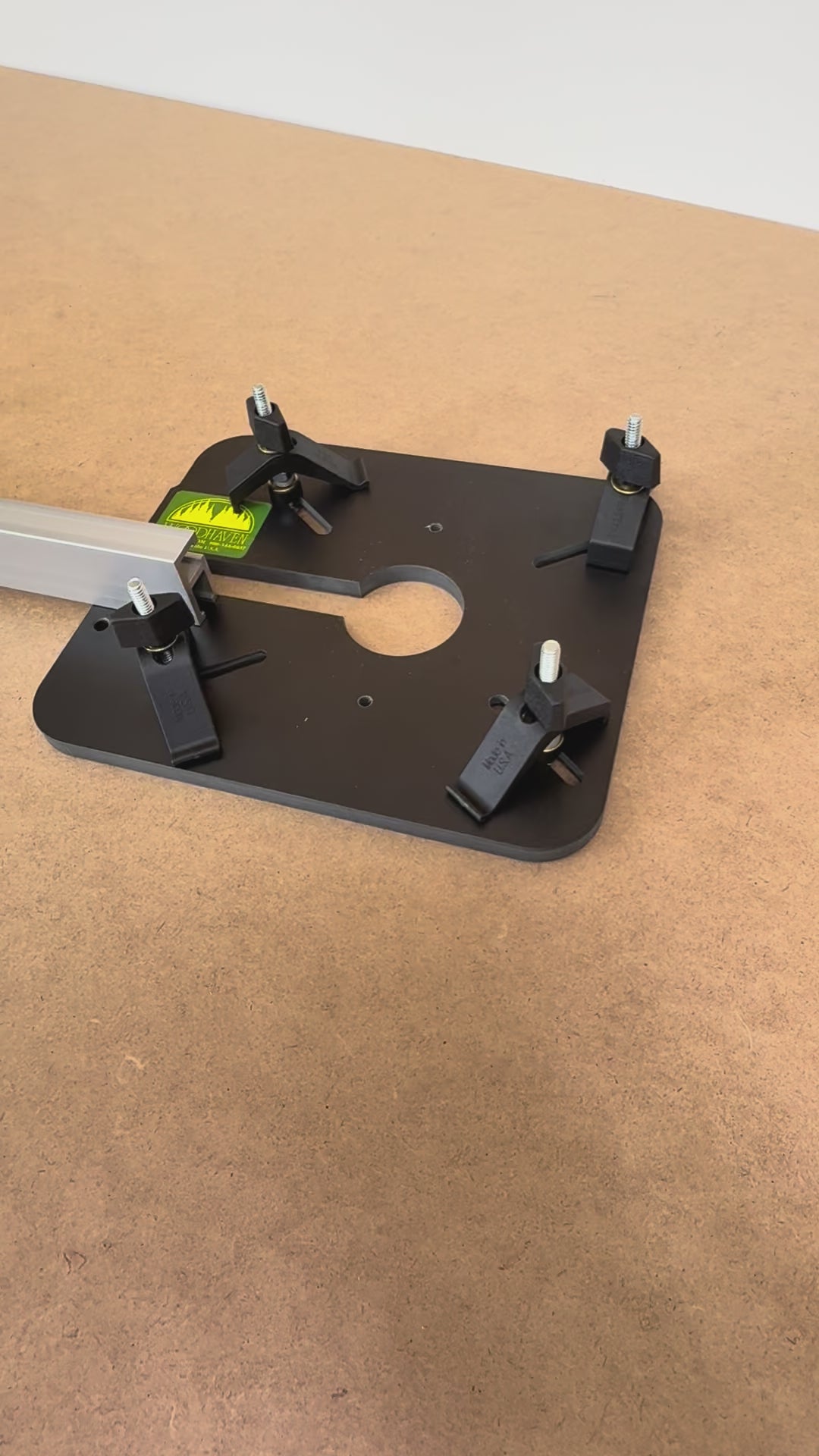

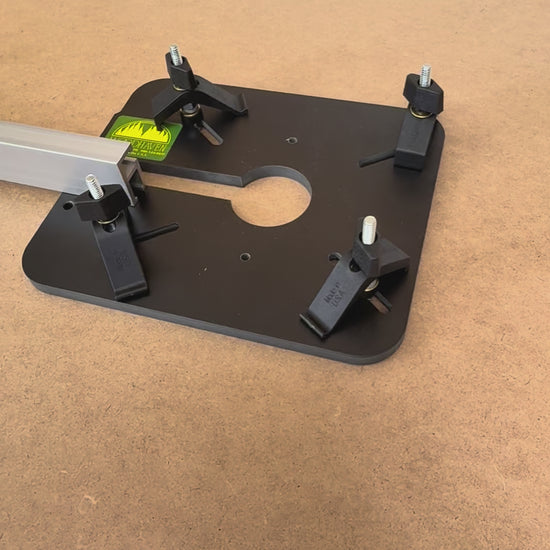

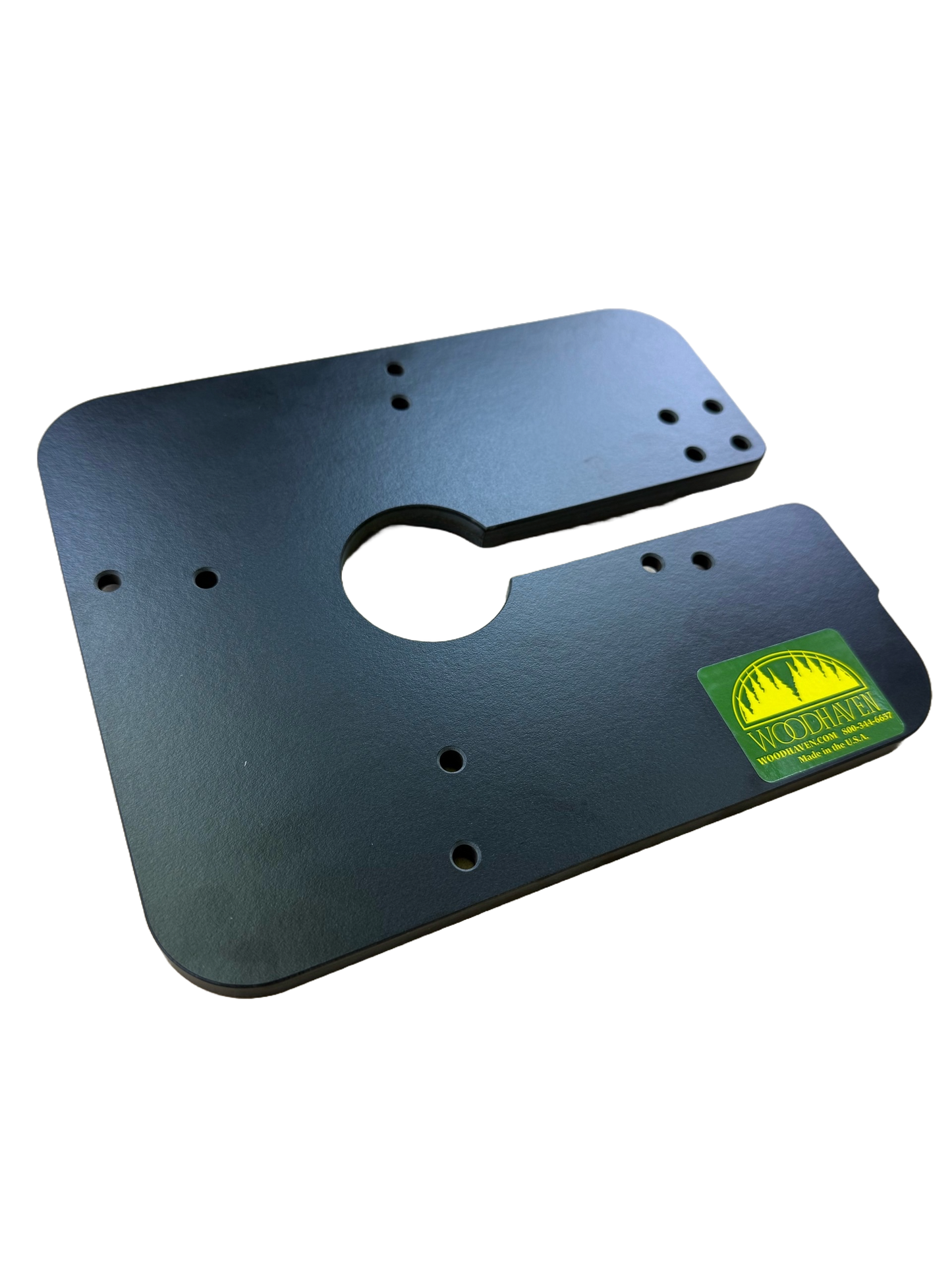

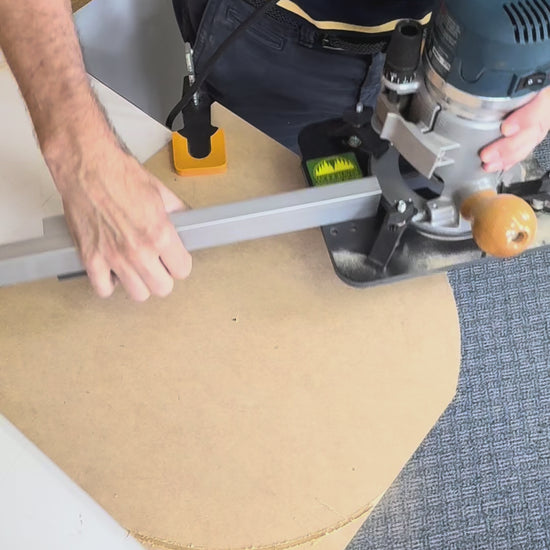

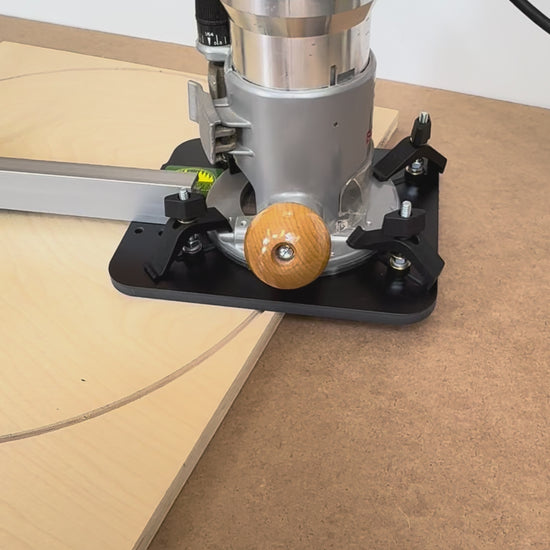

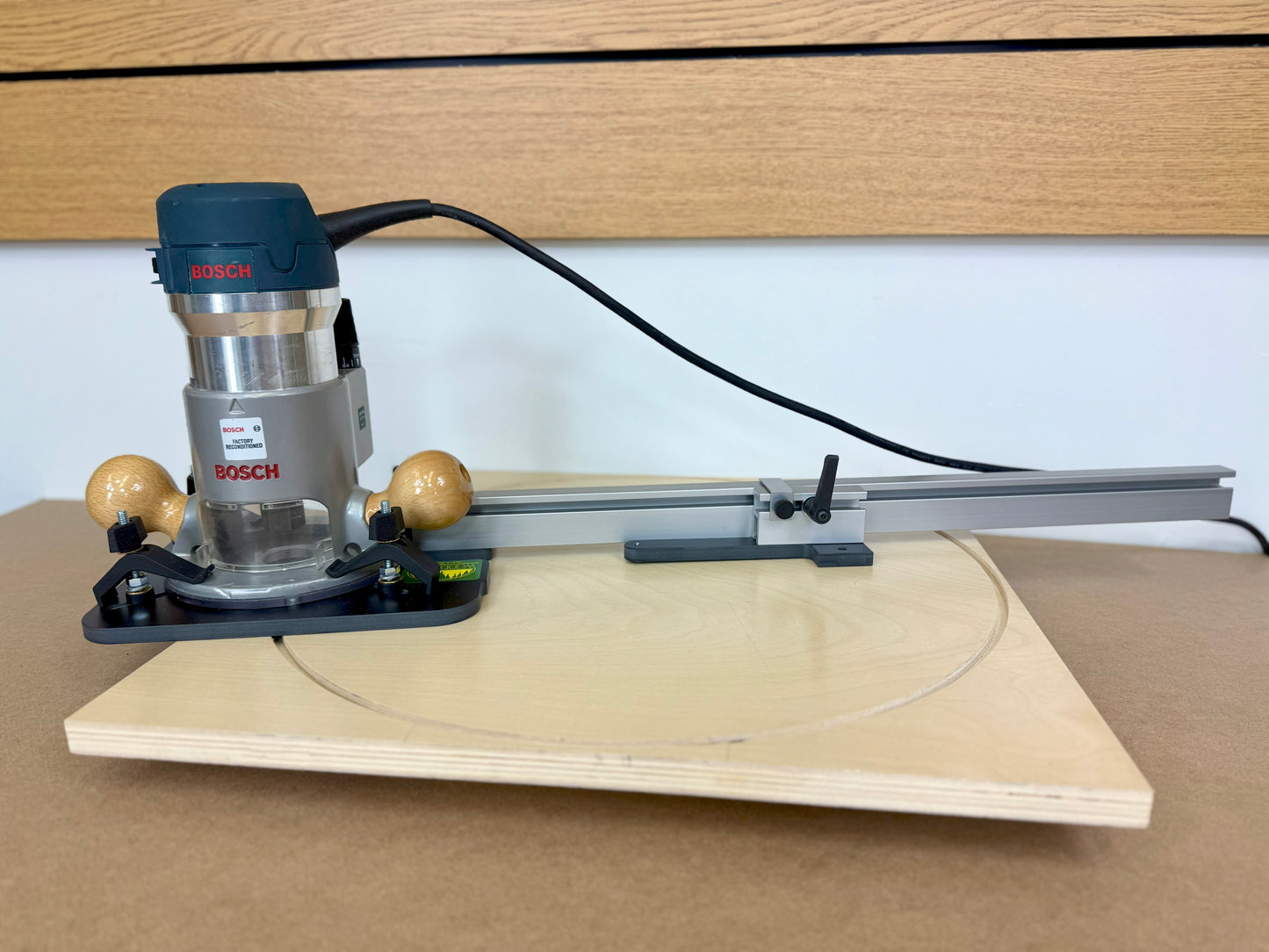

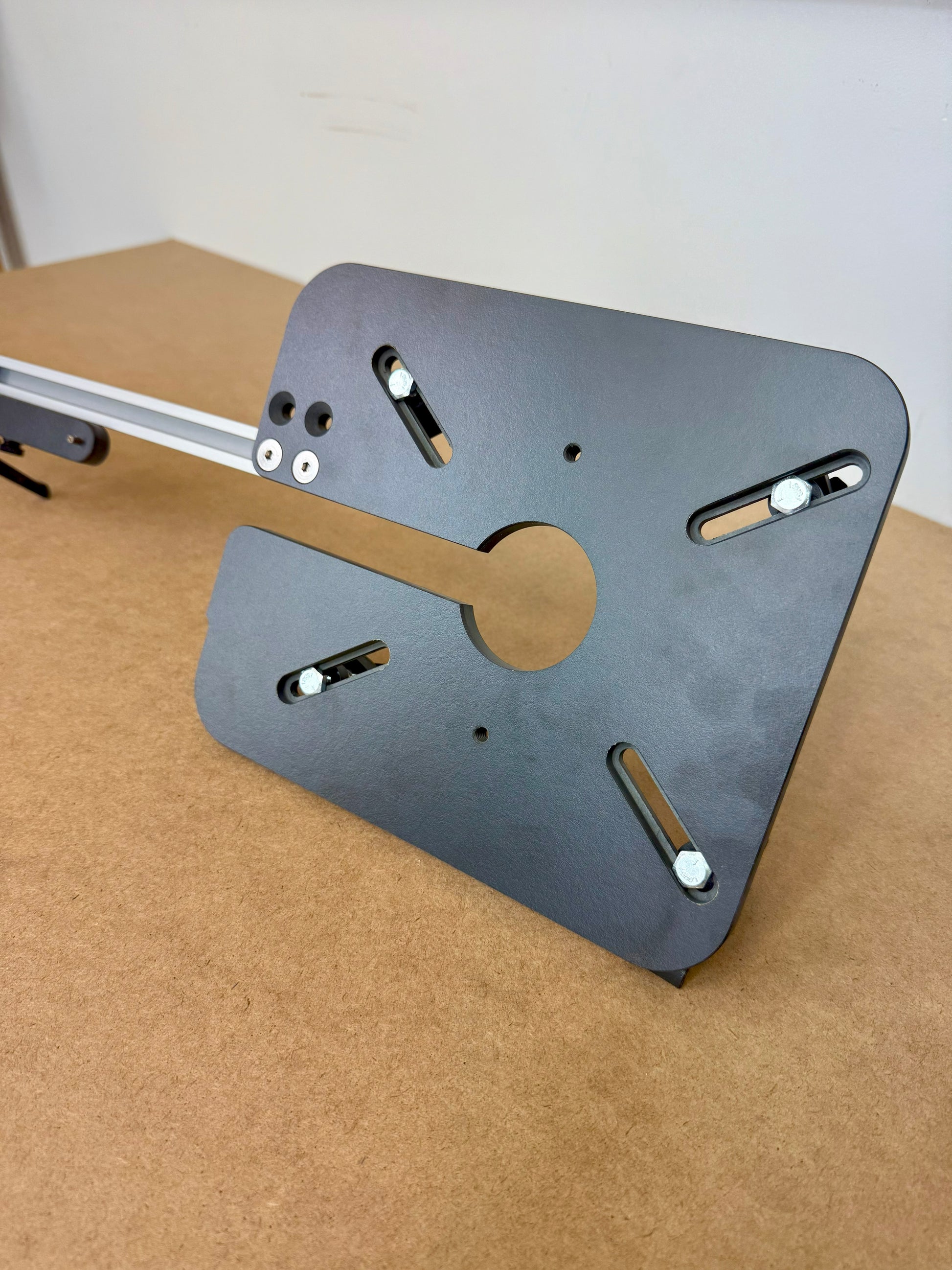

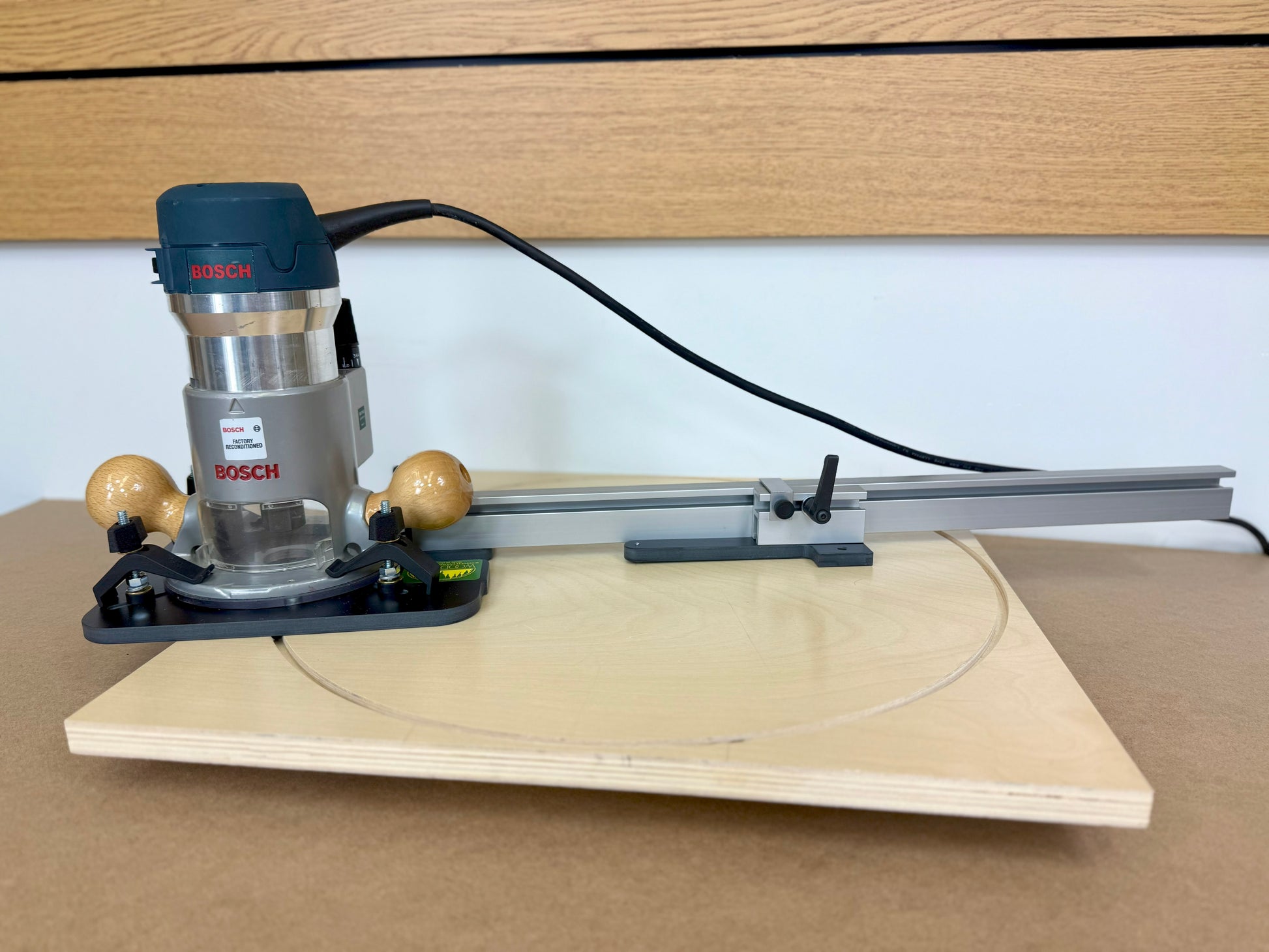

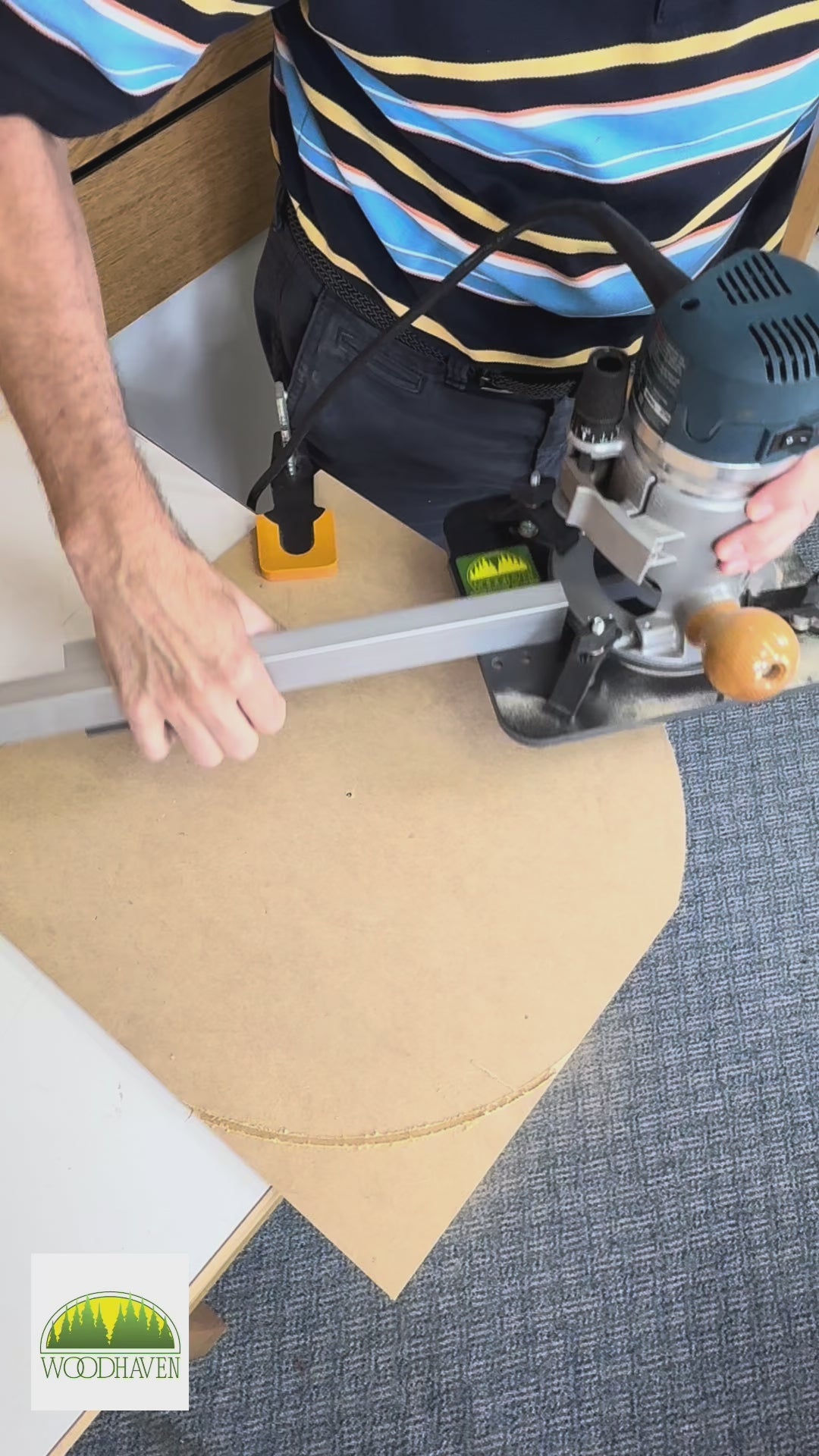

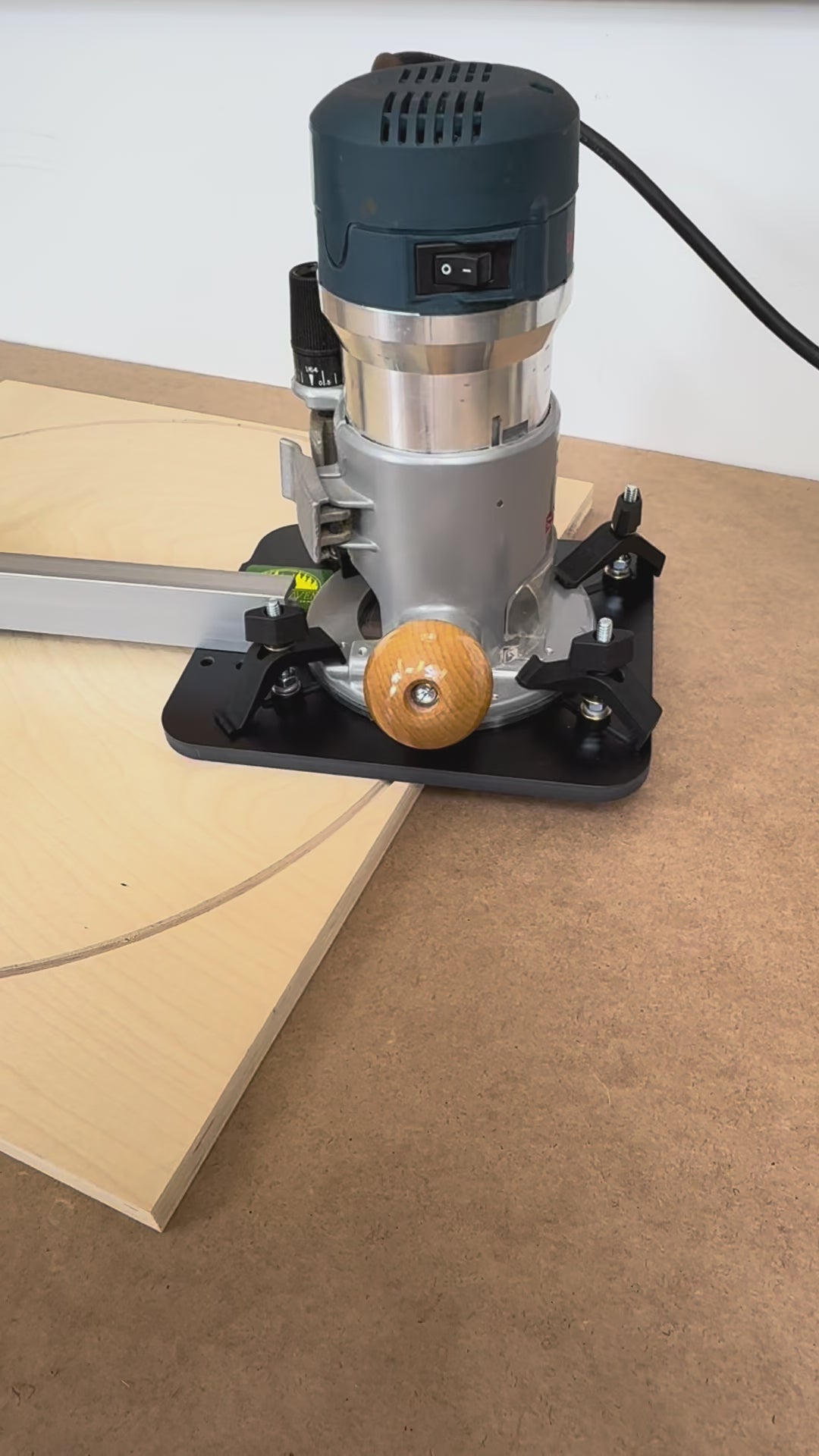

The Woodhaven Router Circle Jig makes cutting clean, precise circles with your router simple and efficient. Its unique NoDrill mounting plate allows fast setup without drilling into your router base, so you can switch between projects without hassle. Just drill a 1/8" pilot hole in your workpiece and you're ready to cut.
Each circular cutting jig includes a built-in pencil holder for drawing circles, a clearly marked scale, and a precision cursor for accurate measurement and repeatable results.
Available Models:
- Model 3260: Includes 24" track, cuts 3/4" to 62-1/4" diameter circles (31" radius)
- Model 3270: Includes 48" track, cuts 3/4" to 110-1/4" diameter circles (55" radius)
- Model 3280: Includes 72" track, cuts 3-3/4" to 158-1/4" diameter circles (79" radius)
- Model 3290: Includes 95" track, cuts 3-3/4" to 204-1/4" diameter circles (102" radius)
Need to cut larger circles? Extend your Router Circle Jig using additional sections of our 4000 Double Track or a track extension kit—contact us for more information.
Note:
- Festool-compatible versions screw directly to the router’s baseplate and do not use the NoDrill clamps
📎 Product Documentation
Our products are made in the USA and include a Lifetime Guarantee against defects in material or workmanship. For product questions or a quote for shipping outside the continental US contact us by Phone 800-344-6657, Email Info@Woodhaven.com or Chat.
Worked as it should. Set up went well...highly recommend!
I need a very strong circle cutting jig, called your sales department and explained my situation. They were able to combine a blank plate(no holddowns) and a much more robust pivot pin. Bottom line: I mounted my 3 horse router to the plate and drilled out the 1/8" pivot pin with a supplied 3/16" pin. I was able to rout out a 5' circle in 6/4 white oak with no problem. I am very happy with this modified jig.
I am a propmaker building movie sets for Hollywood film productions locally in Los Angeles or on location in other states.
I just recently came across Woodhaven circle cutting jigs that I could put together to get the desired radius.

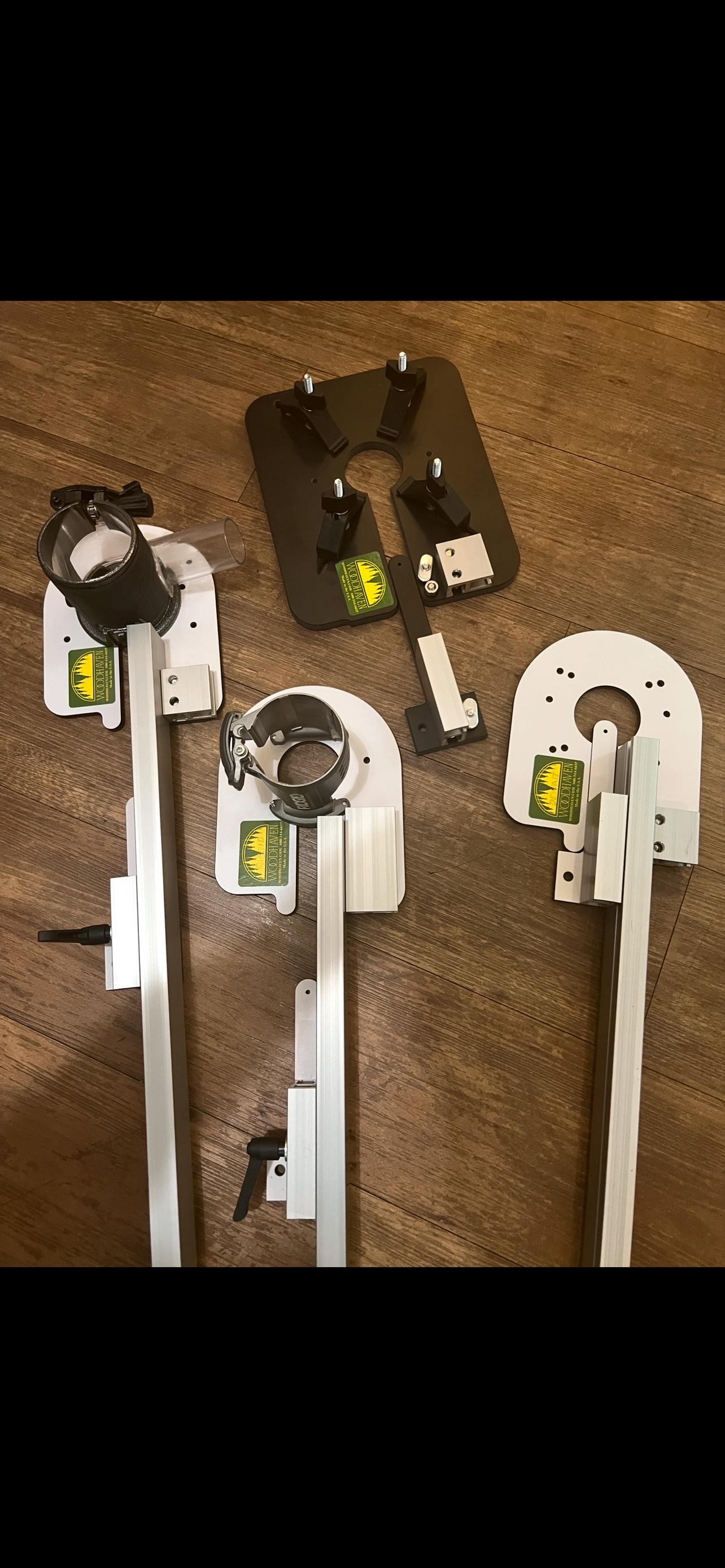

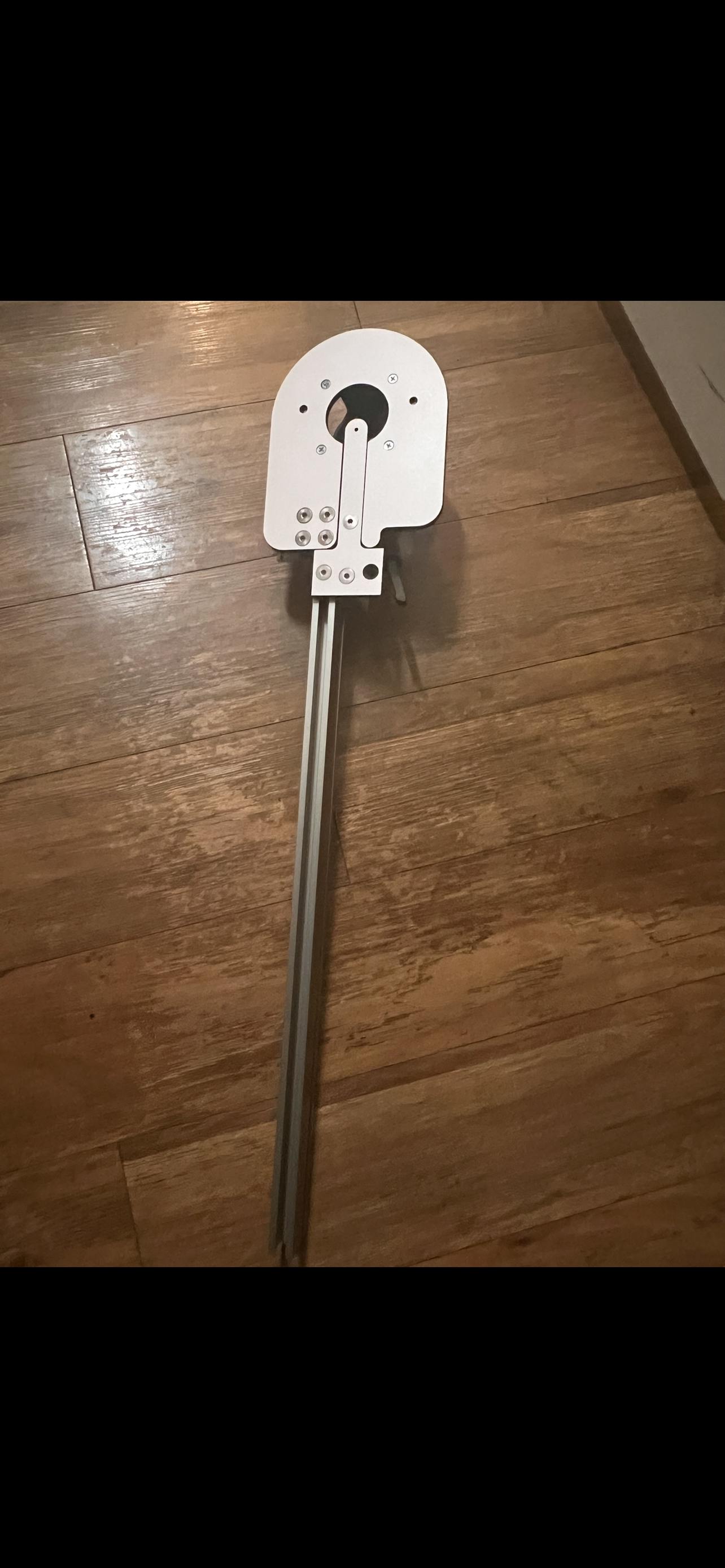

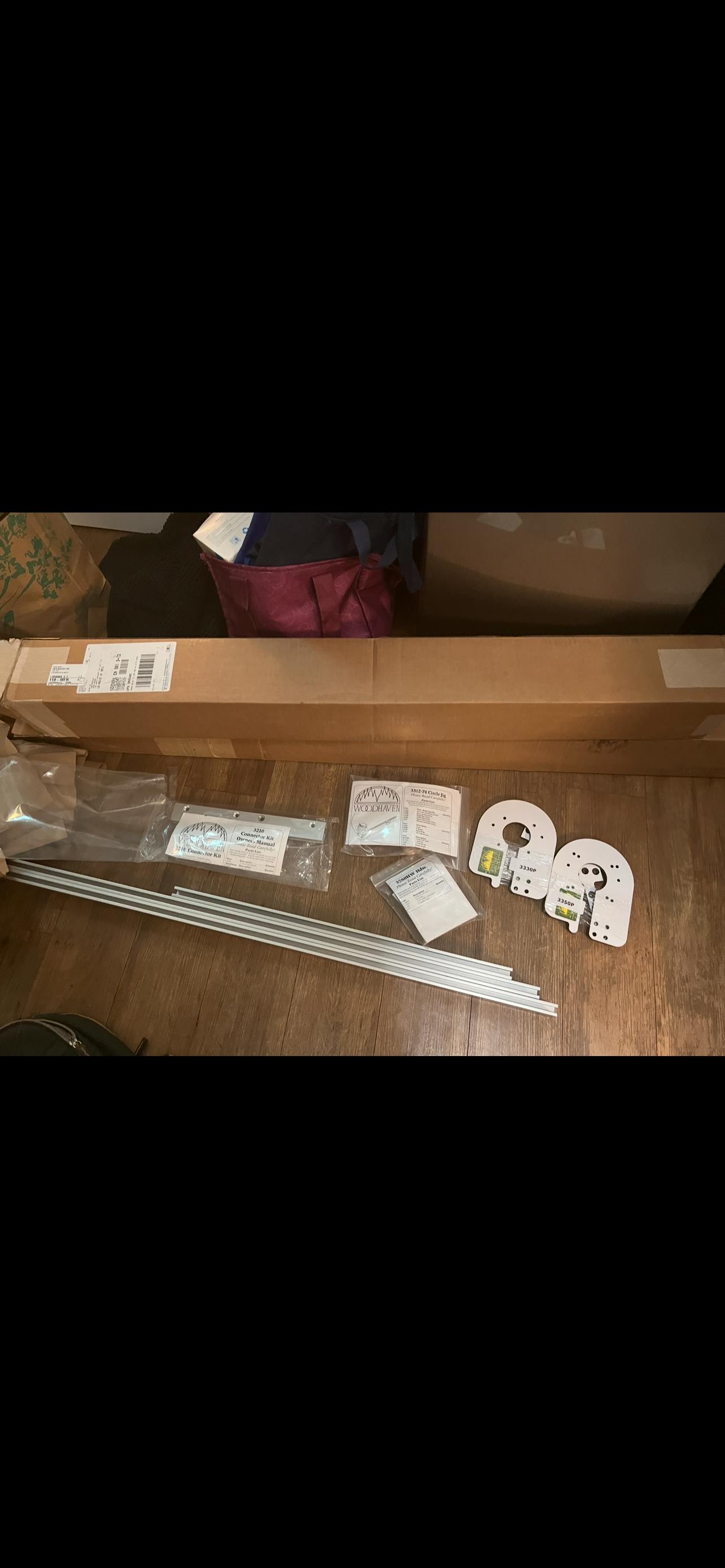

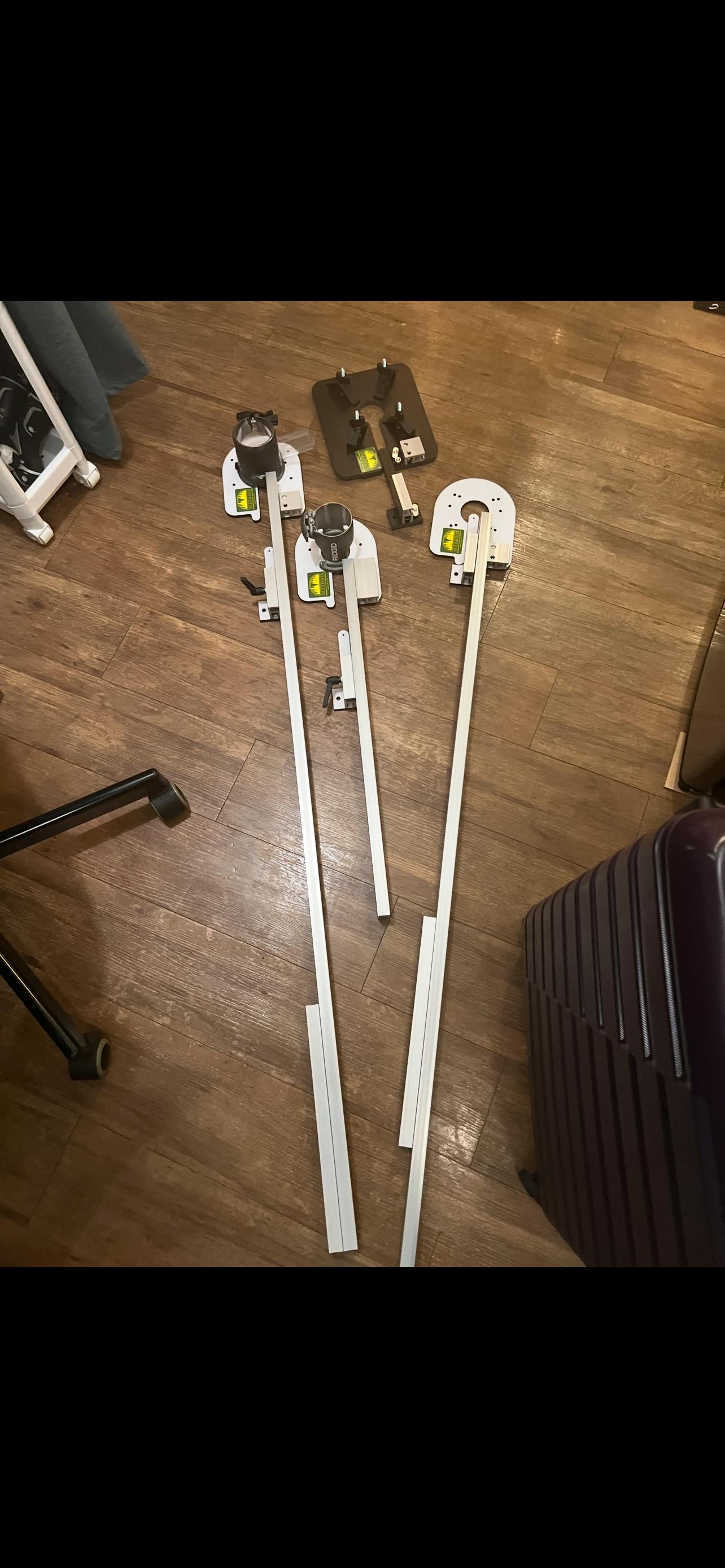

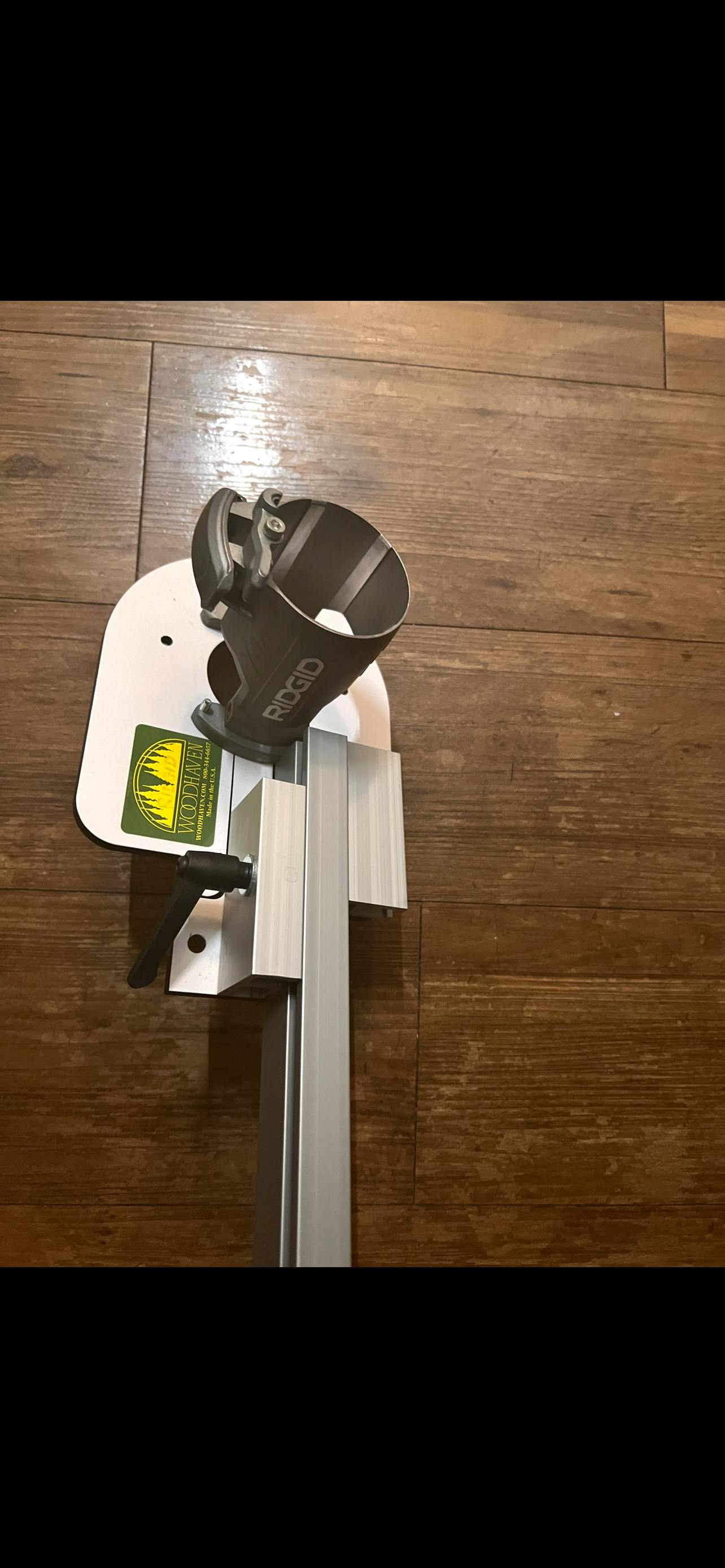

I contacted Doug the owner and with his recommendations I ordered two 4ft rails and one 2ft rail made from extruded aluminum with extension connections brackets so I could have 2ft, 4ft, 6ft, 8ft and 10ft rail for cutting circles. I also added router bases for trimmer routers, Makita, Ridgid, DeWalt and extra for medium base for plunge router.
My favorite sets to build are super heroes, StarWars and Marvel because not a single wall is straight, mostly some kind of angle, radius, circle or cone.
To cut these circles or radiuses we make an arm out plywood and mount router base on it. With Woodhaven circle jig rails and router bases already attached the setup process is faster.
Woodhaven offers phenomenal service and fantastic products. I totally recommend.
Great Product and fast service and delivery
High quality product shipped fast
