Woodhaven 3010 Rail Kit

  • 15499

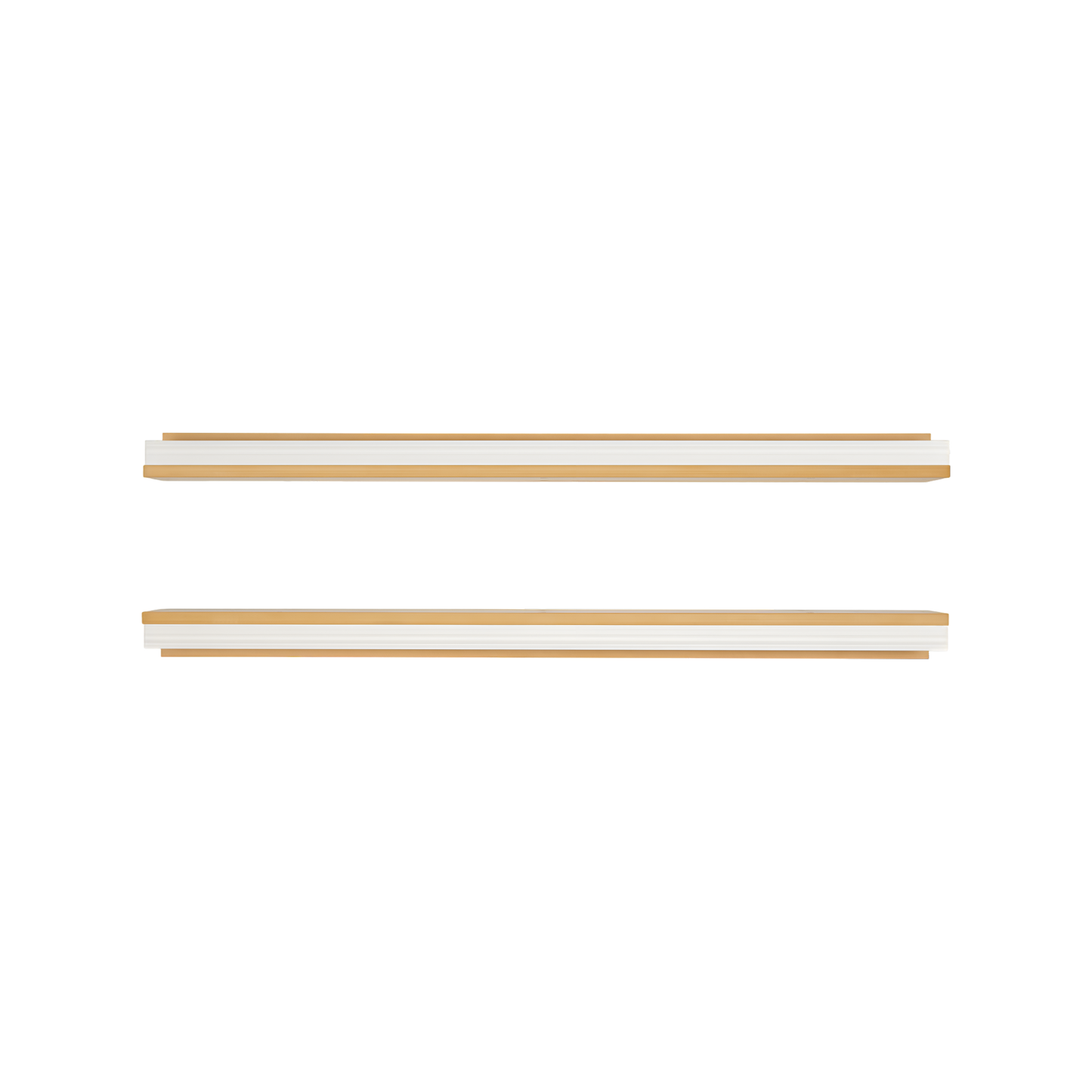

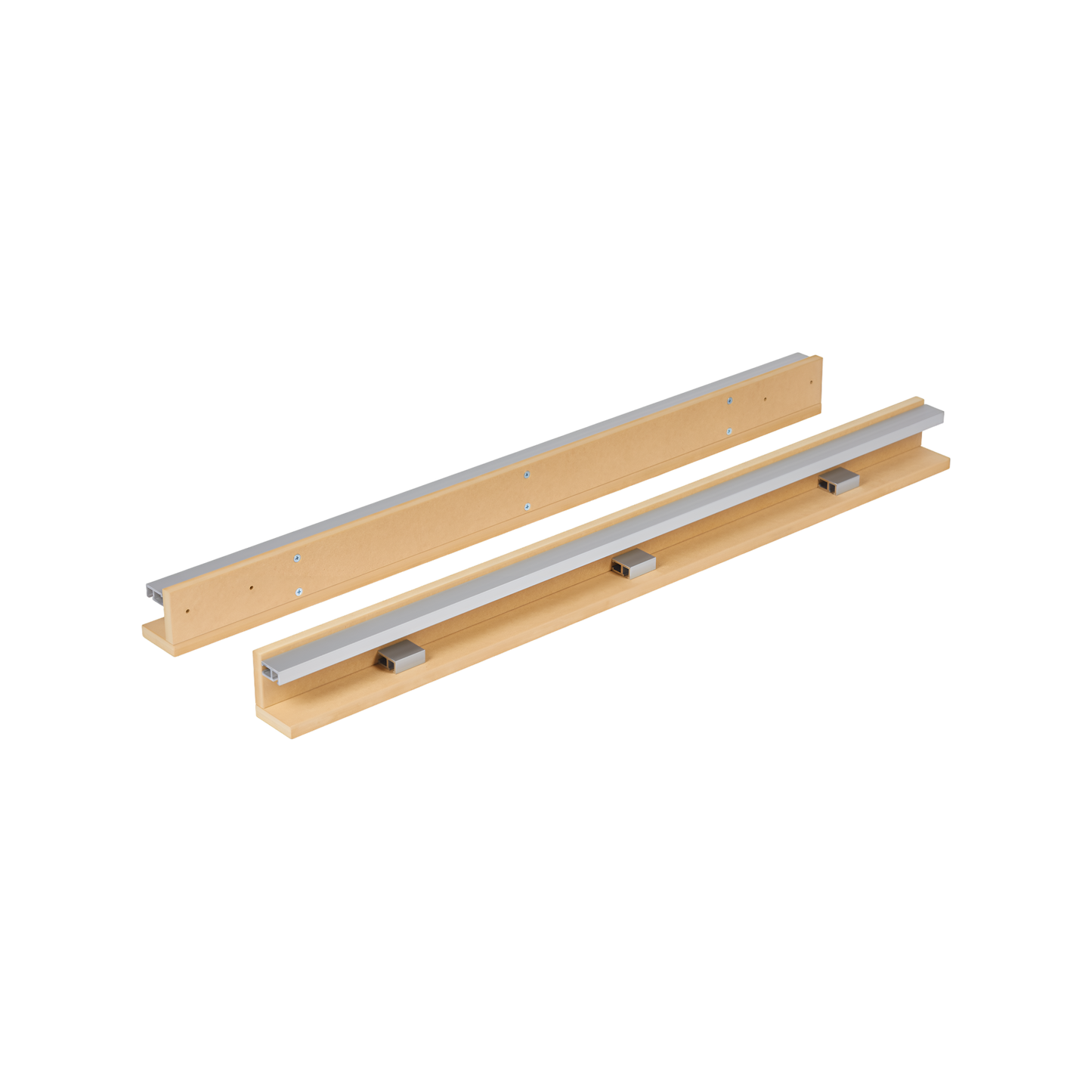

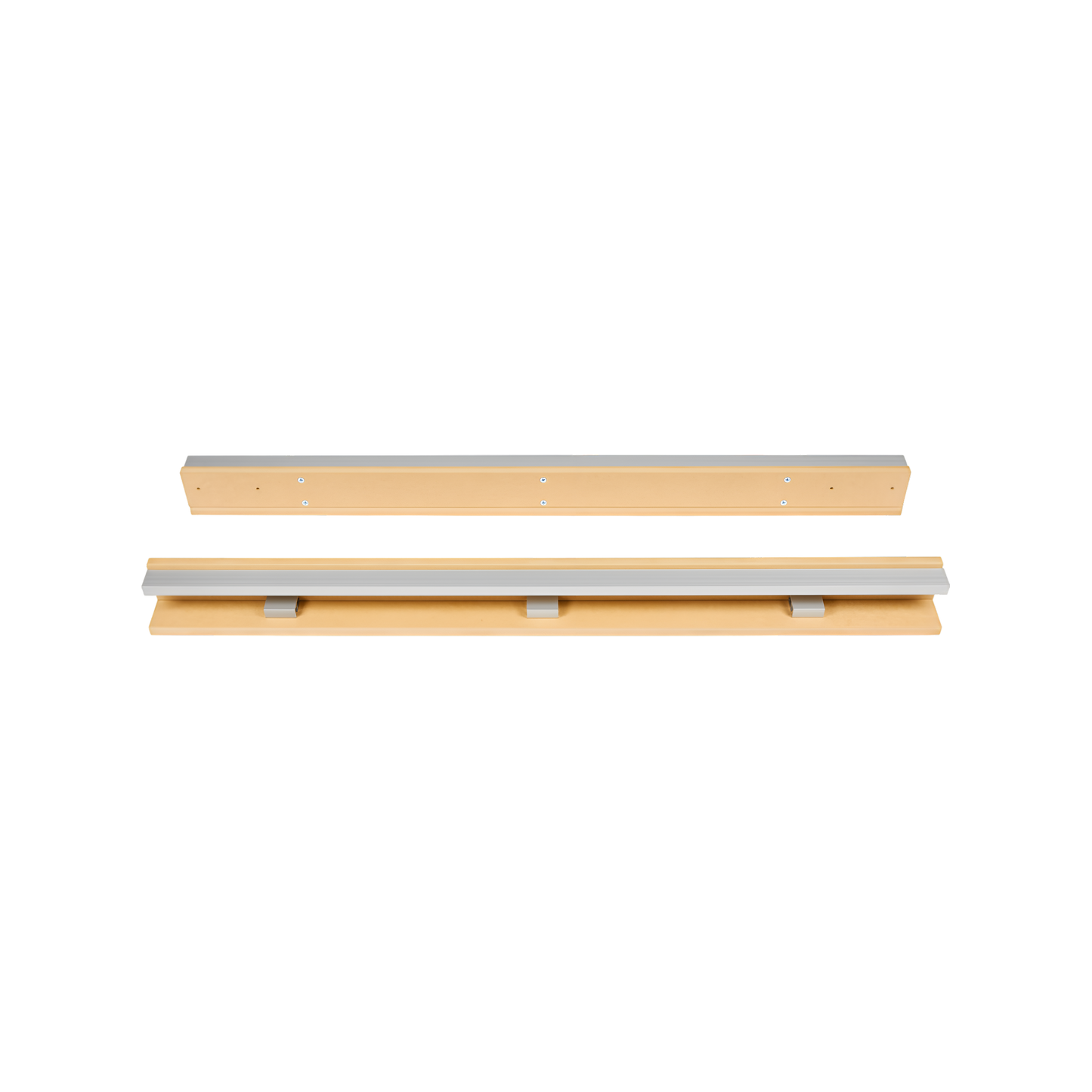

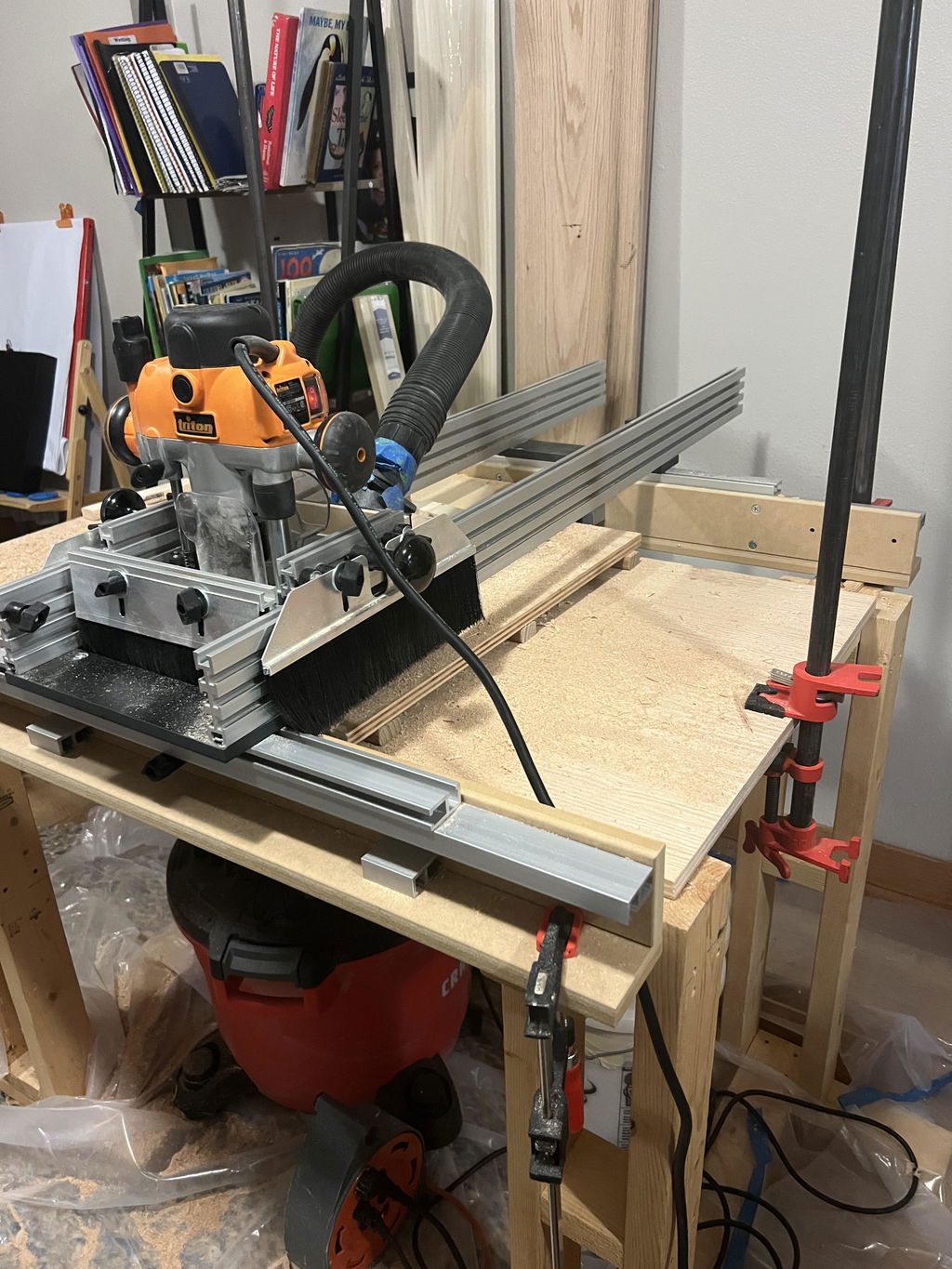

Our Rail Kit eliminates you having to make your own wood rails for our Planing Sled. Easy to set up and use. Multiple Rail Kits can be connected together to cover any length part. The Rail Kit is 48" long. Includes two melamine MDF Fence & Base Rails, plus two 48" Double Tracks for the Planing Sled to ride on.Stock length capacity is 12" -16" less (depends on width of stock) than the combined overall length of the Rail Kits. Stock thickness capacity up to 4". Four height adjusters, two in the front and two in the back, allow easier height adjustment compared to homemade rails. Just loosen four knobs and change the stock height setting as needed.Angle brackets (included) attach to the height adjusters and to the underside of your stock. Or you can provide a sub-table to attach to the angle brackets/height adjusters and then you can double face tape or screw the stock to it.Rail Kit reduces the stock width capacity of the Planing Sled by 1-1/2".Rail Kit can be clamped (clamps not included) or simply set on router mats on any flat work surface.Rail Kit can also be screwed or bolted (screws or bolts not included) to, for example, 2 x 4 cross members or a plywood base for a semi-permanent setup.Multiple Rail Kits can be connected together end-to-end using the 3020 Connector Kit. One Connector Kit required for each Rail Kit you wish to connect. Multiple Rail Kits may require some shimming underneath (shims not included) to insure they're straight.

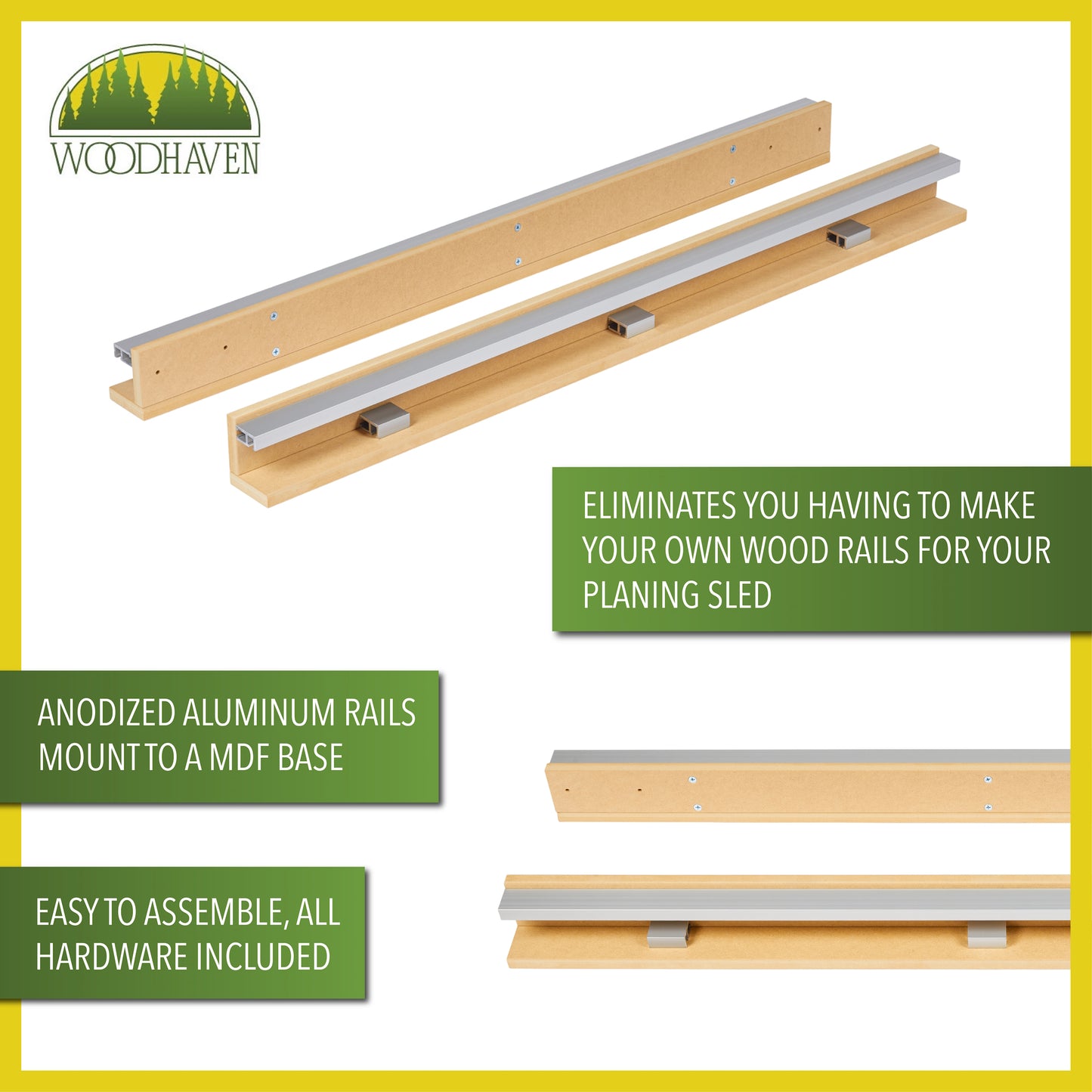

  • Our Rail Kit eliminates you having to make your own wood rails for our 3000-3004 Planing Sled. Easy to set up and use. Multiple Rail Kits can be connected together to cover any length part. The Rail Kit is 48" long. Includes two melamine MDF Fence & Base Rails, plus two 48" aluminum Double Tracks for the Planing Sled to ride on.
  • Four height adjusters, two in the front and two in the back, allow easier height adjustment compared to homemade rails. Just loosen four knobs and change the stock height setting as needed.
  • Stock length capacity is 12" -16" less (depends on width of stock) than the combined overall length of the Rail Kits. Rail Kit reduces the stock width capacity of the Planing Sled by 1-1/2".
  • Lifetime guarantee against defects in material or workmanship. Made in the USA!
