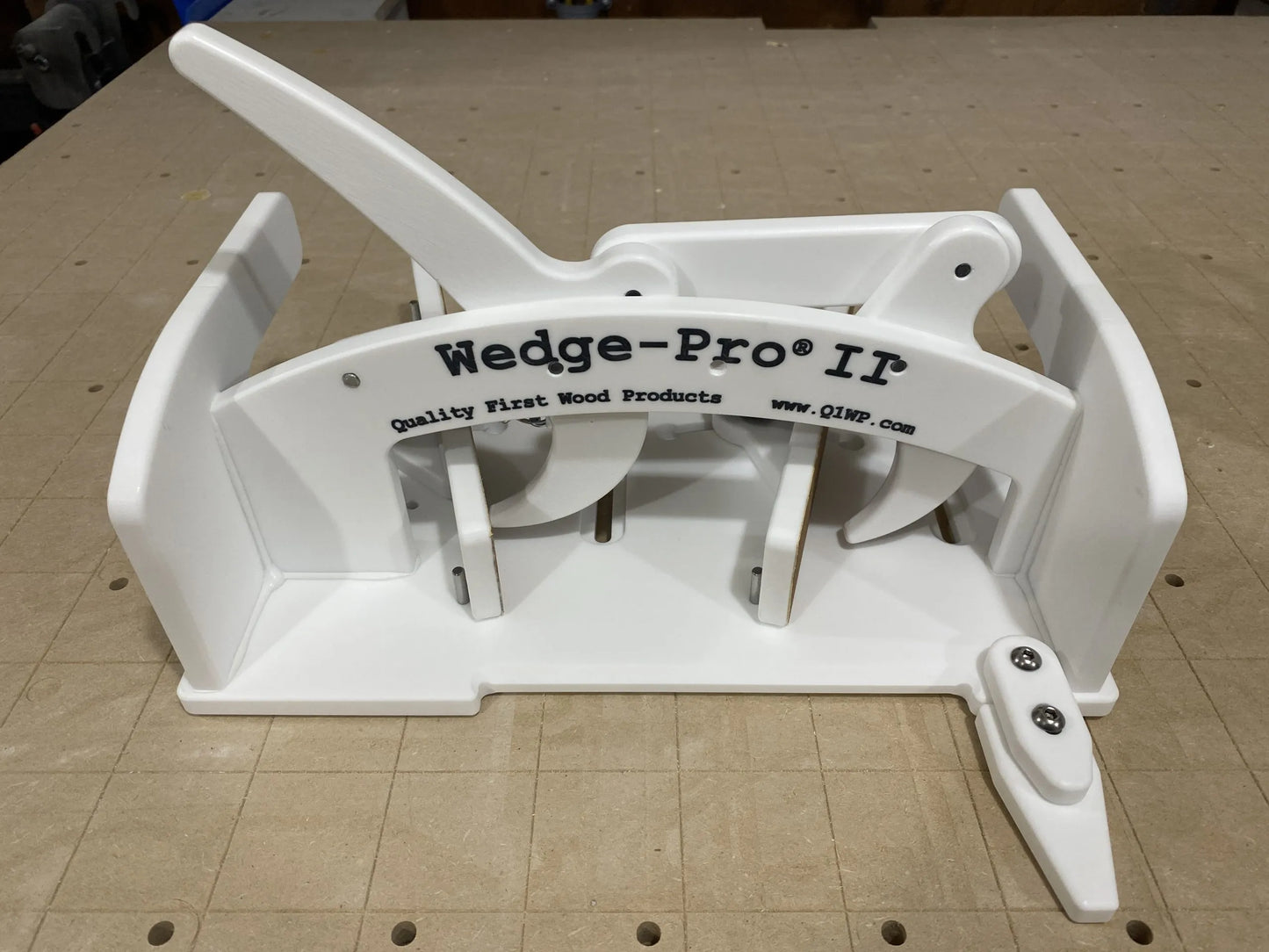

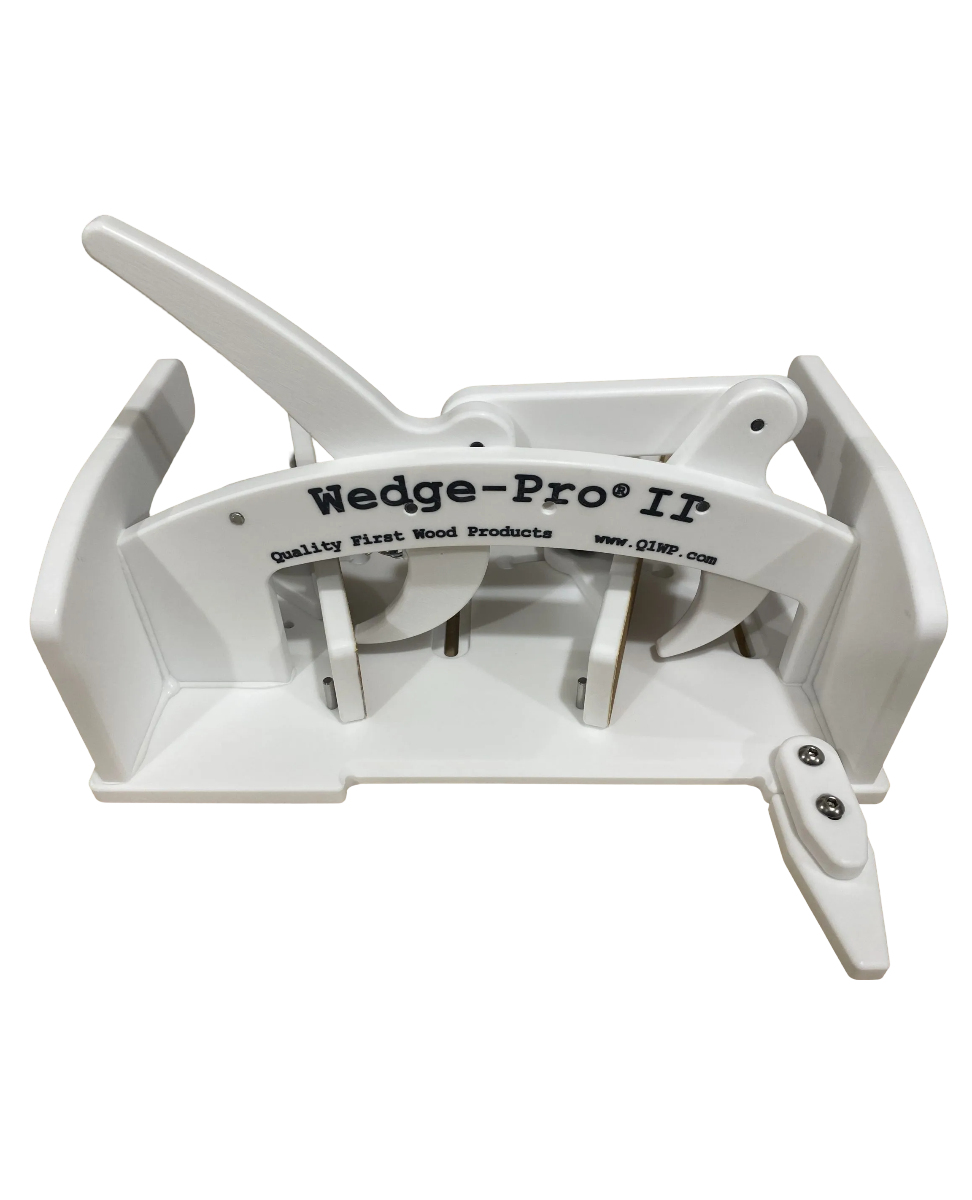

Wedge-Pro® II Segmented Circle Cutting Sled

Wedge-Pro® II Segmented Circle Cutting Sled

Regular price $ 444.99
Regular price Sale price $ 444.99
Sale Sold out

The Wedge-Pro® II cutting sled for segmented rings is the 1st professionally designed and manufactured cutting sled. The Wedge-Pro® II cutting sled is extremely comfortable to use and most importantly keeps your hands clear of the blade. This complete kit (sled, material stop, push sticks) creates a turn-key package that has all you need to make segmented turnings safely and accurately on a table saw.

The Wedge-Pro® II has all the features that the original Wedge-Pro® has, except that it utilizes two fences which automatically adds angle error compensation, guaranteeing perfect segments and rings every time!

The two-fence segmenting sled advances the “flip-the-strip” paradigm and allows for more advanced techniques like zig-zag segments, tapered segments, skewed segments, flat stars, etc.

  1. Includes a built-in zero clearance bed which eliminates the need for accessory table saw inserts.
  2. Ships with miter bars that fit standard 3/4″ miter slots, however if your miter slot is smaller, the miter bar can easily be cut down using your table saw.

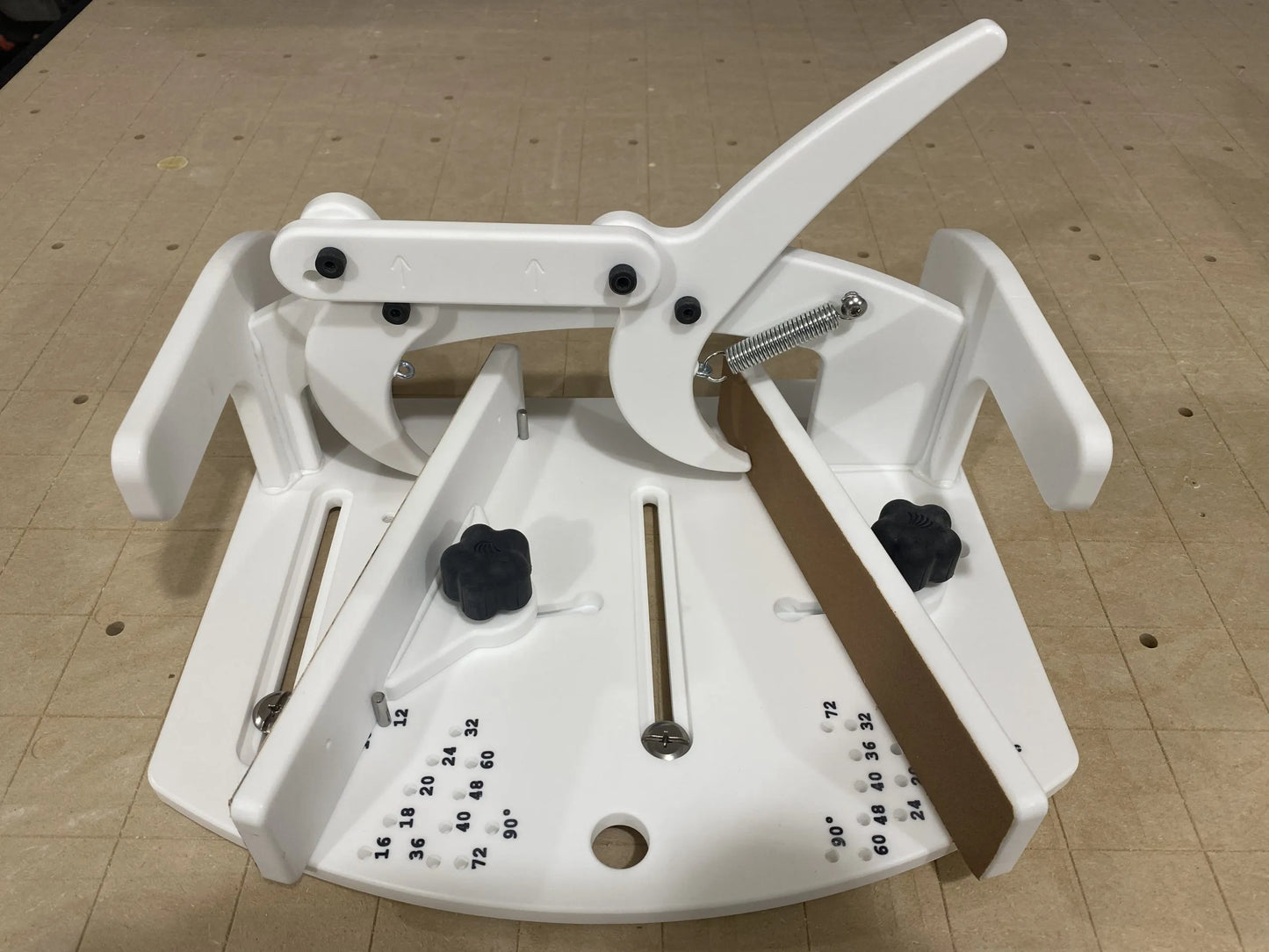

  3. No setup blocks are necessary. The sled utilizes indexing holes for 8, 10, 12, 16, 18, 20, 24, 32, 36, 40, 48, 60, and 72 segments, and also has an indexing hole at 90° so the sled can be used as a standard 90° miter fence.
  4. Sled features a unique sweeper that helps to safely remove segments away from the spinning blade.
  5. The sled is designed for a left-hand configuration.  The Wedge-Pro® II is NOT reversible.
  6. The adjustable fences have non-slip faces to prevent material slippage.
  7. Includes two integrated spring-loaded clamps which provide hands-clear cutting and allows for utilization of the last few inches of each board.
  8. Can handle cutting stock up to 2″ x 2″.
  9. The sled is constructed using high quality Corian®, a very durable acrylic that will not damage blades with indirect contact.
  10. All provided hardware is stainless steel and corrosion resistant.
  11. No need to create half rings as this sled creates perfect segments that create perfectly tight rings every time!
  12. The Wedge-Pro® II fits a wide variety of table saws, but the dimension from the center of the miter bar slot to the edge of the blade must be between 2-1/2″ (64mm) & 7-3/4″ (196mm)

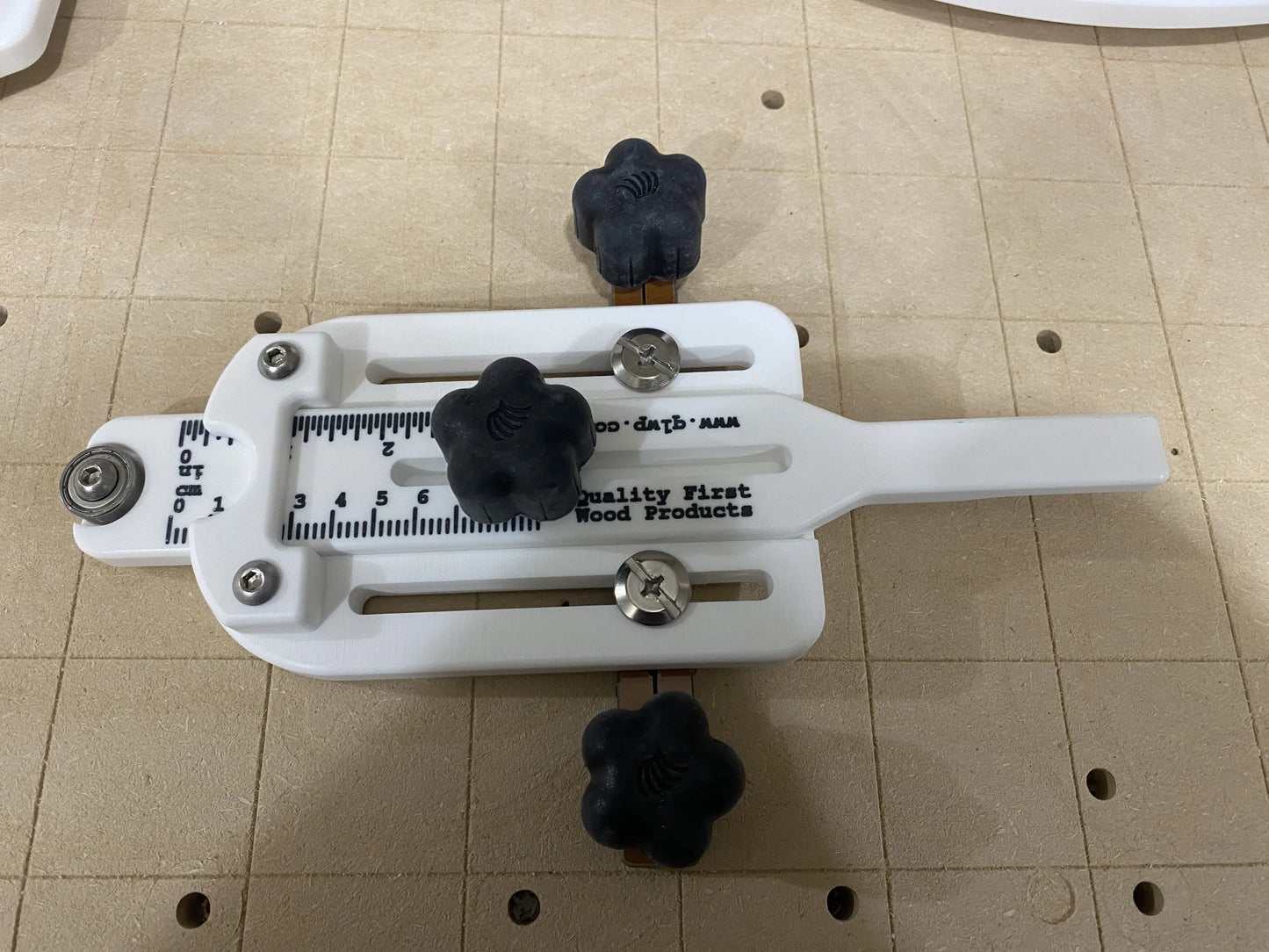

** Includes a specially designed material stop & thin-ripping jig!

** Includes two sacrificial push sticks!

Why should I buy the Wedge-Pro® II? The main advantage the two fence version provides, is the ability to cut advanced segment types like zig-zag, tapered, skewed, sprirals, flat stars, 3d bevel stars, etc.  If you are not going to use these advanced segment techniques, then the original single fence version is a better choice.

Patent Pending

Sold By Woodhaven, built by Quality First Wood Products in Columbia, SC.
