525 Large Coping Sled
525 Large Coping Sled
Couldn't load pickup availability

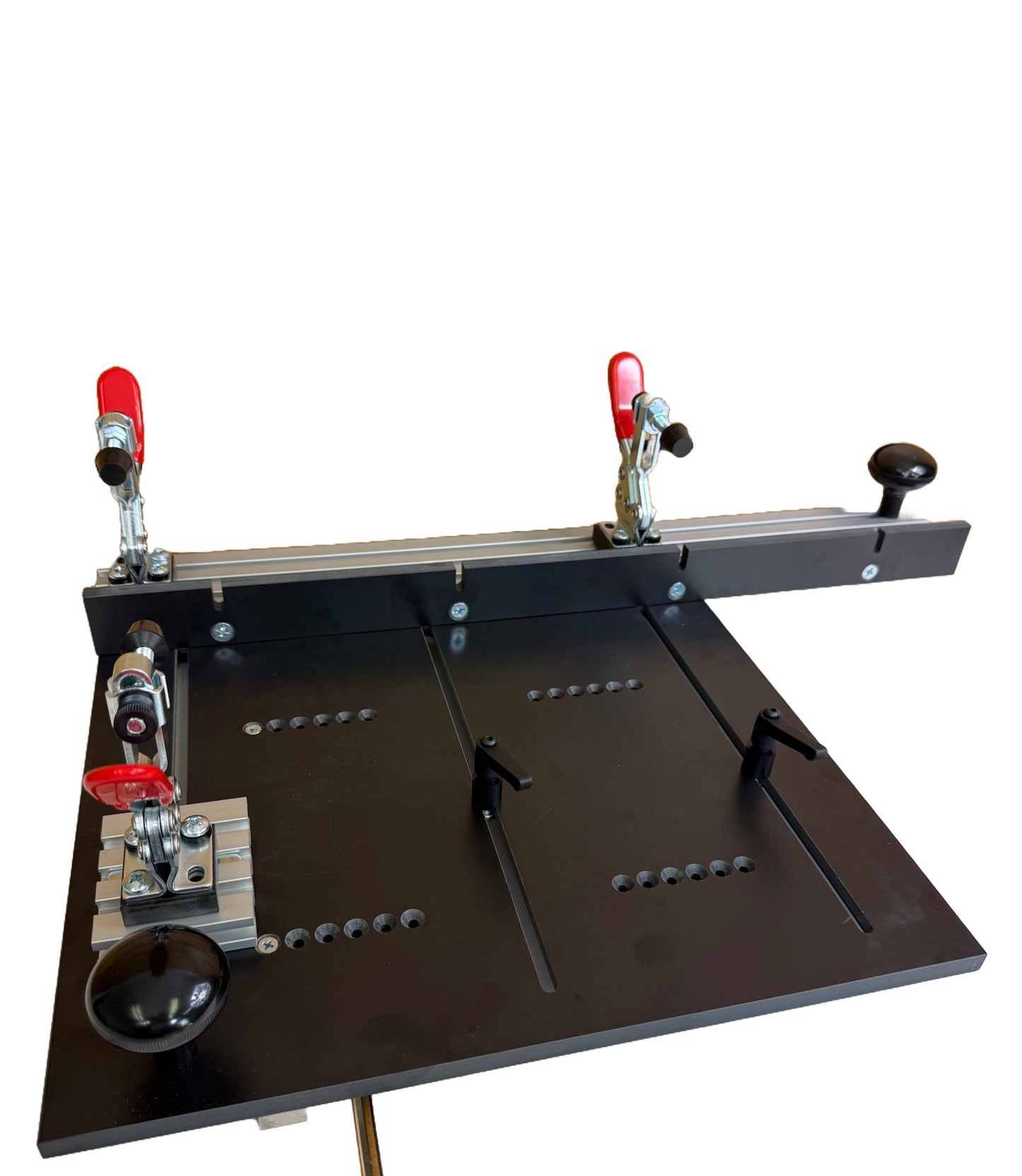

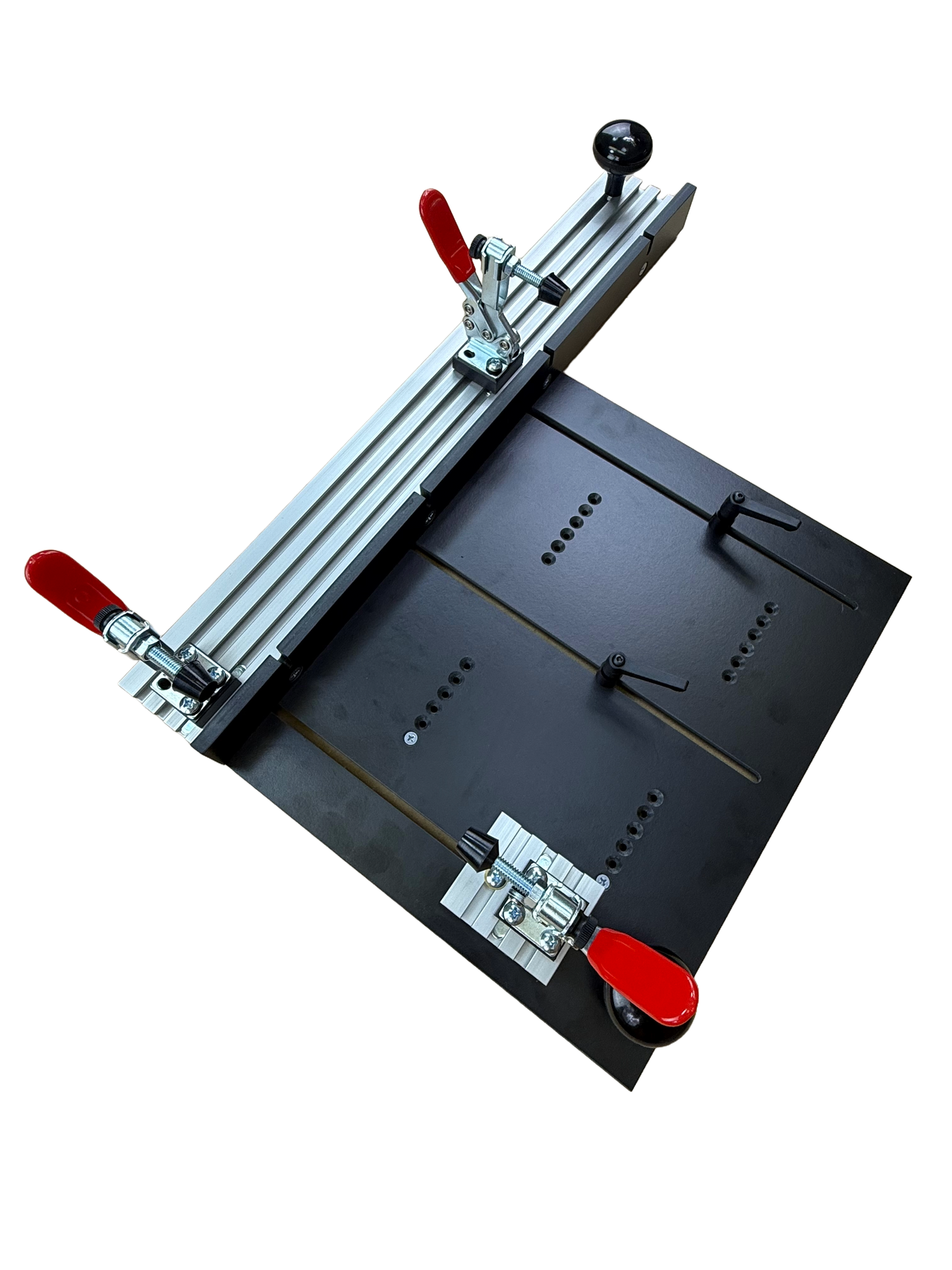

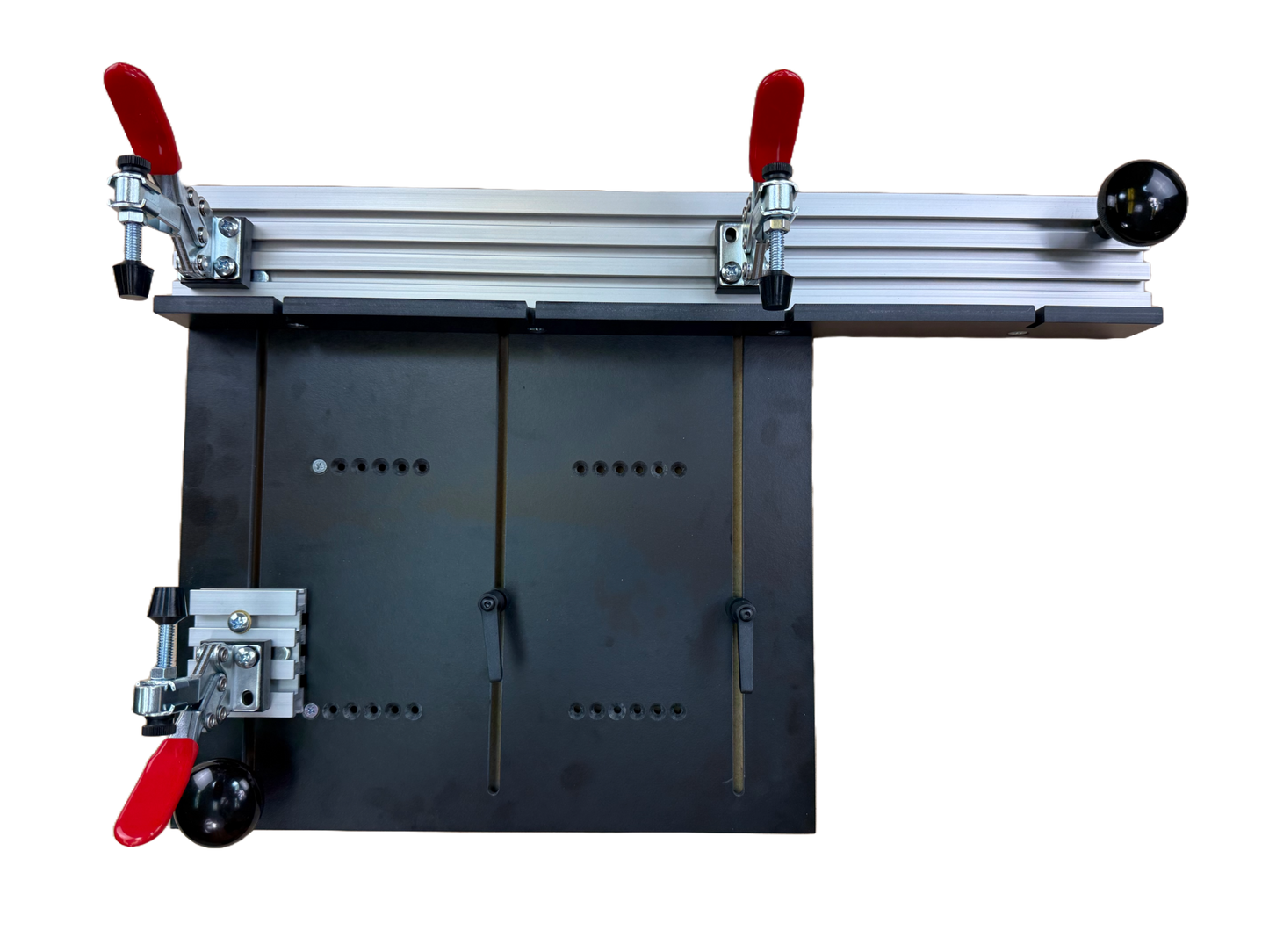

The Woodhaven Coping Sled is the safest and most accurate way to make cope cuts and other cross-cuts on a router table or shaper. Don't try to cope without it! Inboard Toggle Clamps can be positioned anywhere on the 24" long Ultra Track fence. Hold stock up to 1-3/4" thick, or 2-3/4" with optional 1" Riser Kit. Two adjustable feed handles provide firm control over the sled and your work. Optional 525S Flip Stop available for repetitive work.
- Our largest Coping Sled works on both the router and shaper, either in the miter slot or against the fence.
- Includes an 11-3/4" long 3/4" wide adjustable steel miter bar that mounts in 6 different locations for best placement. Can also be used without the miter bar against your fence.
- 525 Large Coping Sled holds stock up to 10" wide. Heavy duty 1/2" phenolic base (15-3/4" x 15-3/4") will not distort from clamp pressure.
- Features one 500 lb. Outboard Toggle Clamp and two 500 lb. Inboard Toggle Clamps to hold stock up to 1-3/4" thick.
Our products are made in the USA and include a Lifetime Guarantee against defects in material or workmanship. For product questions or a quote for shipping outside the continental US contact us by Phone 800-344-6657, Email Info@Woodhaven.com or Chat.
We use two of these for making raised panels. It is a very capable and well-built tool. Two wish-list items...There should be another set of miter bar holes drilled on the opposite side of the sled so it would be easy to set it up for left-to-right operation (reversible). Also is there anything in the works for an adjustable angle fence for angled copes?
great piece for the shaper professional grade material except for the miter bar set screws are nylon would be five star if they were of a more durable material so it can be more accurate
Got the large coping sled primarily for my shaper when doing sash building or cabinet doors, very effective, makes operations much safer and smoother, easier to control the feed rate as well on small stuff prone to tear out even with backing. Will definitely be ordering another for the router table.
This coping sled is well done and made of sturdy materials which should make it last a lifetime.
Great sled for the price. Very happy with the quality and quick shipping.
