SOSS Hinge Template - Select Hinge Size

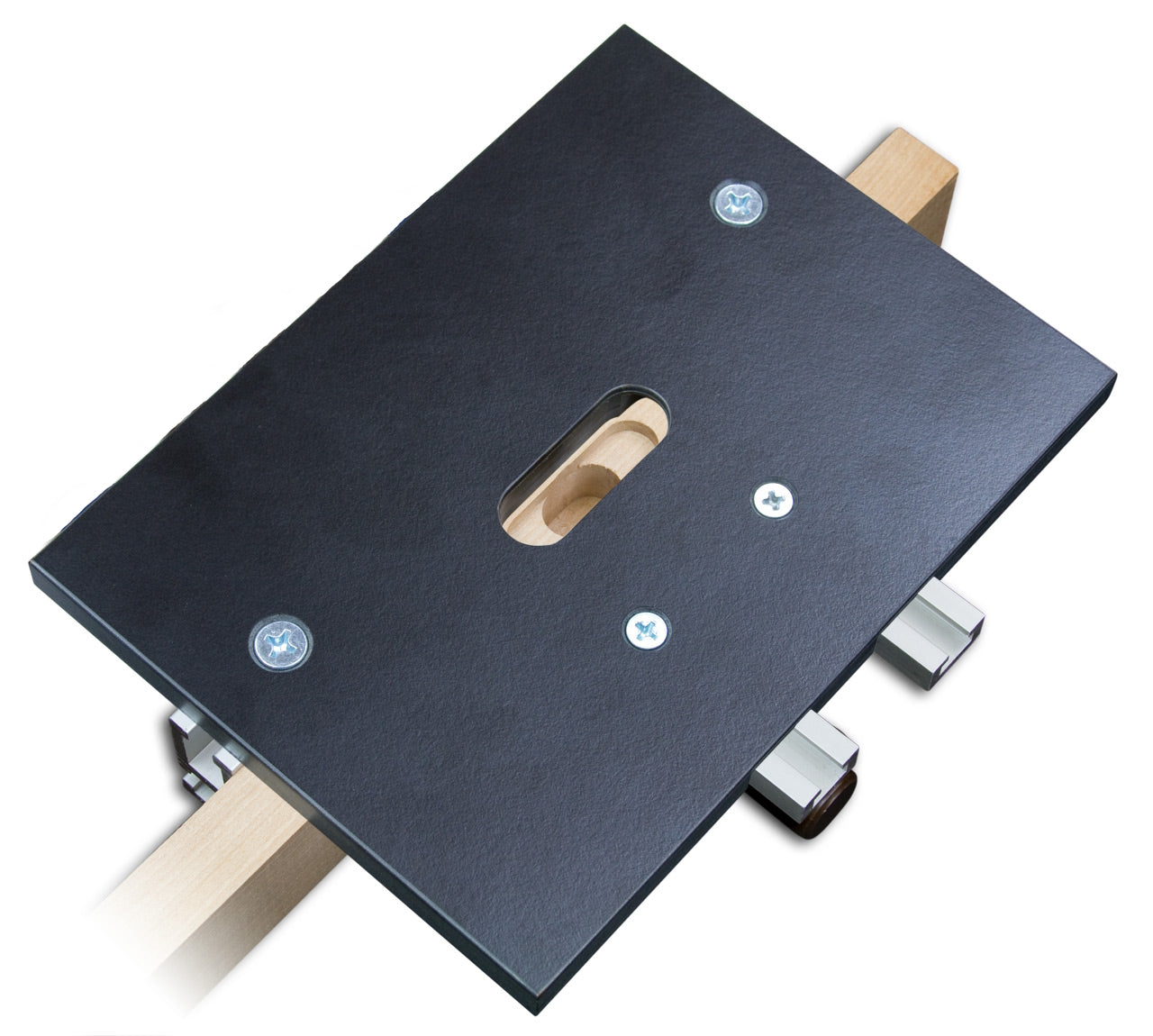

Our SOSS Hinge Template Jigs are the fastest, easiest and most accurate way to route the two-step mortises required for these unique hinges. Made of 1/2" phenolic for heavy duty use, they measure 5-5/8" x 7-3/4" for maximum router support. Includes an 8"-12 Double Track (depends on model) for mounting the jig and clamping it to your work. Clamps not included.

Optional 95" Double Track, PN 4095, available to mount multiple SOSS Hinge Jigs and Flip Stops. Optional 6507-6513-Centering Drill centers itself in the hinge screw mounting hole for a perfectly centered pilot hole.

• Each model is designed for a specific SOSS hinge, select from drop down.
• 8660 is for a SOSS 100 hinge - 3/8" wide x 1" long shallow mortise.
• 8661 is for a SOSS 101 hinge - 3/8" wide x 1-11/16" long shallow mortise.
• 8662 is for a SOSS 103 hinge - 1/2" wide x 1-1/2" long shallow mortise
• 8663 is for a SOSS 203 hinge - 1/2" wide x 1-3/4" long shallow mortise.
• 8664 is for a SOSS 204 hinge - 1/2" wide x 2-3/8" long shallow mortise.
• 8665 is for a SOSS 208 hinge - 5/8" wide x 2-3/4" long shallow mortise.
• 8666 is for a SOSS 212 hinge - 3/4" wide x 3-3/4" long shallow mortise.
• 8667 is for a SOSS 216 hinge - 1" wide x 4-5/8" long shallow mortise.
• 8668 is for a SOSS 218 hinge - 1-1/8" wide x 4-5/8" long shallow mortise.
• 8669 is for a SOSS 220 hinge - 1-3/8" wide x 5-1/2" long shallow mortise.
• 8670 is for a SOSS 504 hinge - 9/16" wide x 2-7/16" long shallow mortise.
• 8671 is for a SOSS 518 hinge - 1-1/4" wide x 4-5/8" long shallow mortise.

• 8660 & 8661 SOSS Jigs require a 3/8" solid carbide spiral upcut bit (our PN 15406 or equivalent) and a 5/8" Bushing & Locknut (our PN 5030K or equivalent), both sold separately.
• 8662, 8663 & 8664 SOSS Jigs require a 1/2" solid carbide spiral upcut bit 1" cut length (our PN 15407 or equivalent) and a 3/4" OD bushing (our PN 5032K or equivalent), both sold separately.
• 8665 thru 8671 SOSS Jigs require a 1/2" solid carbide spiral upcut bit 2" cut length (our PN 15410 or equivalent) and a 3/4" OD bushing (our PN 5032K or equivalent), both sold separately.
• If using a compact router with only a 1/4" collet you may use a 1/4" solid carbide spiral upcut bit (our PN 15204 or equivalent) and a 1/2" Bushing & Locknut (our PN 5025K or equivalent), both sold separately.
• If using your own bushing, make sure the nose isn't over 3/8" long.
• Hinge setback is built-in according to the manufacturers specs.

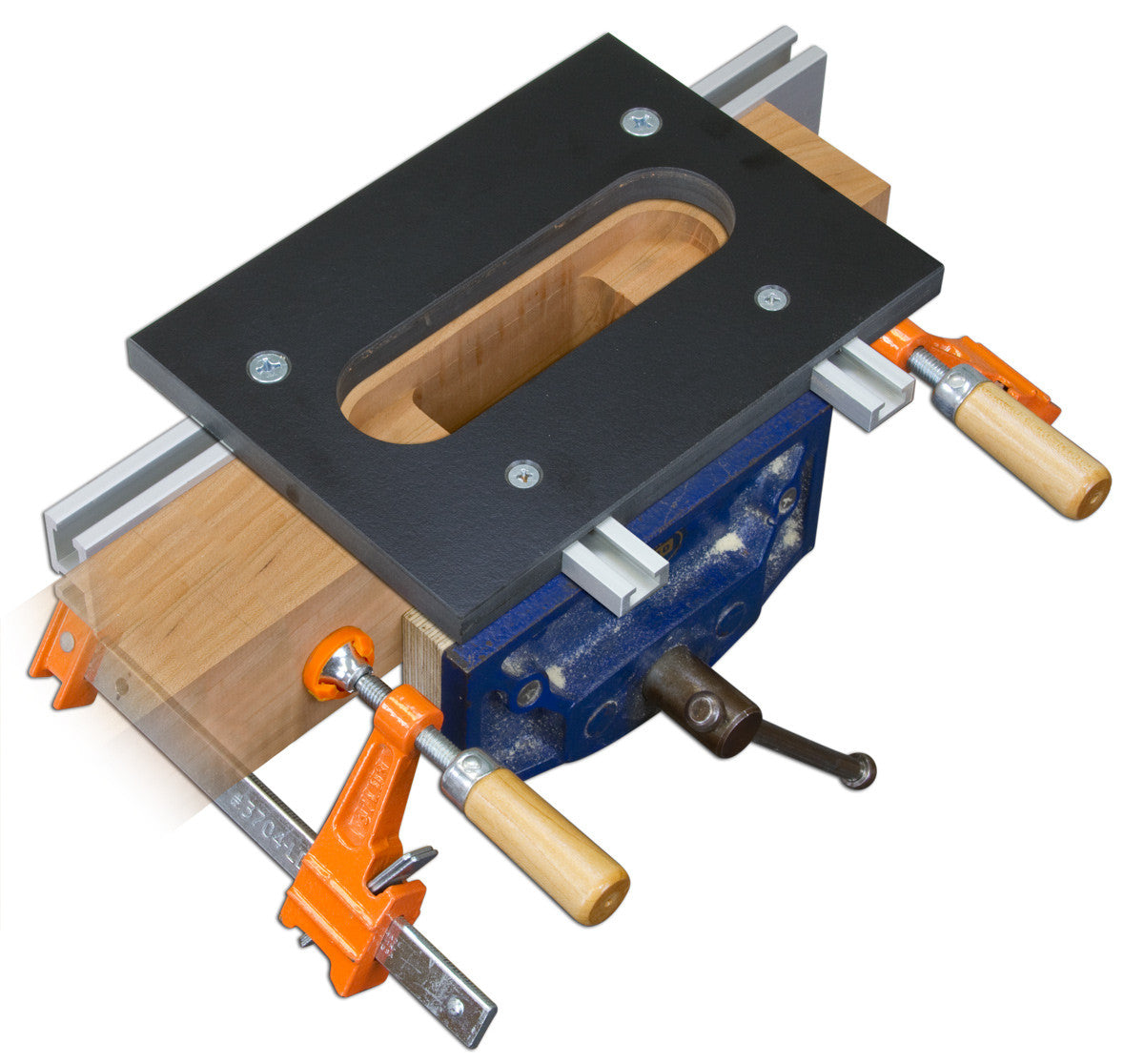

• Jig clamps to the work (no nail holes) and, using your plunge router, both the long/shallow and short/deep mortises are cut without moving the jig or part. Has two retractable stops for the short/deep mortise.

Here are links to our Spiral Up Cut Bits and Guide Bushings

For more information of the SOSS hinge visit their website at https://www.soss.com/invisible-hinge-product-overview/
