Oval Cutting Jig - Select Jig Size

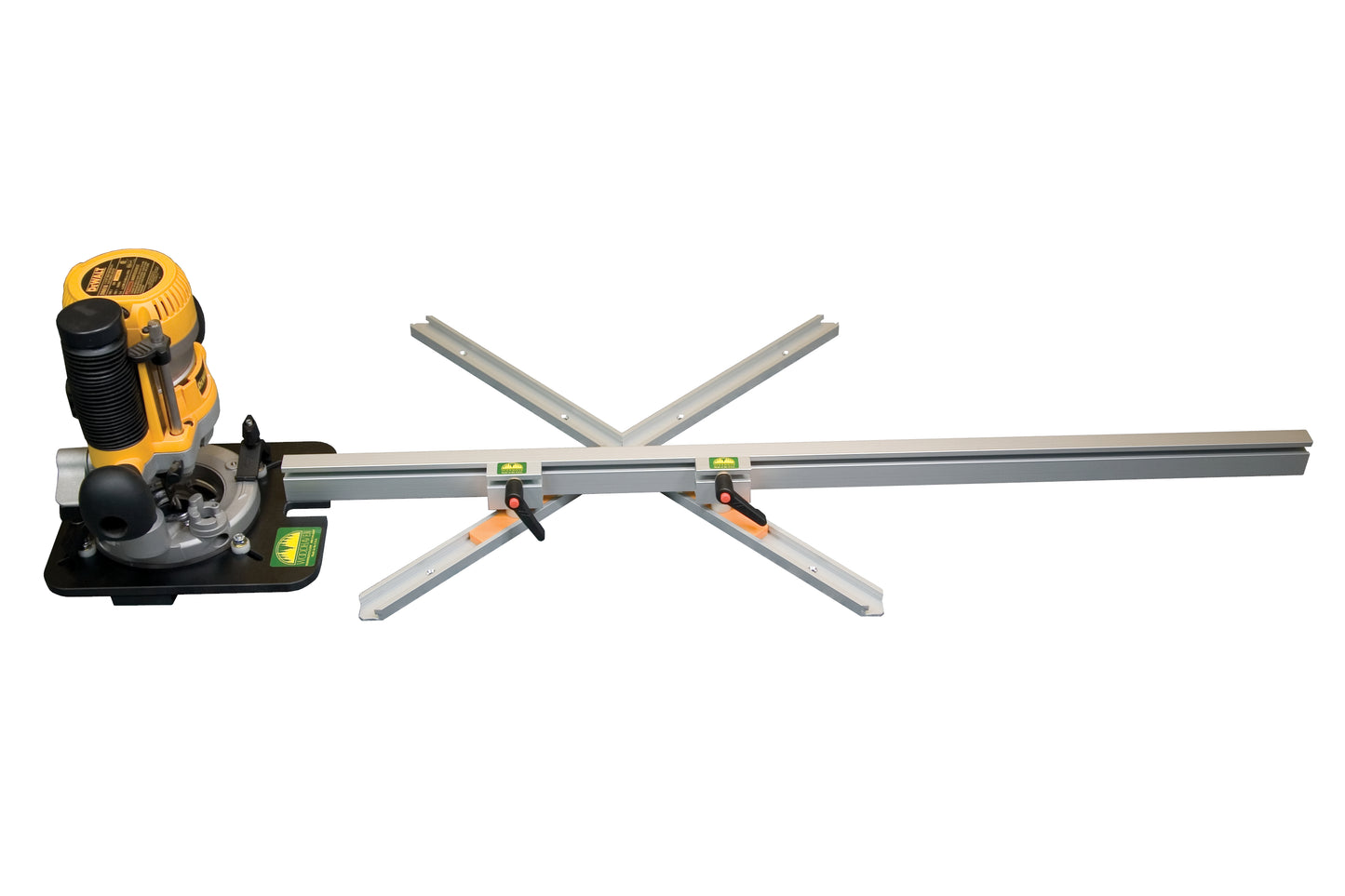

This oval cutting jig cuts different size ovals with a minimum of fuss. Easy to set-up use, the unique NoDrill plate doesn't tie up your router. Includes a pencil holder for drawing your oval prior to using the router plus a scale for easy measurements.

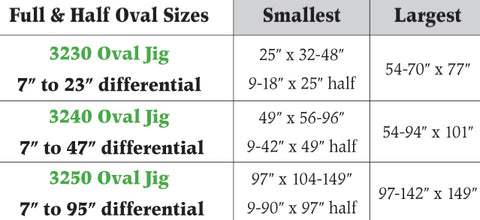

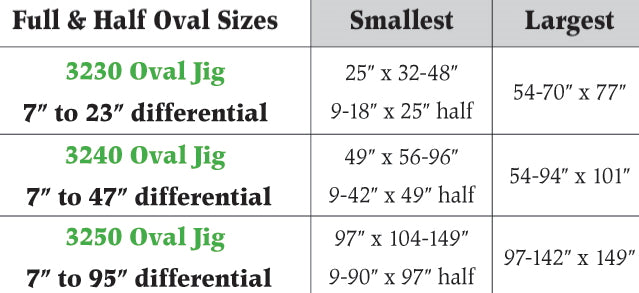

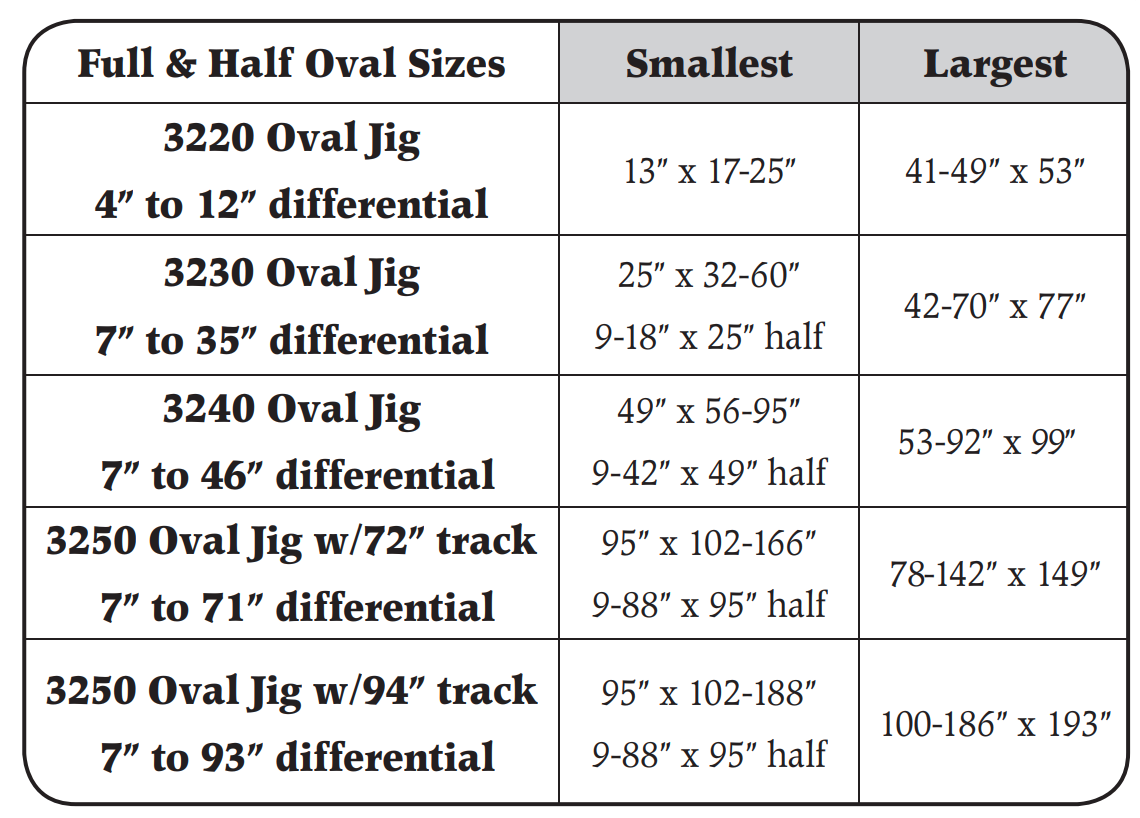

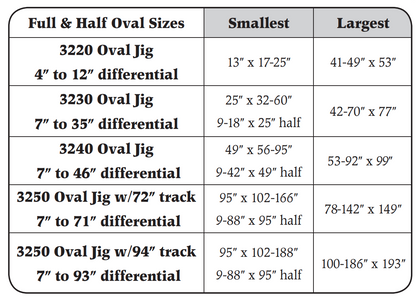

• Three models to choose from:
• 3230 includes a 36" track and cuts ovals up to 77" wide.
  • 12" long center T-track allows ovals down to 25" tall.
• 3240 includes a 48" track and cuts ovals up to 101" wide.
  • 24" long center T-track allows ovals down to 49" tall.
• 3250 includes a 72" track and cuts ovals up to 149" wide.
  • 12" long center T-track allows ovals down to 97" tall.
• If the height of your oval is less you will need to cut the T-tracks for the height.

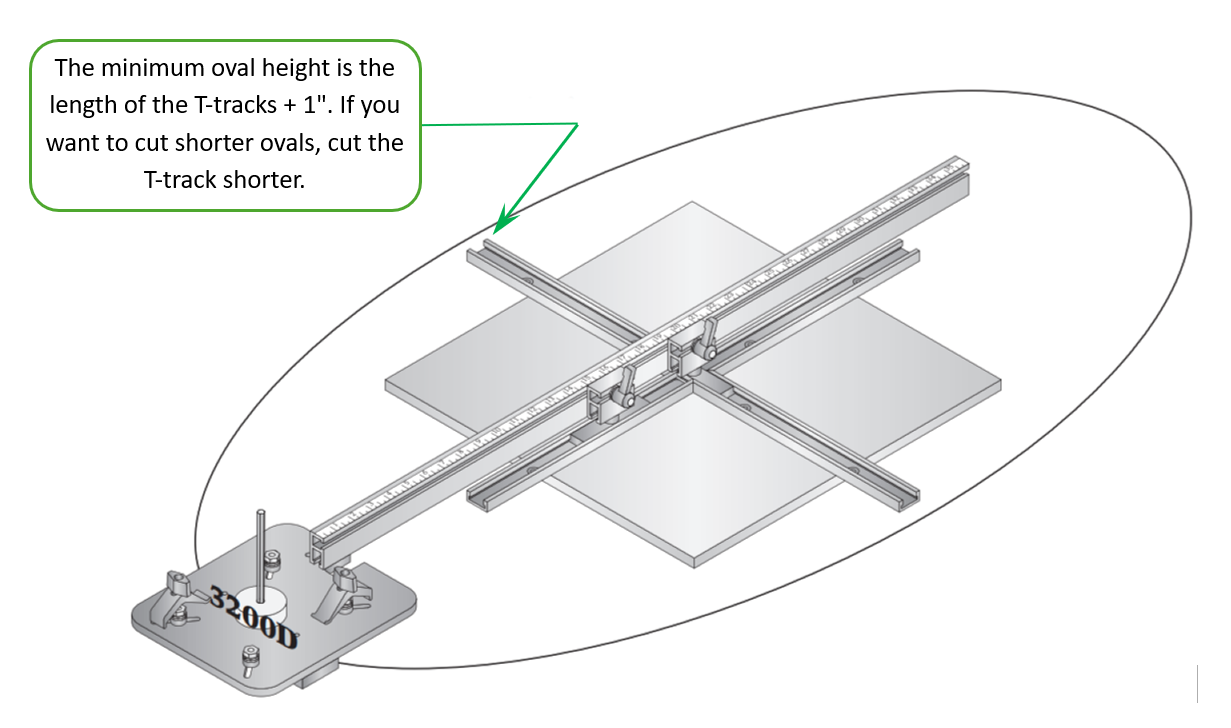

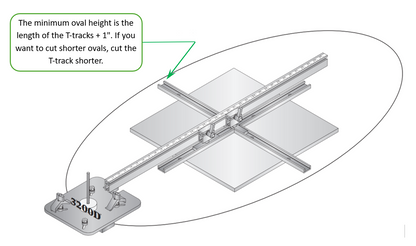

  • Minimum height is 1" over the length of the T-tracks.
• Ovals up to 197" are possible by purchasing a 95" section of our 4000 Double track contact us for more details.
• Router and bit not included.
