Woodhaven Miter Gauge Bar

The Woodhaven Miter Gauge bar is an excellent addition to any fixture you want to construct.  Our solide steel bar is zinc plated for long life.

Available in four configurations:

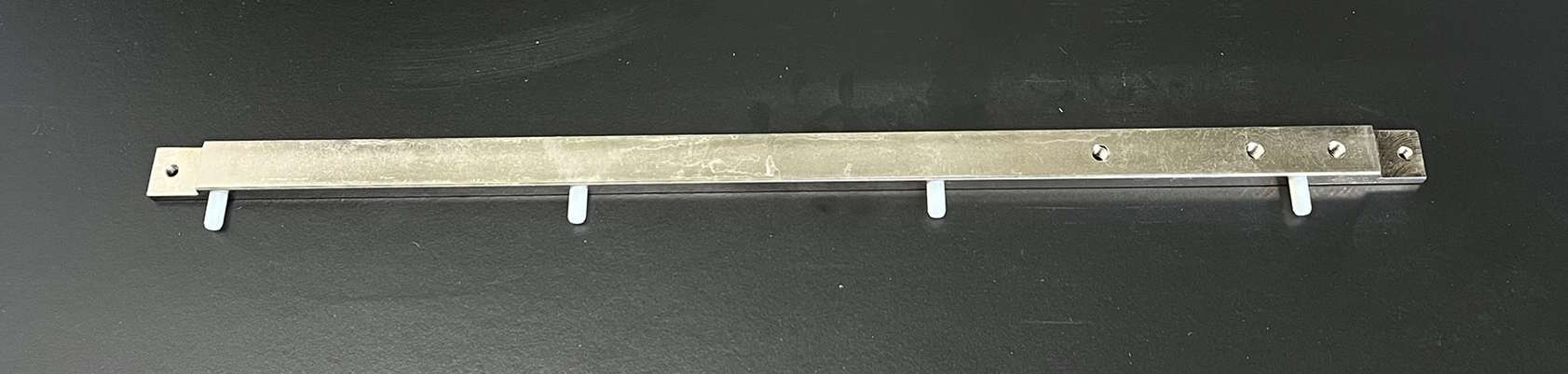

• 17-3/4" bar and nylon setscrews

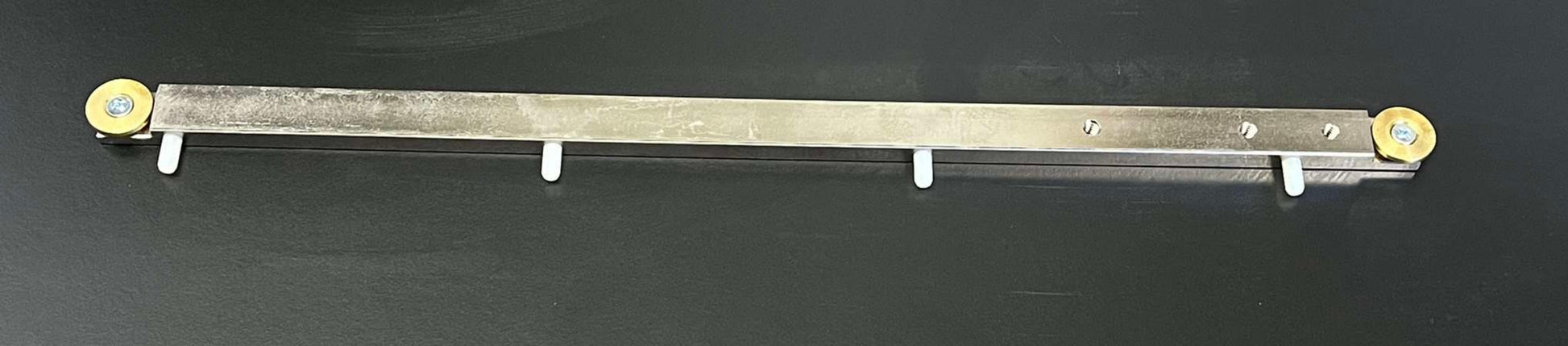

• 17-3/4" bar with nylon setscrews and two solid brass guide washers
• 23-3/4" bar and nylon setscrews
• 23-3/4" bar with nylon setscrews and two solid brass guide washers

The 23-3/4" long bar is perfect for keeping your fixture in the miter track.

MITER BAR SET SCREWS
Carefully install the nylon set screws (four or five 4900A’s - quantity depends on model purchased) by hand in the edge of the miter bar, starting them from the machined edge. Use a 1/8” allen wrench to turn the set screws until they protrude slightly from the smooth edge of the bar. Make fine adjustments to the set screws so the miter bar slides easily in the miter slot, but without any slop. We have included extra set screws for future use. If the side of your saws miter slot is rough, it will wear the nylon sets screws prematurely.

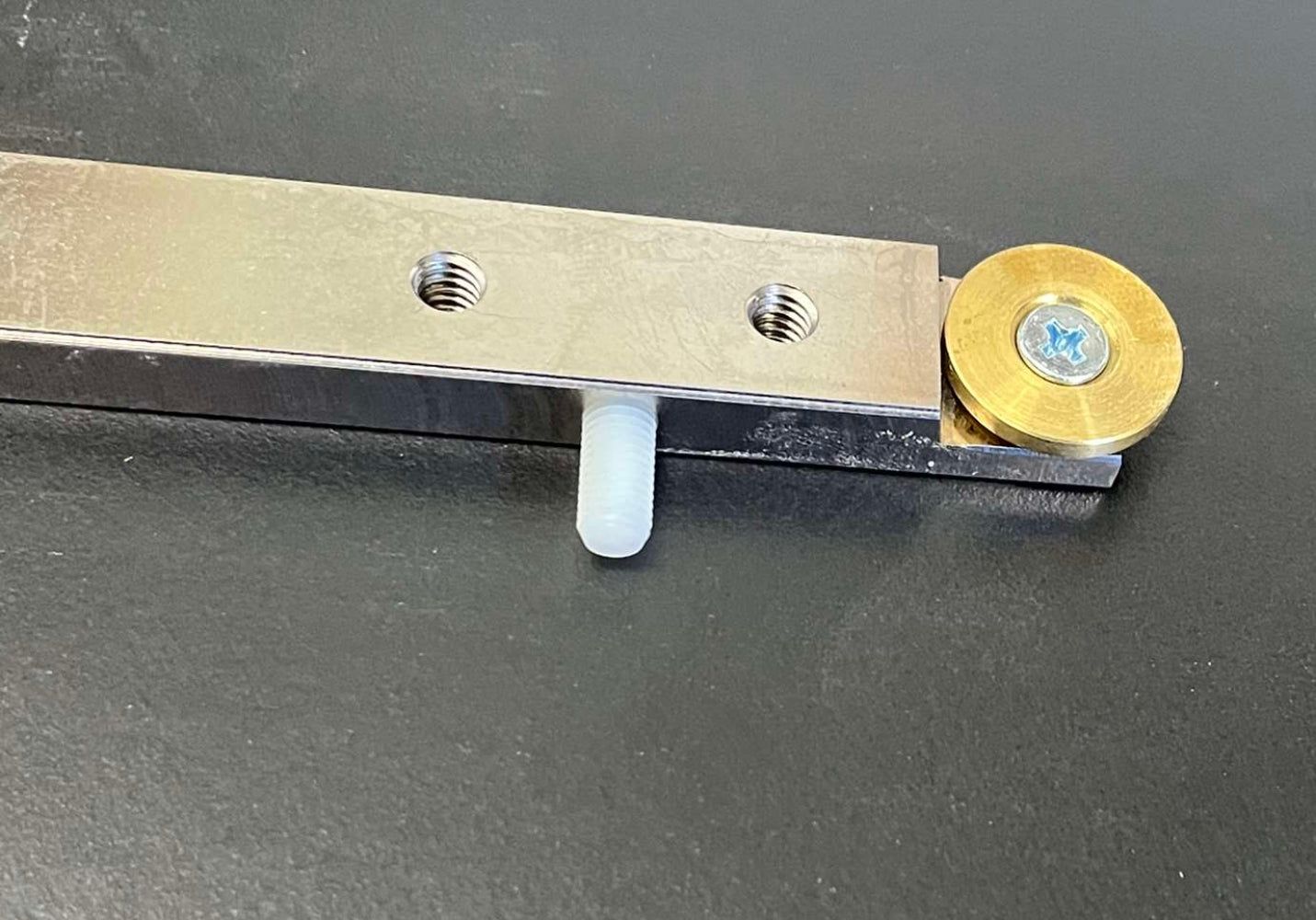

T-SLOT WASHERS
The two T-slot washers (4900G) are countersunk on both sides. This allows them to be reversed for mounting on a Powermatic or Delta style table saw. Install them using the 5/16” long screw (MF001).
