Woodhaven Double Track Planing Sled - Select size

  • 19999

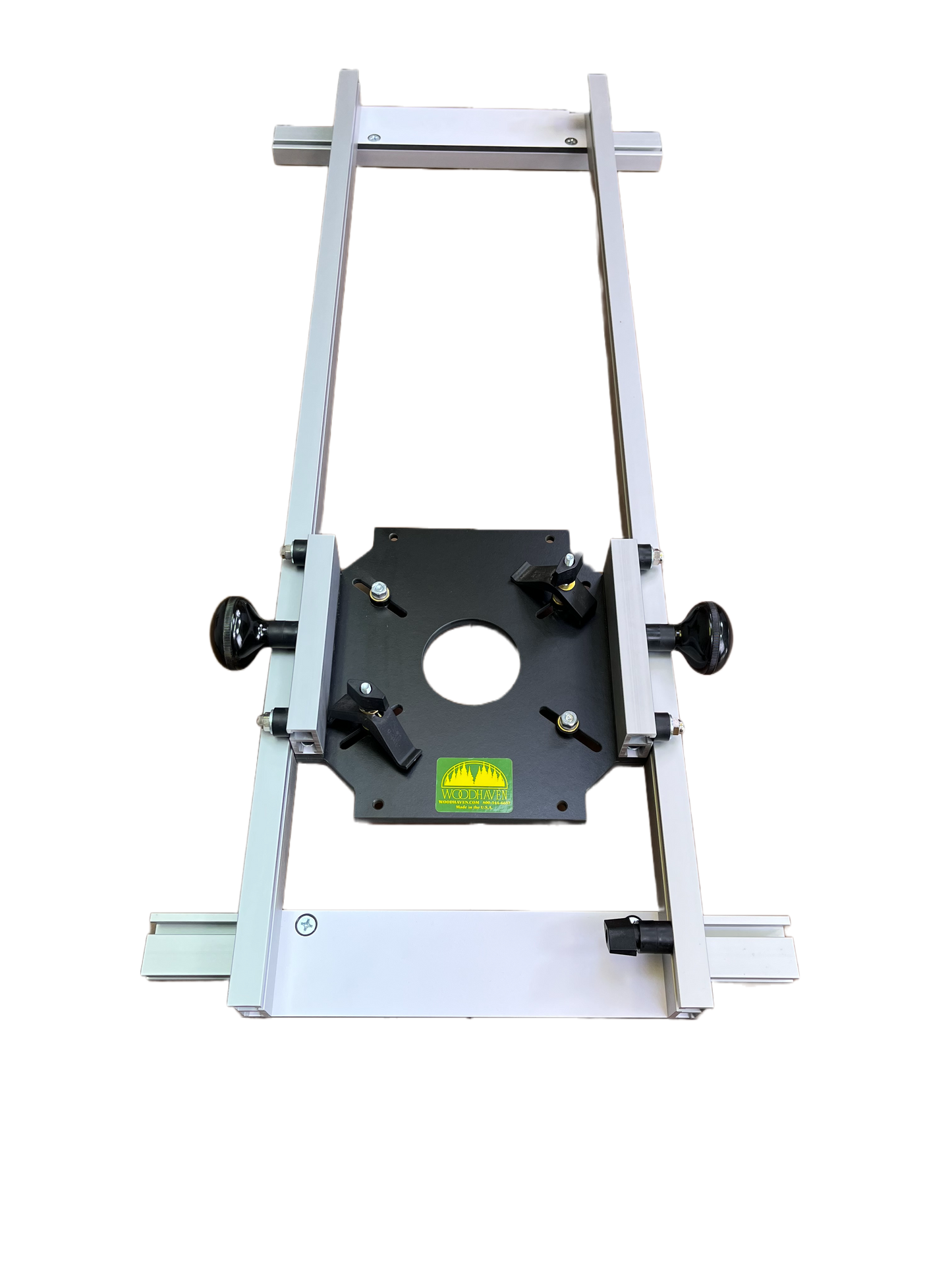

Double Track Router Planing Sled

Our Double Track Router Planing Sled is lower cost version of our popular Ultra Track planing sled.  The double track sled is an affordable solution for surfacing or milling smaller live-edge stock, surfacing cutting boards and other small projects. Two easy to use models to choose from. Each model will accommodate an unlimited length workpiece. You simply slide the sled down your support to make the next pass.

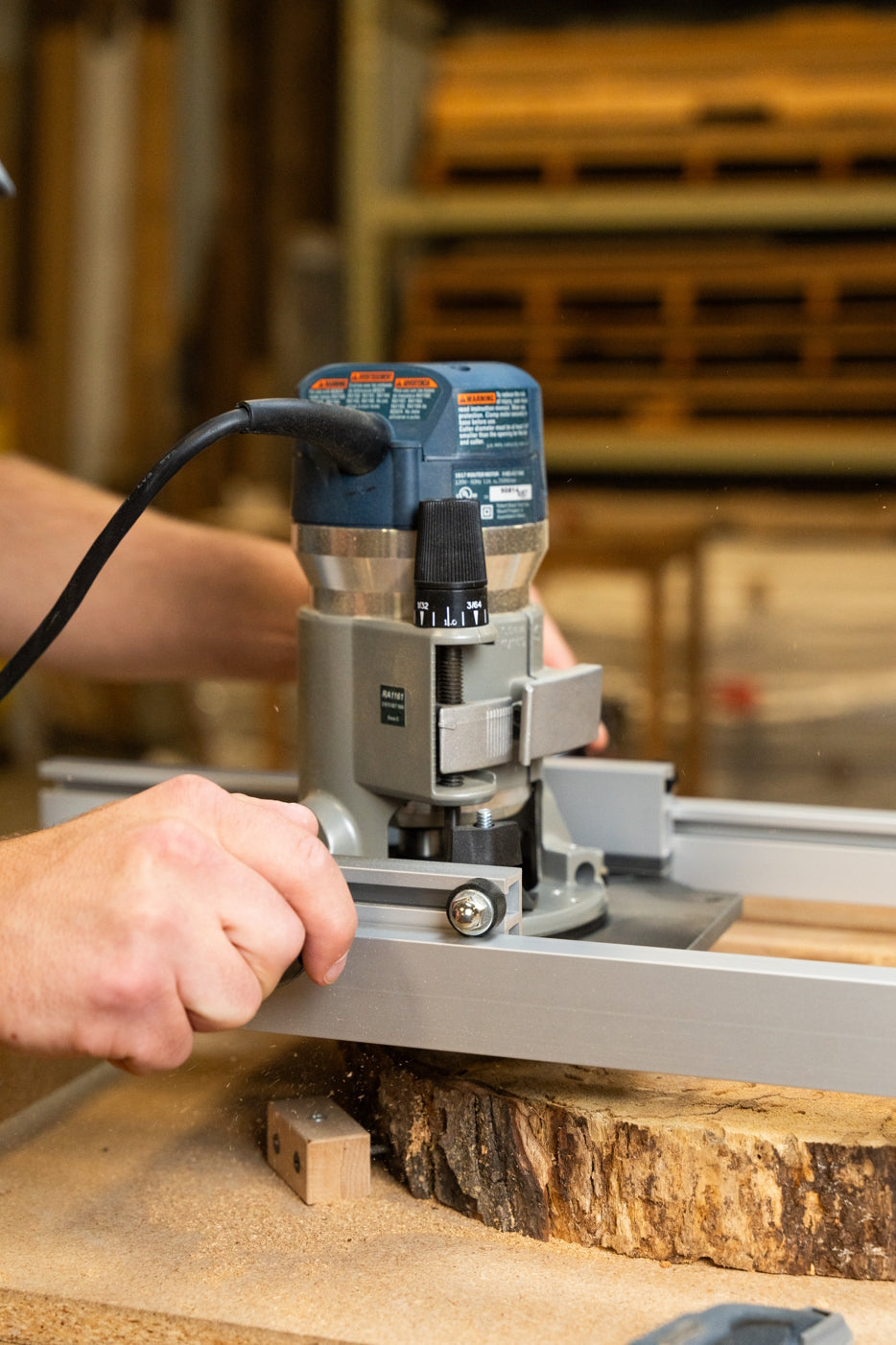

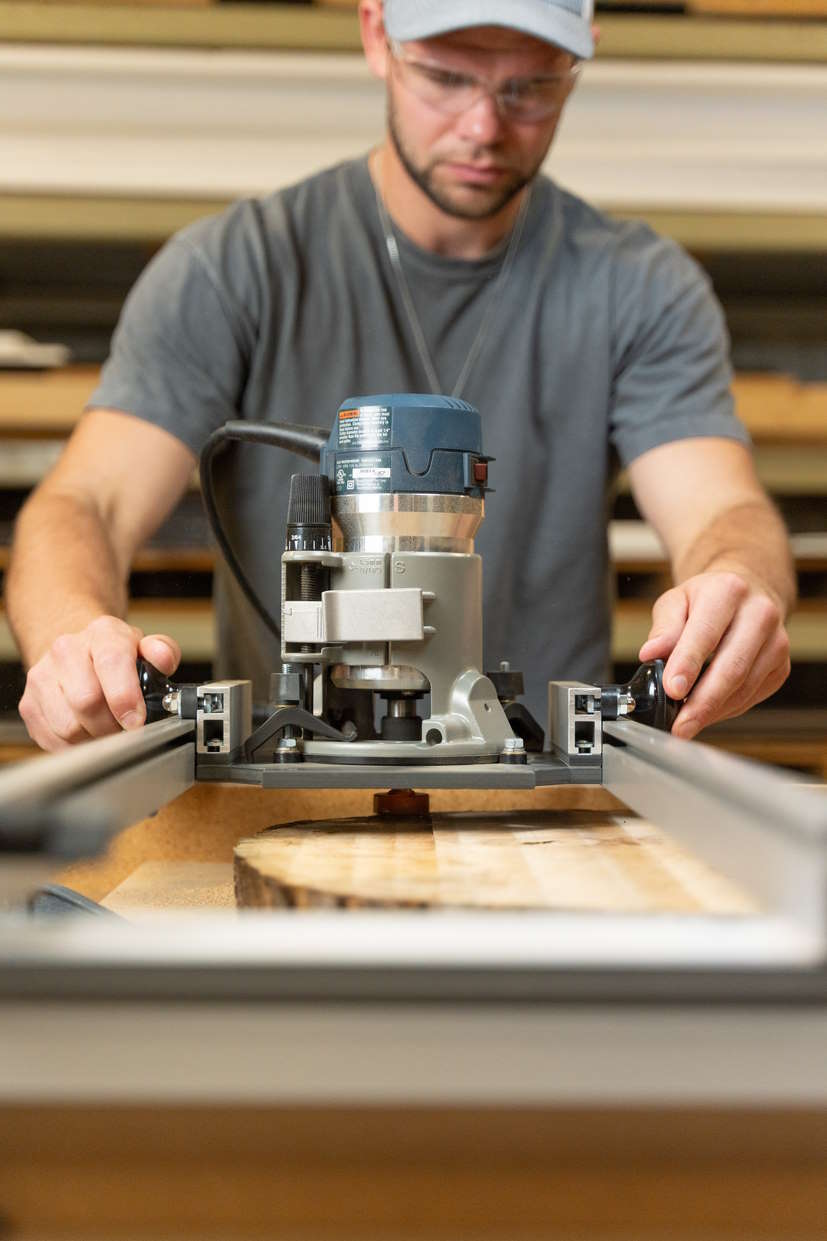

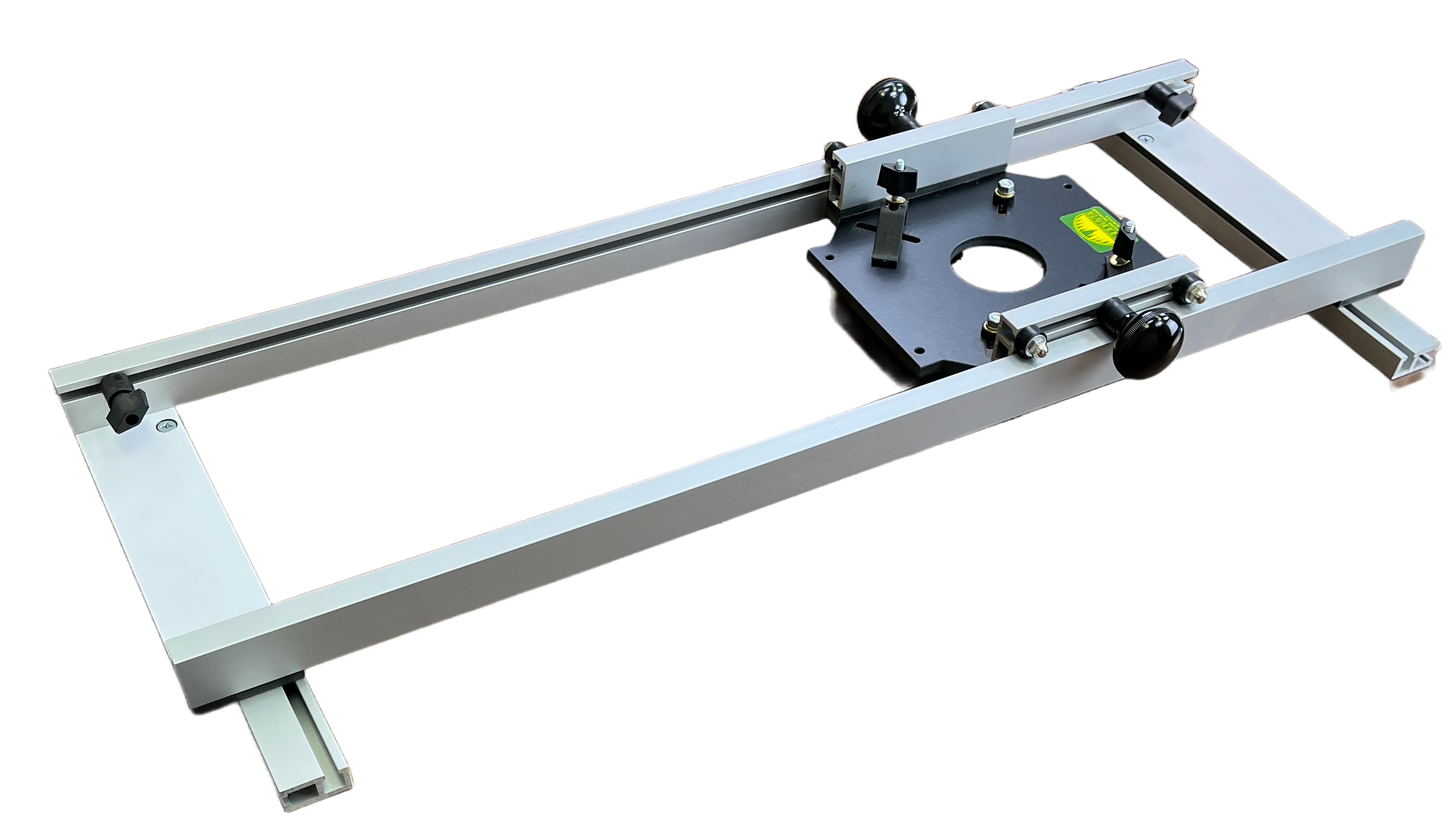

1-1/2" tall aluminum Double Track rails support your router as you guide it back and forth over the work piece. The aluminum Double Tracks support rails slide on top of wood rails that you provide or you can use our 3010 rail kit.

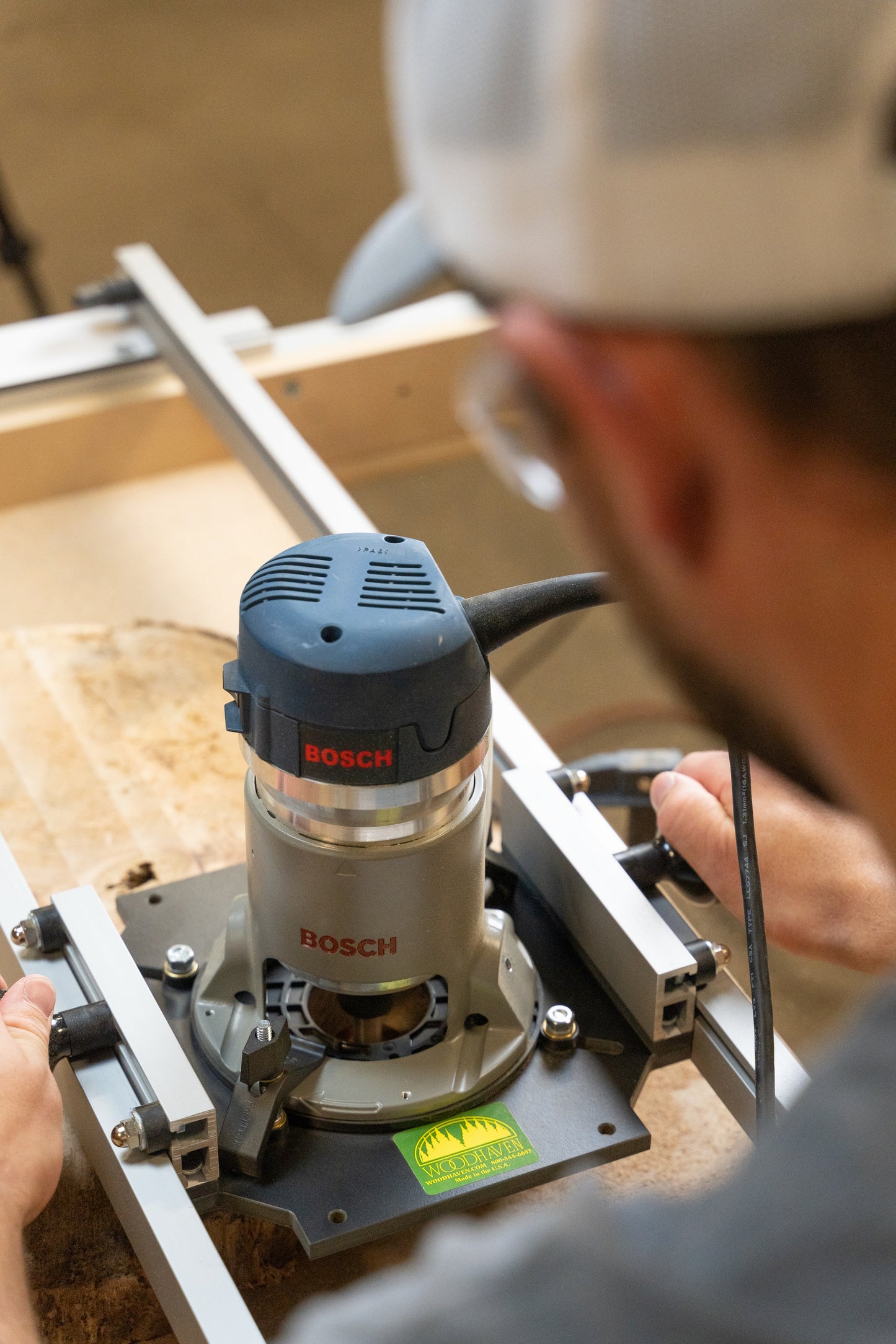

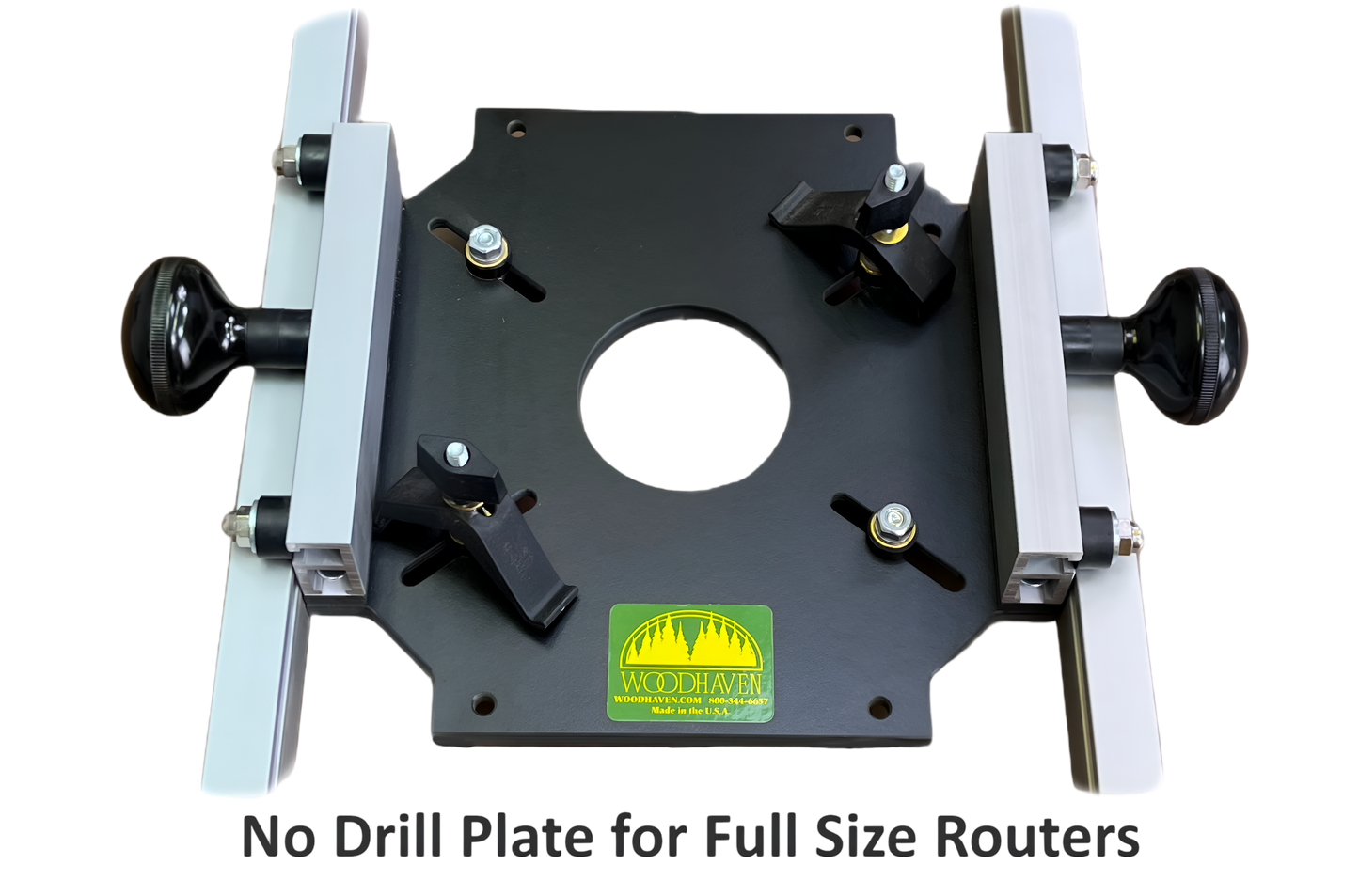

Includes a NoDrill Router Plate with a quick attach feature so your full size router can be quickly attached or removed.

Works with any router bit you supply that has an overall length of at least 2-1/2". Our optional 13600 up-shear router bit leaves a great surface finish! Has a 1-1/2" cutting diameter, 5/8" cutting length with a 2-1/2" overall length and a 1/2" shank.

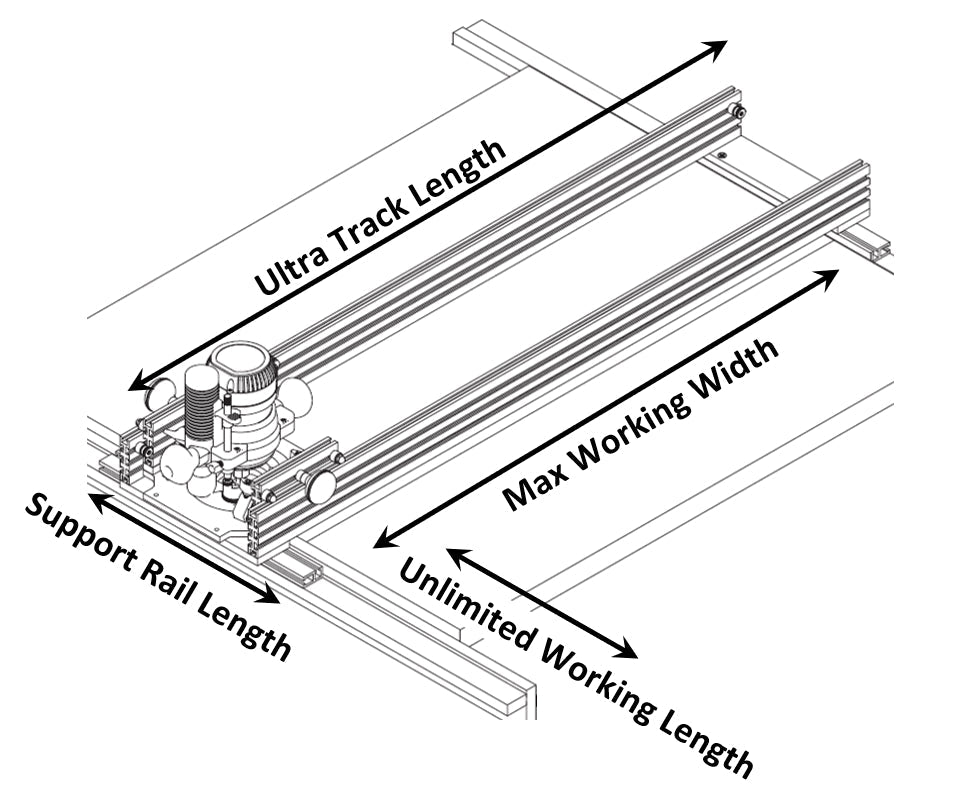

  • Four easy to use and very affordable configurations to choose from:
  • 3030: 15" max project width, 24" Double Track main rails, 12" support rails
    • With No Drill Mounting Plate for Full Size Routers
  • 3031: 15" max project width, 24" Double Track main rails, 12" support rails
    • With Blank Mounting Plate for Compact / Trim Routers
  • 3032: 27" max project width, 36" Double Track main rails, 16" support rails
    • With No Drill Mounting Plate for Full Size Routers
  • 3033: 27" max project width, 36" Double Track main rails, 16" support rails
    • With Blank Mounting Plate for Compact / Trim Routers
  • Great solution for surfacing smaller boards and other smaller projects
  • Router, Bit and wood rails not included.

 Lifetime guarantee against defects in material or workmanship. Made in the USA! For product questions or a quote for shipping outside the continental US call 800-344-6657 or email Info@Woodhaven.com

 This video of our Ultra Track sled explains the design and how the sled is operated.
