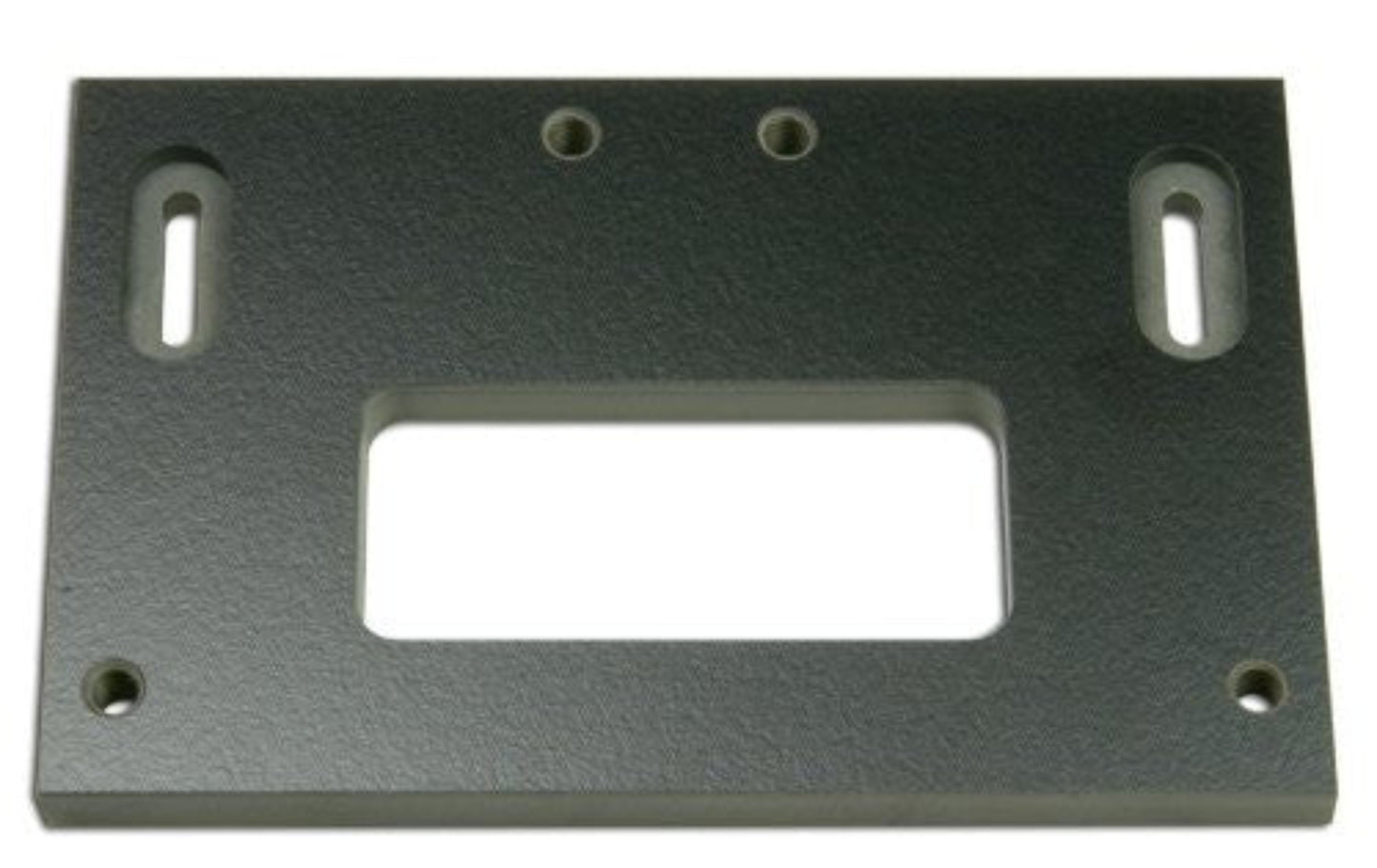

8581 Dead Bolt Plate Template

Woodhaven 1-1/8" × 2-3/4" Dead Bolt Plate Template Jig

Our heavy-duty Hinge Jigs are the fastest, easiest, and most accurate way to rout hinge, strike plate, and lockset mortises. Our Template guide uses a bearing-guided bit (8500 or 8505 – sold separately), or a bushing and bit combination (5030K & 13416 – sold separately) to follow the jig precisely.

Each jig attaches to a 3/4" wood fence (not included) with the provided hardware. The fence ensures clean, chip-free cuts and easy positioning. Two screw-in indexing pins set the backset and keep the jig square to the fence.

Key Features:

• 1-1/8" × 2-3/4" Dead Bolt Plate Jig
• Quick, accurate, and affordable method to cut dead bolt mortises
• Clamps to your work no nails or surface damage to your door jamb
• Made from rugged 3/8" thick phenolic
• Jig dimensions: 3-5/8" × 5-5/8"
• Multiple jig sizes available for different applications
