8575 1-1/8" x 2-1/4" Lockset Template

Woodhaven 1-1/8" × 2-1/4" Lockset Template

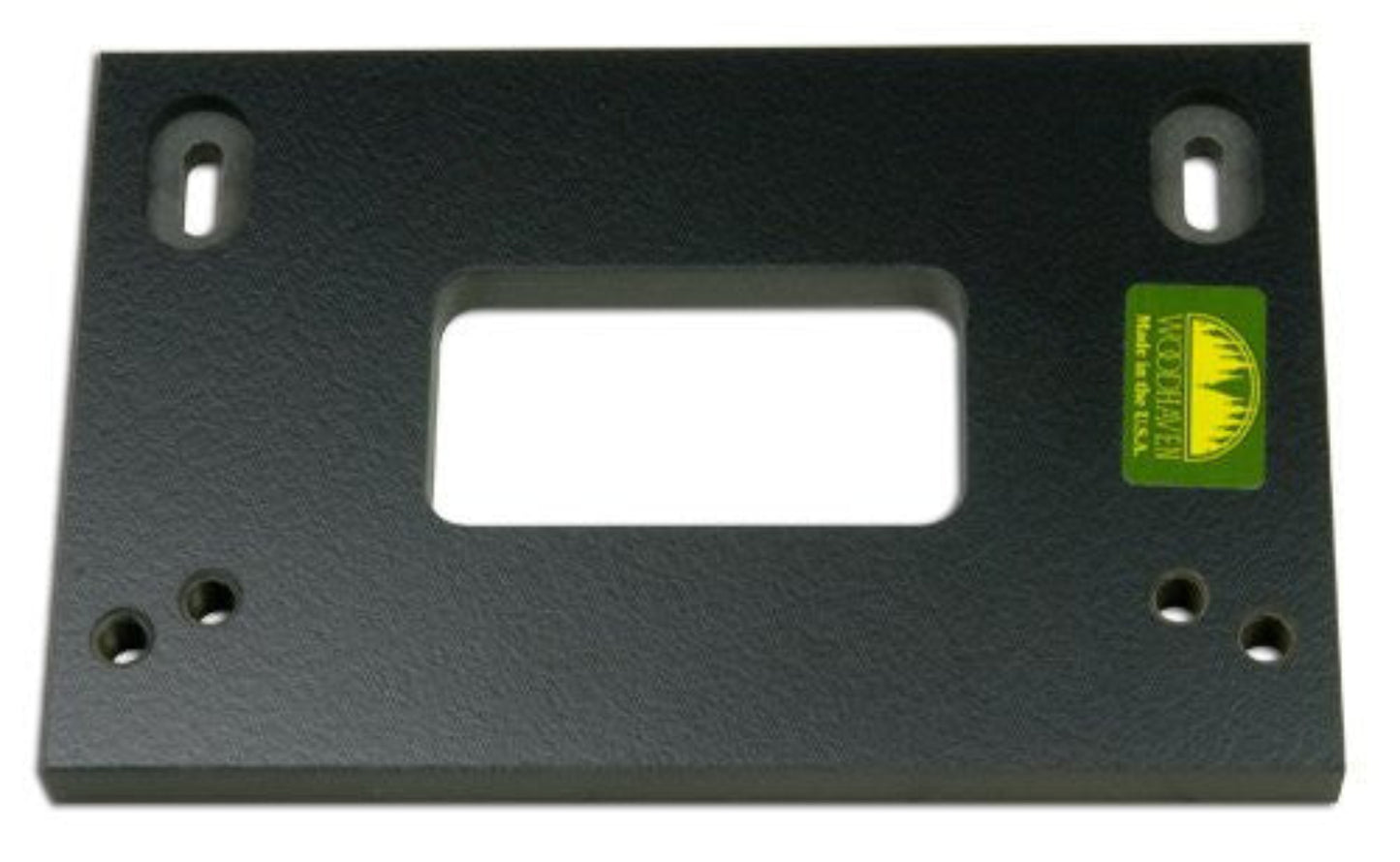

The 8575 1-1/8" x 2-1/4" Lockset Template is designed for precision and efficiency in woodworking projects. This heavy-duty hinge jig simplifies routing hinge, strike plate, and lockset mortises with unmatched accuracy. Our Template guide is compatible with a bearing-guided bit (Woodhaven 8500 or 8505, sold separately) or a guide bushing and bit combo (5030K & 13416, sold separately), it delivers clean, repeatable cuts every time. The jig mounts securely to a user-supplied 3/4" wood fence using included hardware, which reduces tear-out and ensures easy, precise positioning. Two screw-in indexing pins allow quick backset adjustments and keep the fence perfectly square to the jig, making it an essential tool for any woodworker seeking reliable, professional results.

Key Features:

• This template is for a 1-1/8" × 2-1/4" Lockset
• Fast, accurate, and affordable way to rout lockset mortises
• Clamps to the workpiece no nail holes or surface damage in your door jamb
• Made from durable 3/8" thick phenolic
• Jig measures 3-5/8" × 5-5/8"

Additional sizes and models available
