783 Inch Shelf Pin Jig

783 Inch Shelf Pin Jig

Regular price $ 51.49
Regular price Sale price $ 51.49
Sale Sold out

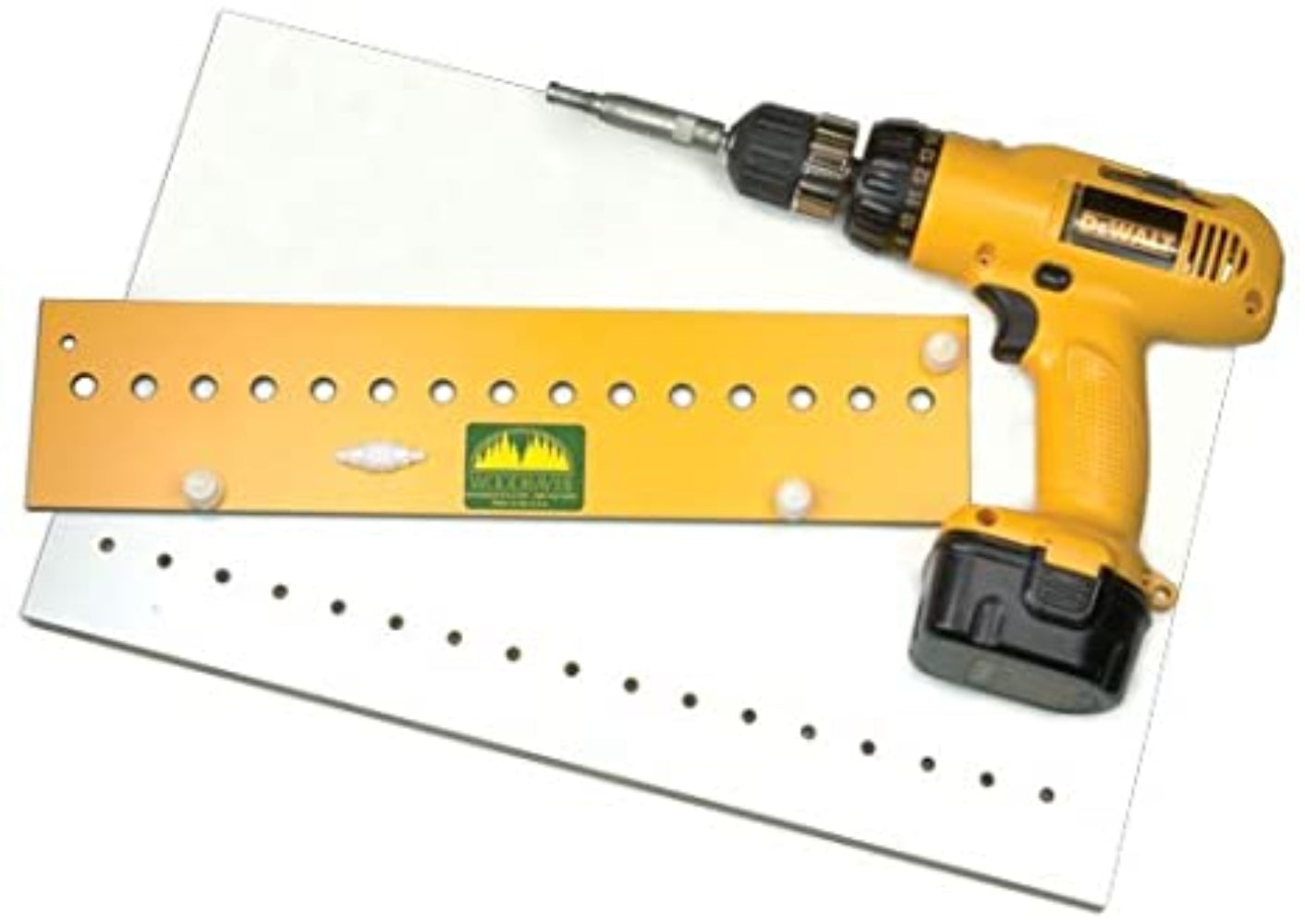

Our 783 Shelf Pin Jig has 31 holes spaced 1" on center and 1-1/2" from the edge.

  • Can be used to make 5mm or 1/4" shelf pin holes with appropriate bit. This jigs compact size lets you use it in the tightest quarters.
  • Lets you rout or drill either 5mm or 1/4" shelf pin holes. Drilling is easiest if your cabinet is already assembled. Routing is faster and produces a slightly cleaner/squarer hole on unassembled parts.
  • Jig accepts 3/8" OD self-centering drills (order separately), or a guide bushing & router bit (order separately).
  • Made of tough 1/4" thick phenolic.
  • Drill NOT included.

All products are Made in the USA and have a lifetime guarantee against defects in material or workmanship! For product questions or to quote shipping outside the continental US call 800-344-6657 or email info@Woodhaven.com

View full details

Customer Reviews

Based on 10 reviews
60%
(6)
40%
(4)
0%
(0)
0%
(0)
0%
(0)
D
Doreen

Good quility

S
Stephen Grzesik

Does what it says it does, easy to use.

S
Steve

Great item with a short learning curve. Best to use a clamp.

m
my72mali

Did the job with a little modification. The holes were too small from the collar of the Milescraft bit. Had to enlarge the holes slightly. Drilled several hundred holes with it.

j
joel martinez

excellent
