782 Metric Shelf Pin Jig
782 Metric Shelf Pin Jig
Couldn't load pickup availability

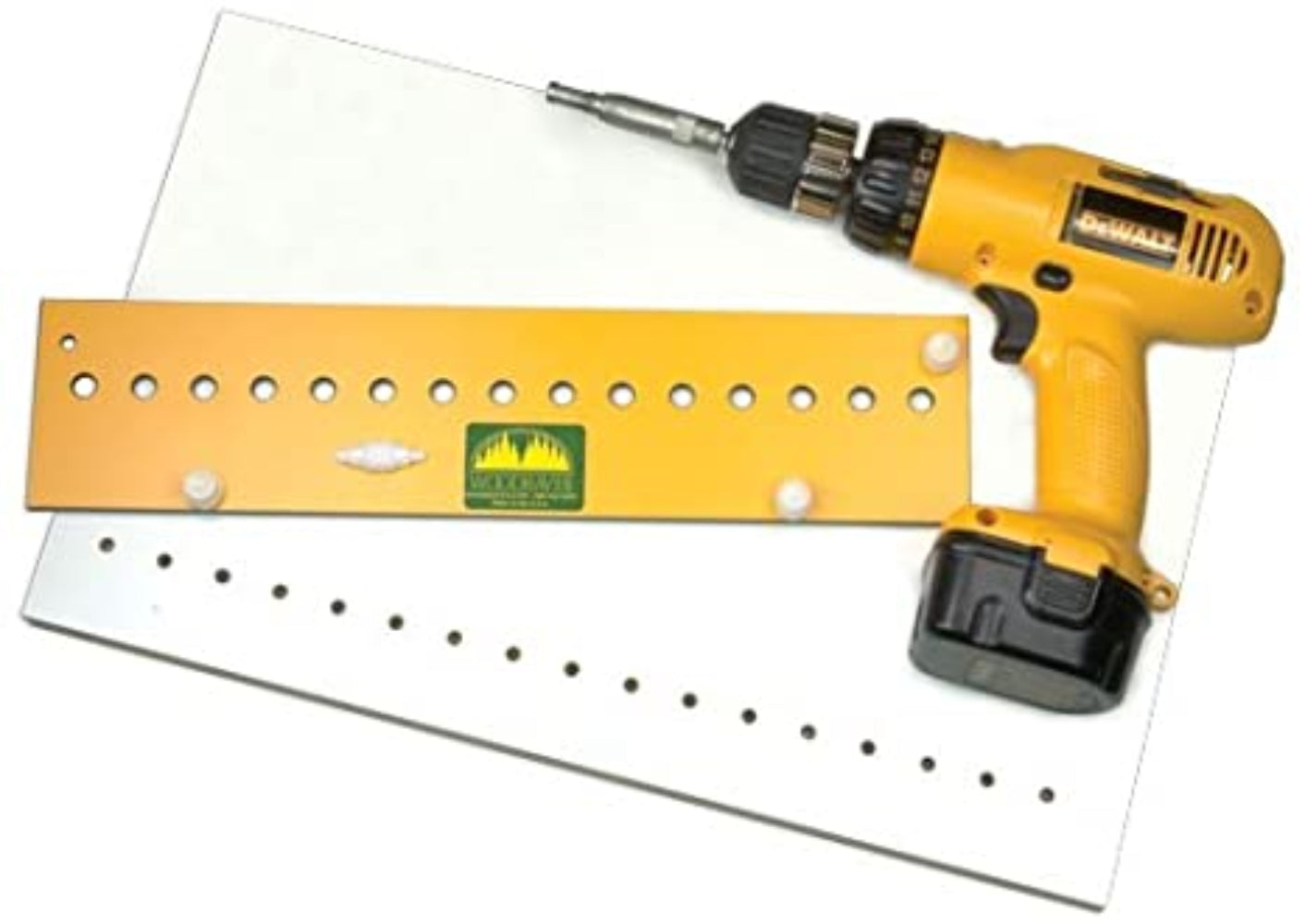

Our 782 Shelf Pin Jig has 12 holes spaced 32 mm (1.26") on center and 37 mm (1.46") from the edge.
- Can be used to make 5mm or 1/4" shelf pin holes with appropriate bit. This jigs compact size lets you use it in the tightest quarters.
- Lets you rout or drill either 5mm or 1/4" shelf pin holes. Drilling is easiest if your cabinet is already assembled. Routing is faster and produces a slightly cleaner/squarer hole on unassembled parts.
- Jig accepts 3/8" OD self-centering drills (order separately), or a guide bushing & router bit (order separately).
- Made of tough 1/4" thick phenolic.
- Drill NOT included.
All products are Made in the USA and have a lifetime guarantee against defects in material or workmanship! For product questions or to quote shipping outside the continental US call 800-344-6657 or email info@Woodhaven.com
does the job, good deal for the money
Excellent.
Nice jig, simple, accurate and works very well. Make sure to get a good quality 3/8" OD self centering bit with a 5mm drill included. You cannot just use a 5mm bit in your drill and use it in this jig.
This jig worked well for me. Although it includes an alignment pin and aligment screws, I only used the pin because I found it easy to clamp one or two straightedges to the workpiece to keep the jig aligned. I used a plunge router with an up spiral bit. I prefer the plunge router since it is very fast and cuts very clean, but I have a self aligning drill bit bit in case I am using this jig in a more confined space. Although this jig is a bit small, the fact that it is simply a flat rectangle makes it more versatile in my opinion when you have clamps and a variety of straightedges at your disposal. This ig is made of a very durable plastic. I like it.
This jig is simple, which I prefer, and works very well. It makes shelf pin drilling very easy when paired with a template bit. I only wish they had a longer version...this is a little short for a full sized cabinet; requires too many transfers. It could also stand to ship with a second pin to make mid-sheet transferring easier/faster.
