6002 Horizontal Router Table & Angle Ease for 3.5" Diameter Motor

The Woodhaven 6002 Horizontal Router Table includes the Angle-Ease tilting mount, allowing you to tilt your router motor up to 45 degrees up or down for angled mortises, chamfers, and other operations impossible on a standard router table. Fits any router with a 3.5 inch diameter motor including the Porter Cable 690 and 892, DeWalt 616, and Bosch 1617 and 1618. For non-angled horizontal routing work see the Woodhaven 6000. Router not included

The 6002 Horizontal Router Table has a maximum bit adjustment above the table of 6-3/4" to 11-1/2" (measured at 90º; - depends on orientation of Angle-Ease on the plate) to router bit center. Assembled size 23-3/4" wide, 18" deep and 24" tall. Weighs 34 lbs. without a router installed.

• Solid phenolic top is 3/4" x 15-5/8" x 23-3/4" and has a 3/8" x 3/4" miter slot. Bit opening is 2-1/2" wide x 3-3/8" long and includes two zero-clearance inserts.
• Fine height adjuster has a 1-3/8" range and moves the router and bit 1/16" per revolution.
• Solid phenolic sides provide greater stability and strength. Knobs on crank brace provide easier & faster coarse height adjustments.
• Hold-Down and Hold-In clamps included to achieve safe and consistent results when you are machining moldings. 2-1/2" shop vac hookup with under-table dust channels to help direct debris to the outlet.

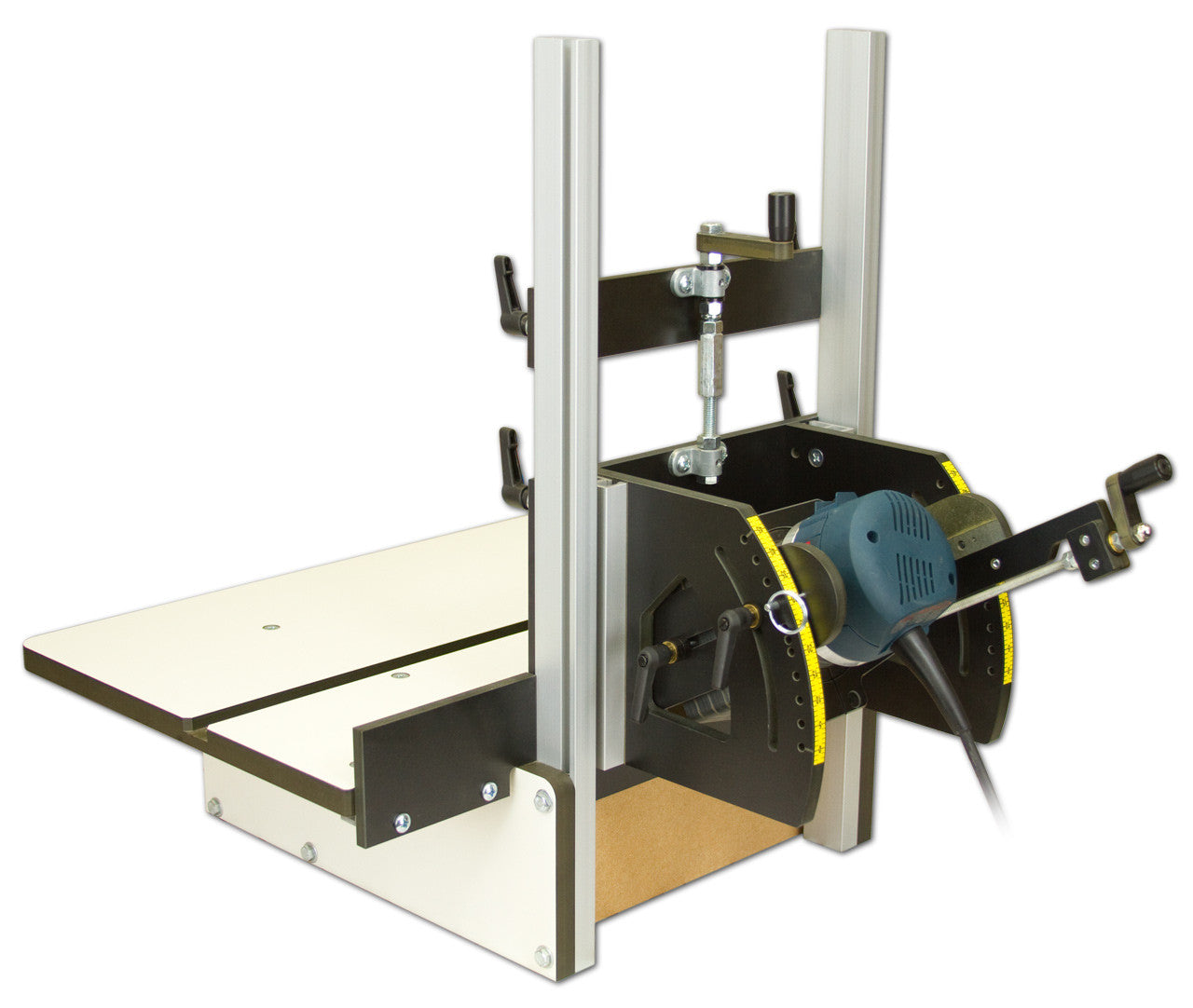

• The 6002 Horizontal Router Table with Angle-Ease allows you to tilt the router motor up to 45º (up or down). It holds any router with a 3.5" diameter motor (not included). The Porter Cable 690 & 892, DeWalt 616 and Bosch 1617/18 have a 3.5" diameter motor.
• Router not included.
