5457K HD Cathedral Door Jig and Template Kit

5457K HD Cathedral Door Jig and Template Kit

Regular price $ 481.99
Regular price Sale price $ 481.99
Sale Sold out

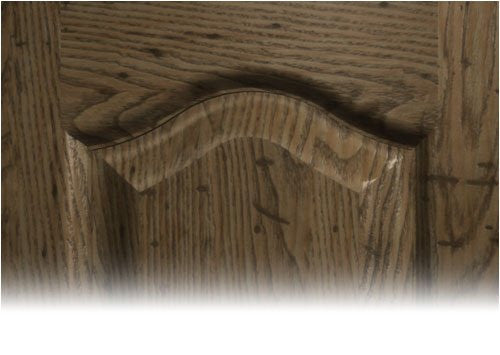

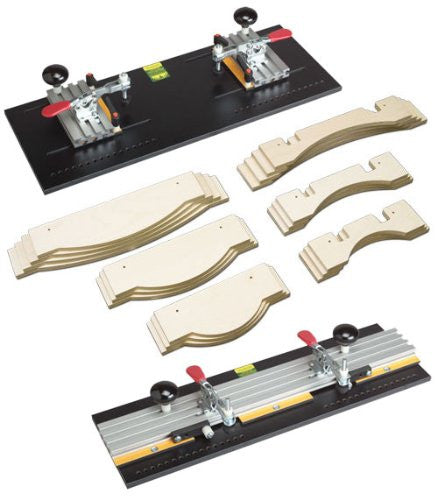

Our 5457 HD Cathedral  Door Templates (1-3/4" rise) along with the 5432 HD Panel Master and 5433 HD Frame Master.

  • Save compared to separate prices!

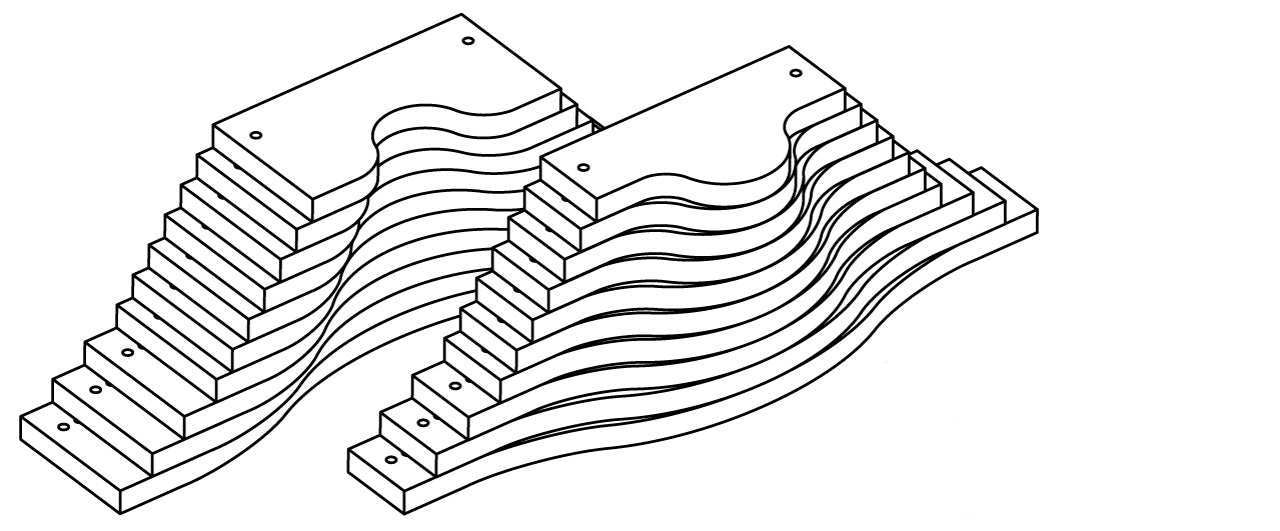

  • Twenty templates per set. Can be used on a Shaper or Router.
  • Designed for 6" to 20" parts, or assembled doors 9-3/4" to 23-3/4" based on a 3/8" deep cope joint and a 2-1/4" wide stile.

How to Easily and Accurately Create Custom Cabinet Doors

Crafting custom cabinet doors doesn't have to be a daunting task when you have the right tools at your disposal. By using our comprehensive template set, you can achieve professional-grade results with ease.

Step-by-Step Process:

  1. Select the Appropriate Template Set: Look for a set that offers versatility, allowing you to create cabinet doors ranging from 9-1/2" to 22" in width. A set with a variety of templates will give you the flexibility to explore different designs and adapt to various projects.

  2. Utilize High-Quality Materials: Choose templates made from durable materials such as Baltic Birch. This ensures the templates are robust enough to withstand repeated use while maintaining precision.

  3. Pair with the Right Tools: Use these templates with any standard door-making router bits. This compatibility allows for seamless integration into your existing toolkit, ensuring that you can cut doors to exact specifications without hassle.

  4. Precision in Design: Make sure each template includes both rail and panel layouts. This eliminates guesswork and minimizes errors, providing clear guidance for cutting doors accurately every time.

  5. Consistent Arches: Use templates where arches maintain a uniform height, typically around 1-3/4". Consistent arches contribute to the cohesive look of your custom designs.

By following these steps and using a reliable set of templates, you can achieve stunning custom cabinet doors that reflect both precision and style without the frustration sometimes associated with custom woodworking.

View full details

Our products are made in the USA and include a Lifetime Guarantee against defects in material or workmanship. For product questions or a quote for shipping outside the continental US contact us by Phone 800-344-6657, Email Info@Woodhaven.com or Chat.
