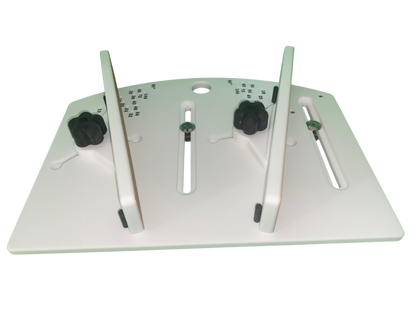

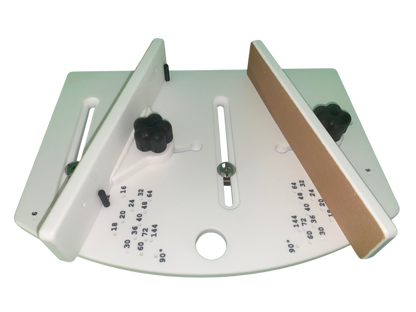

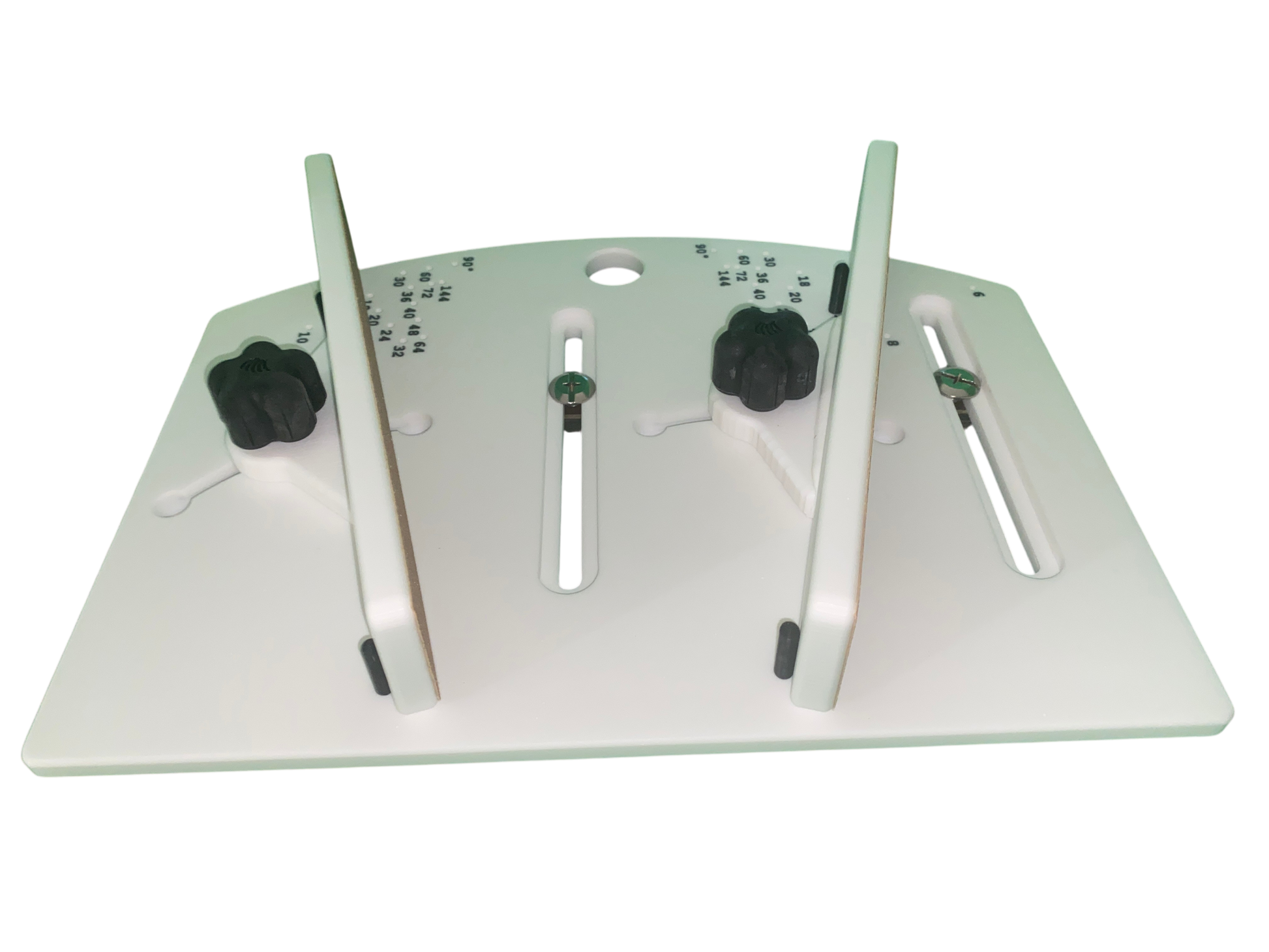

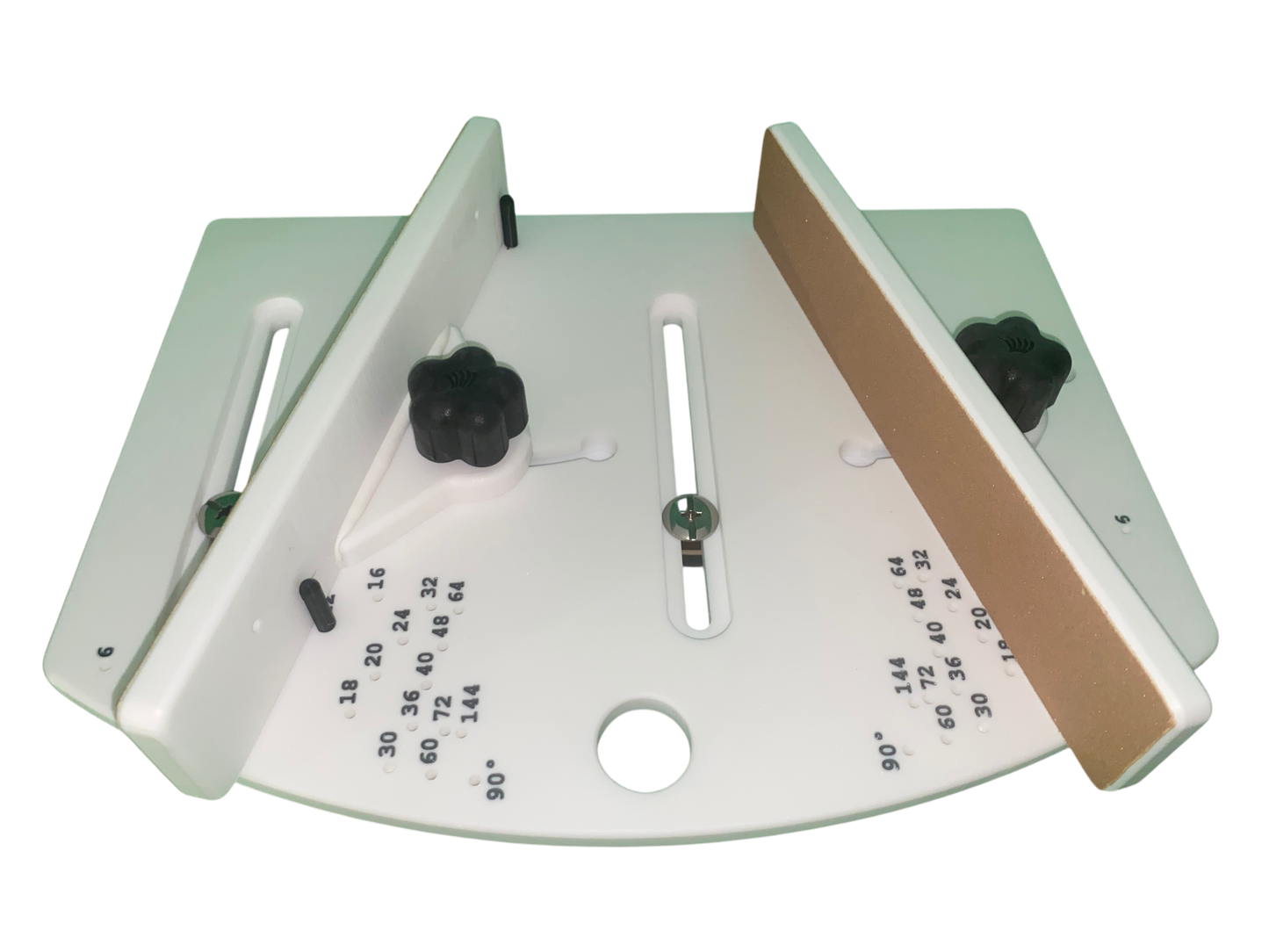

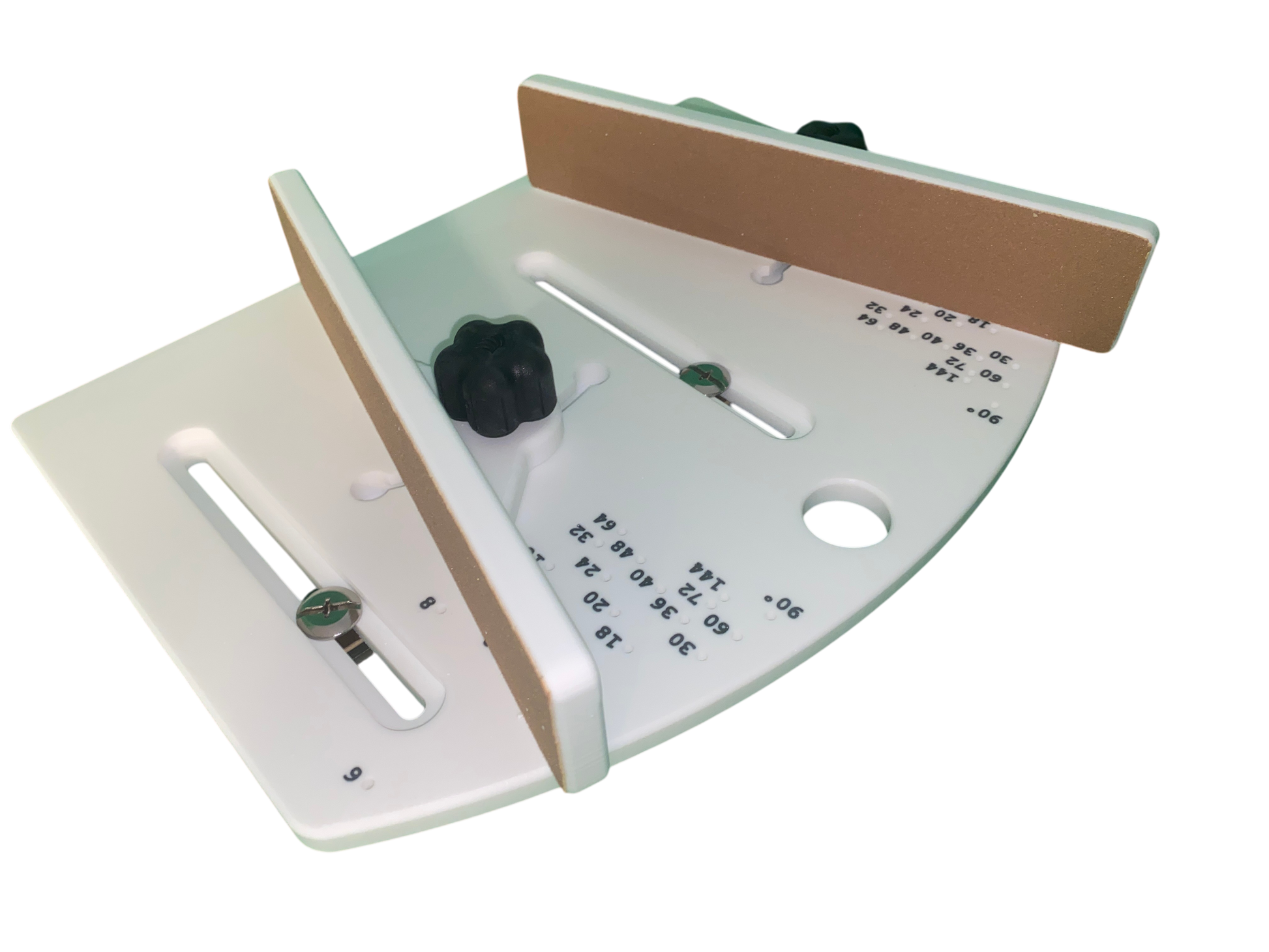

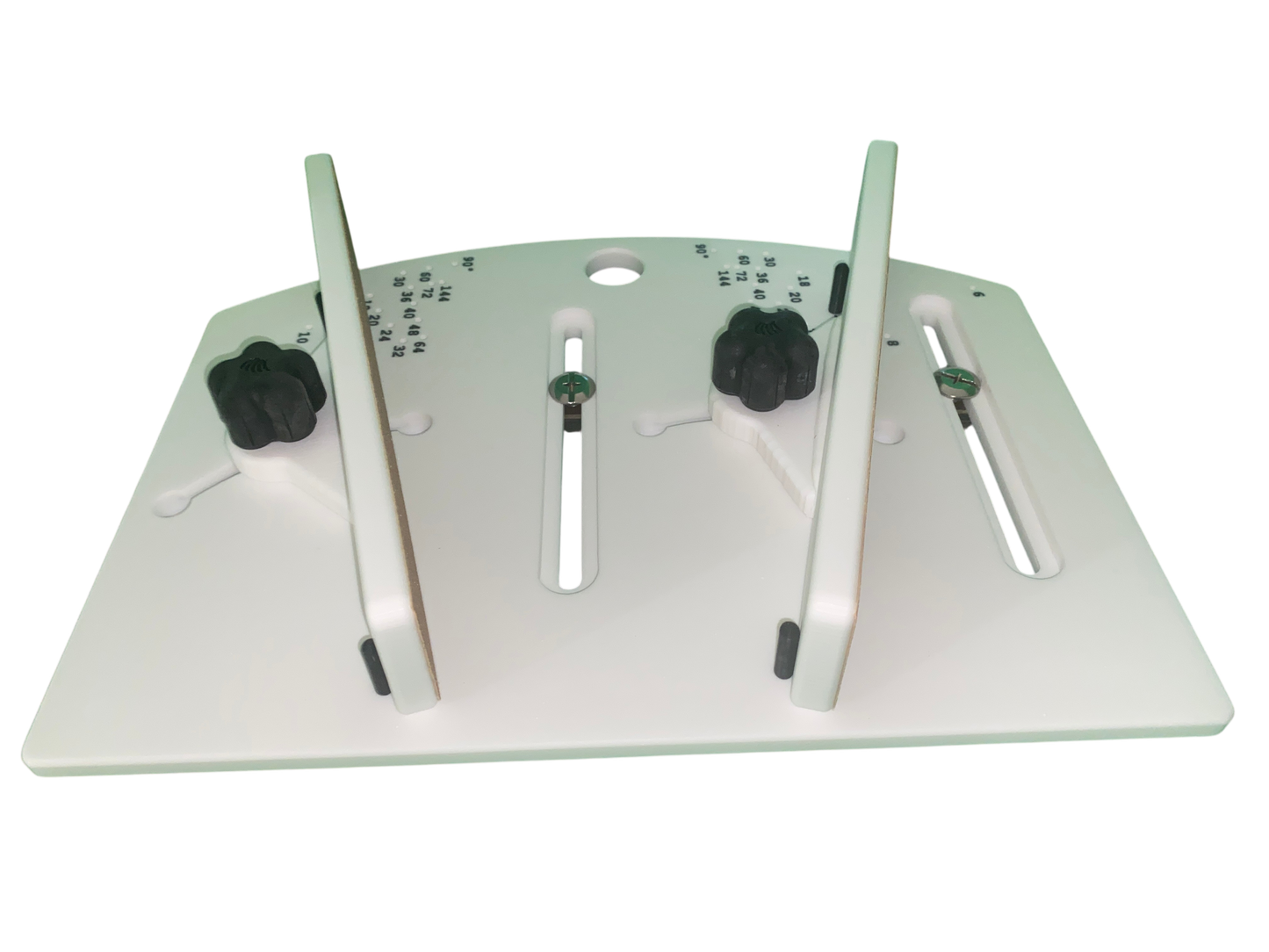

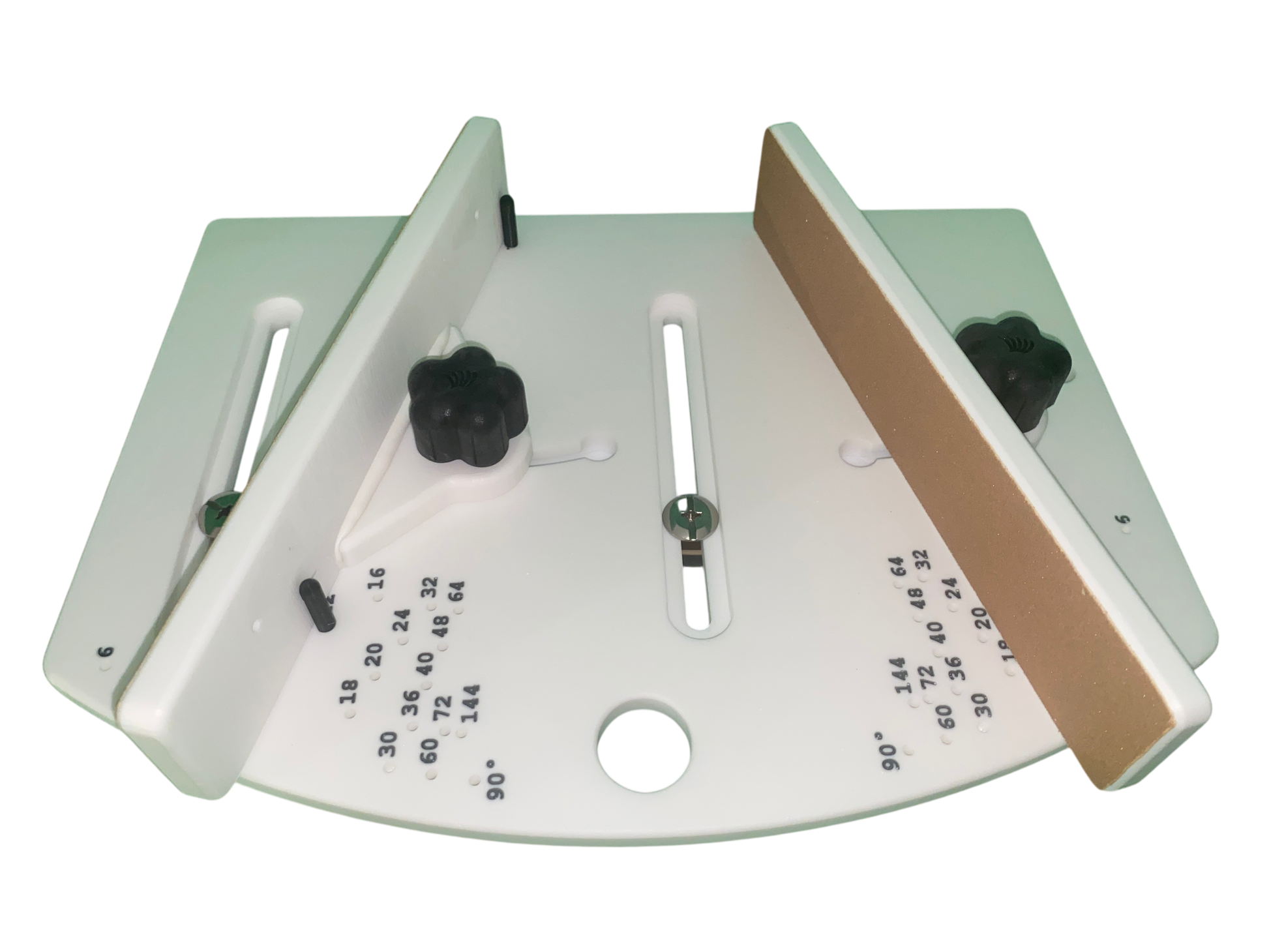

Wedge-Pro®PL Segmented Circle Cutting Sled

The Wedge-Pro® PL delivers professional-grade segmented cutting at an affordable price. Built from durable Corian® acrylic with manufactured two-piece fences, precision indexing, and a phenolic miter bar, it provides exceptional accuracy and value for woodturners looking for a straightforward segmenting solution.This listing is for the sled only.

1. Ships with miter bars that fit standard 3/4″ miter slots, however if your miter slot is smaller, the miter bar can easily be cut down using your table saw.
2. No setup blocks are necessary. The sled utilizes indexing holes for 6, 8, 10, 12, 16, 18, 20, 24, 30, 32, 36, 40, 48, 60, 72 and 144 segments, and also has an indexing hole at 90° so the sled can be used as a standard 90° miter fence.
3. The sled is designed for left-hand operation.
4. The adjustable fence has a non-slip face to prevent material slippage.
5. Includes an integrated spring-loaded clamp which provides hands-clear cutting and allows for utilization of the last few inches of the board.
6. Can handle cutting stock up to 2″ x 2″.
7. The sled is constructed using high quality Corian®, a very durable acrylic that will not damage blades with indirect contact.
8. All provided hardware is stainless steel and corrosion resistant.
9. The Wedge-Pro®PL fits a wide variety of table saws, but the dimension from the center of the miter bar slot to the edge of the blade must be between 2-1/2″ (64mm) & 7-3/4″ (196mm)
10. No need to create half rings as this sled creates perfect segments that create perfectly tight rings every time!

The optional material stop has been specially designed to work with the Wedge-Pro®PL cutting sled. Since the material stop needs to remain stationary during use, the miter bar utilizes two knobs and wedge bolts that can secure the bar in place. The material stop allows for segment lengths from 0″ – 3-1/2″ and has a built-in bearing allowing the material stop to be turned around and used as a thin-rip cutting jig.

This entry level single fence version is well suited to the beginner woodturner who is looking for a safer way to cut traditional segments. The Wedge-Pro®PL does not include the integrated handles, bridge, clamps, zero-clearance bed, or sweeper found on the Wedge-Pro® and Wedge-Pro® II. For those advanced safety-focused features, consider upgrading to the Wedge-Pro® or Wedge-Pro® II.

Compare Wedge-Pro® Sleds

Not sure which sled is right for you? The Wedge-Pro® PL focuses on affordability and professional construction, the Wedge-Pro® adds advanced safety features with a simple single-fence workflow, and the Wedge-Pro® II is our flagship model offering maximum safety, capability, and flexibility.

Sold By Woodhaven, built by Quality First Wood Products in Columbia, SC.
