526 Medium Coping Sled
526 Medium Coping Sled
Couldn't load pickup availability

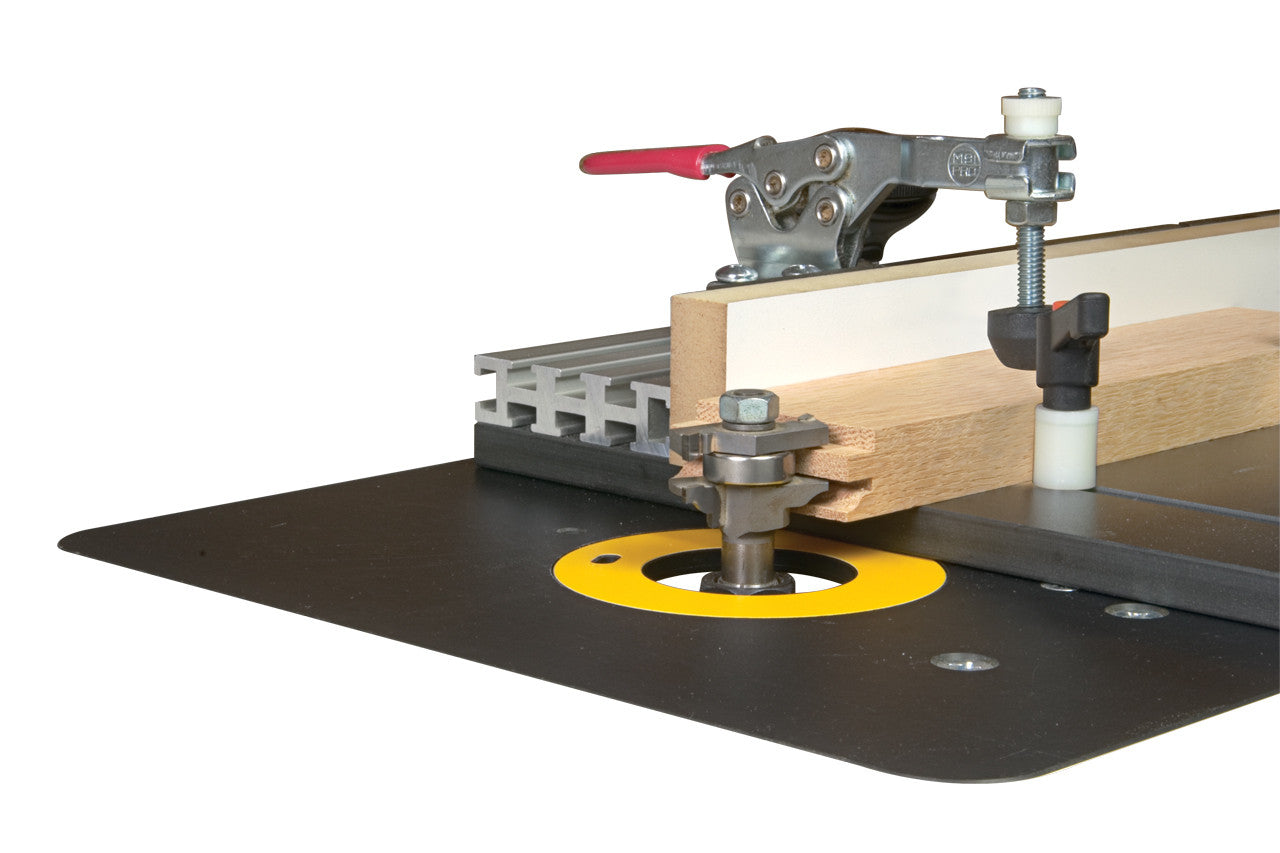

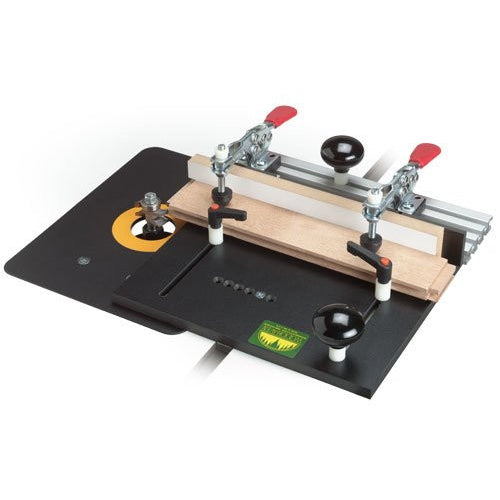

The Woodhaven Coping Sled is the safest and most accurate way to make cope cuts and other cross-cuts on a router table or shaper. Don't try to cope without it! Inboard Toggle Clamps can be positioned anywhere on the 12" long Ultra Track fence. Hold stock up to 1-3/4" thick, or 2-3/4" with optional 1" Riser Kit. Two adjustable feed handles provide firm control over the sled and your work. The optional 525S Flip Stop is a great assistance for repetitive work.
- Our medium Coping Sled works on both the router and shaper, either in the miter slot or against the fence.
- Includes an 11-3/4" long 3/4" wide adjustable steel miter bar that mounts in 6 different locations for best placement.
- Can also be used without the miter bar against your fence. 526 Medium Coping Sled holds stock up to 6" wide.

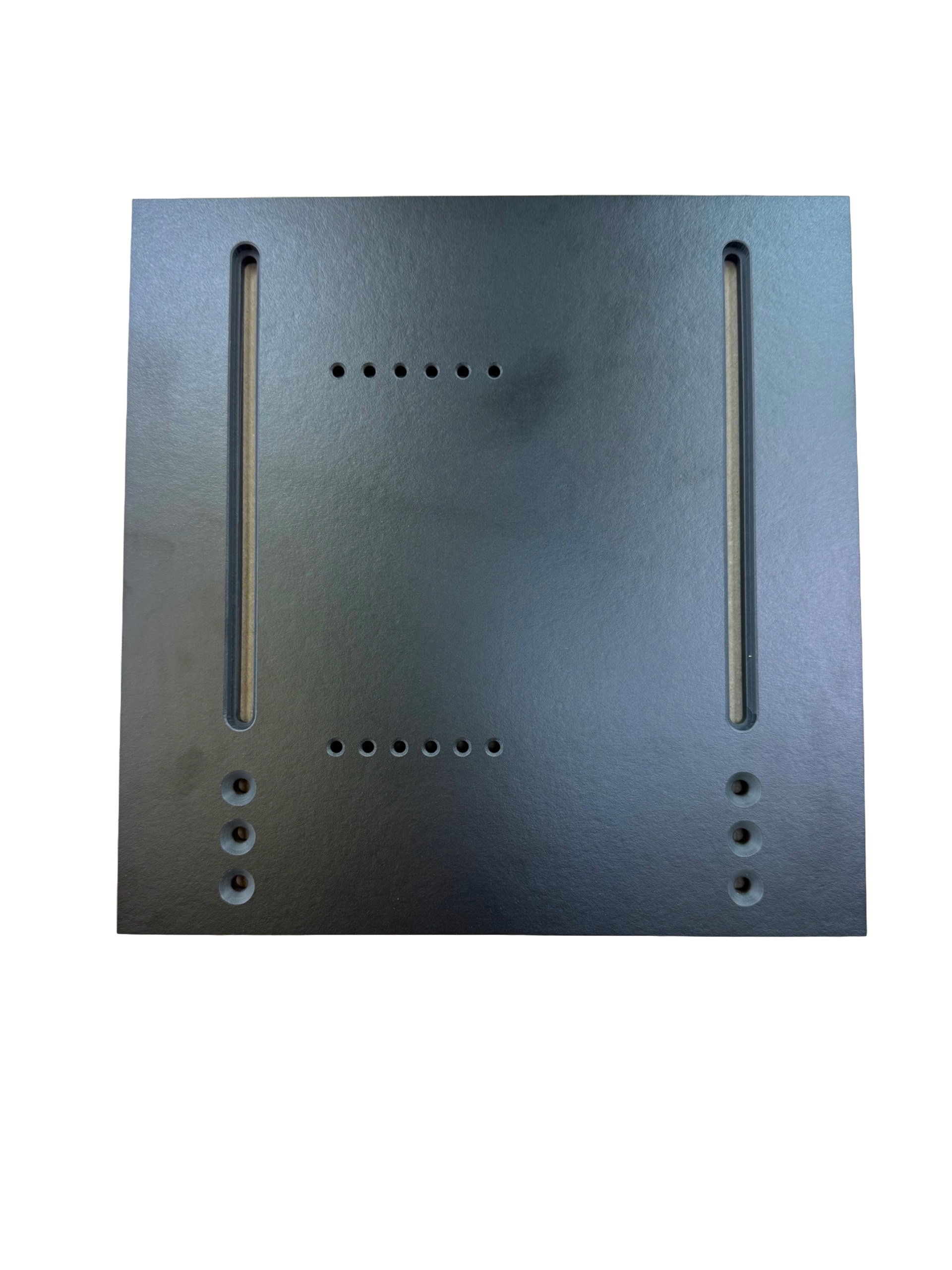

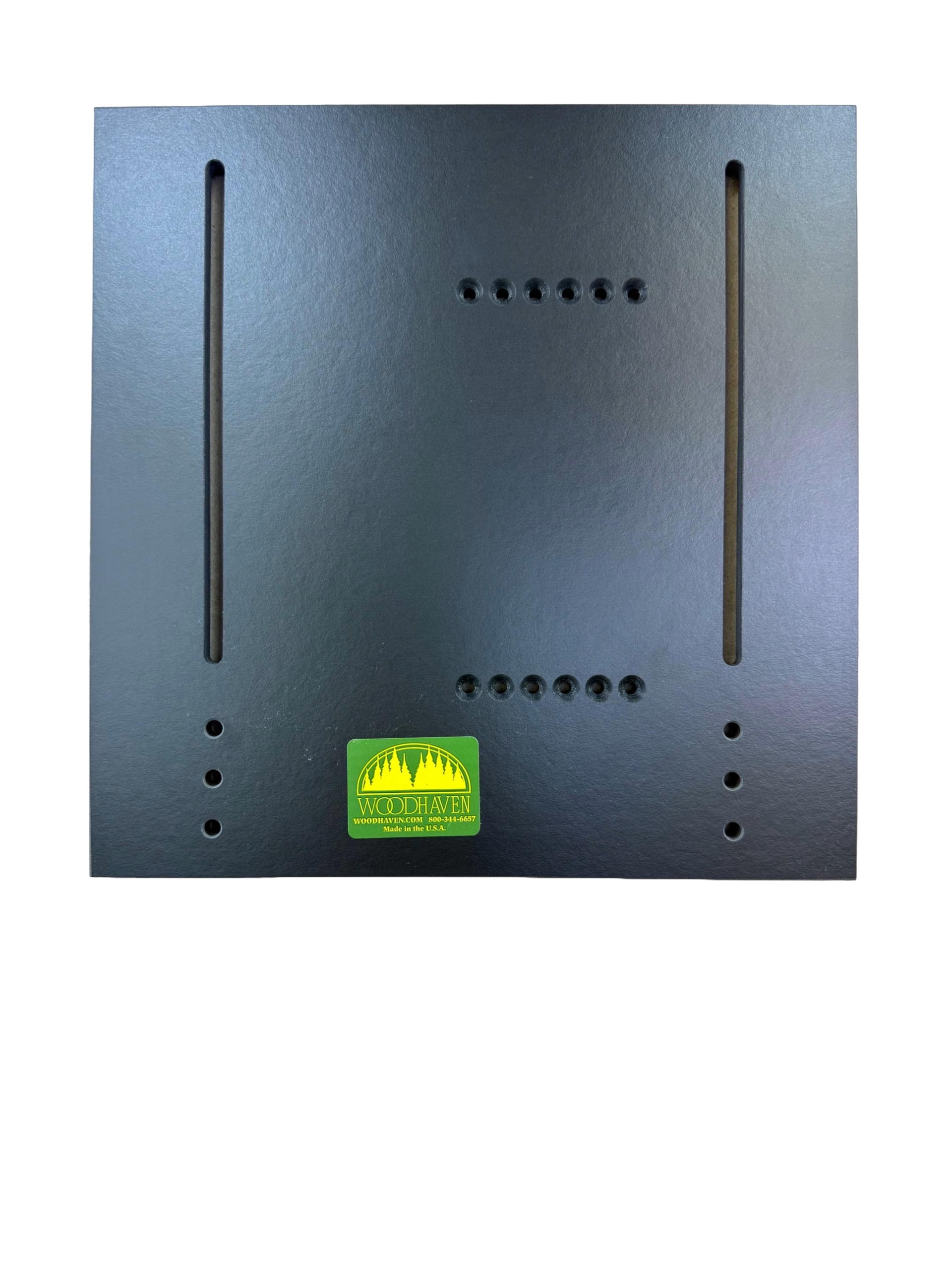

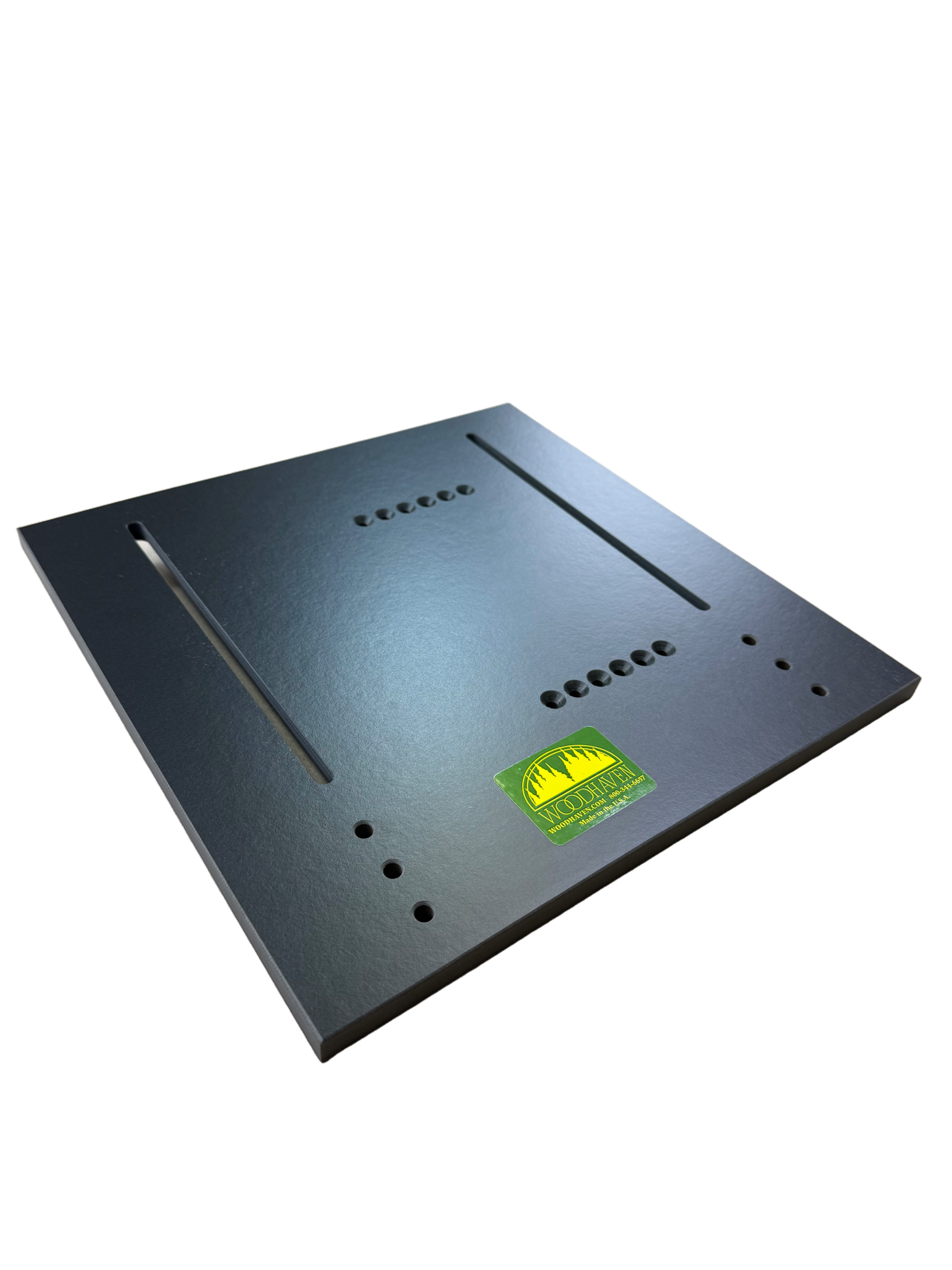

- Heavy duty 1/2" phenolic base (11-5/8") will not distort from clamp pressure. Features two 500 lb. Inboard Toggle Clamps to hold stock up to 1-3/4" thick.











Our products are made in the USA and include a Lifetime Guarantee against defects in material or workmanship. For product questions or a quote for shipping outside the continental US contact us by Phone 800-344-6657, Email Info@Woodhaven.com or Chat.
I am very happy with this jig. It was simple and straightforward to setup. I was a bit apprehensive about the miter bar being sloppy, but adjustors worked as they were designed to do. Excellent product!
Every thing fits like a glove on assembly great product
Easy to setup and works great. Had to countersink holes for miter bar a little more but only problem I encountered
safely and securely holds work
Great quality, extra assembly options and parts.
